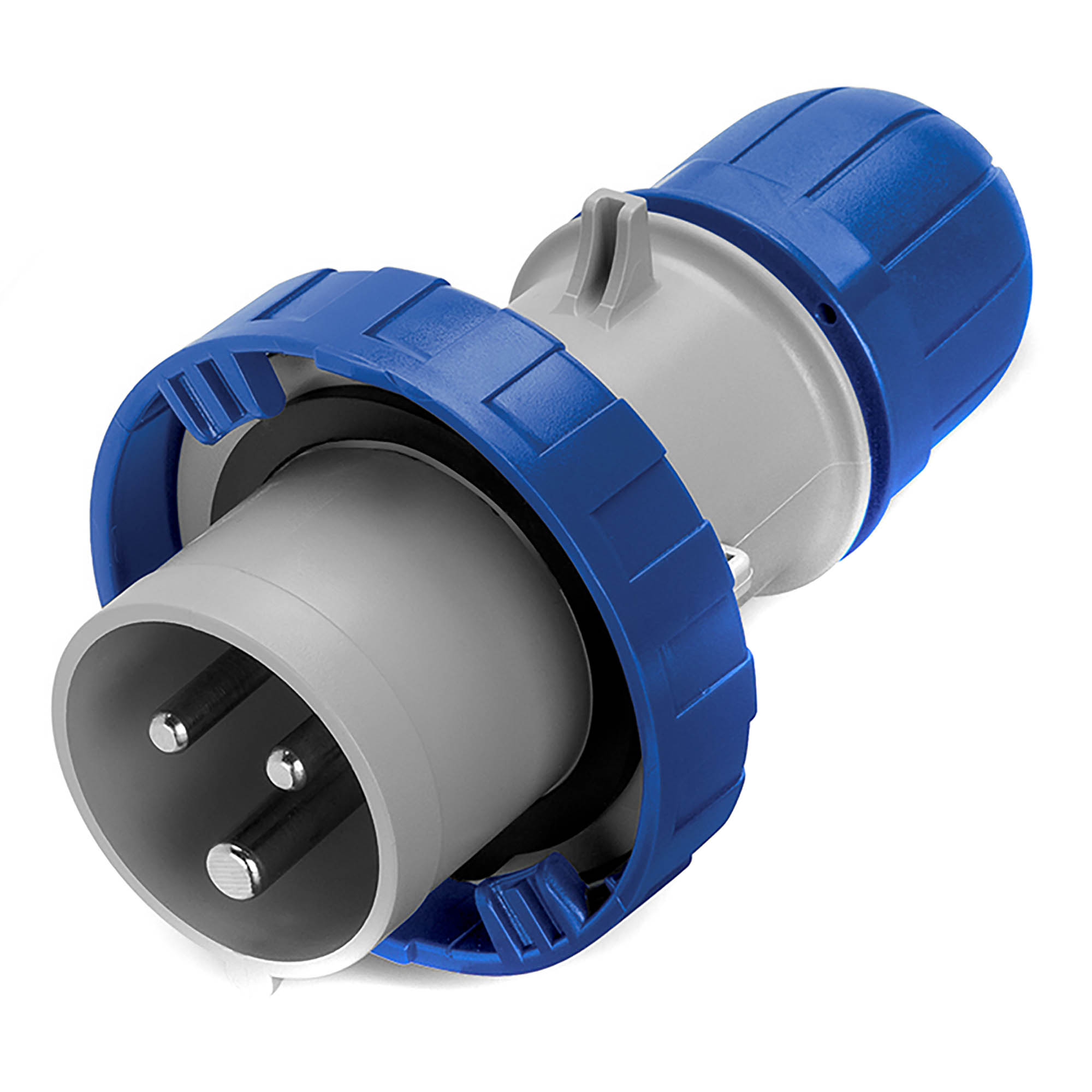

Cable plug screwless IP67 32A 2P+E 230V

Code: DIS2183233F
Temperature of operation, °C 60
Shock resistance, J 5
Width, mm 93
Height, mm 162
Depth, mm 162
Lockable No
With hinged lid No
With socket outlet No
Number of phases 1
With child-protection No
Frequency, Hz 50
Cable entry Gland nut
Extension possible No
With transparent cover No
Switch-off function No
Fault current protection No
Number of poles 3
Contact less detection of the sense of rotation No
Material Plastic
IEC-amperage, A 32
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Degree of protection (IP) IP67
Total number of groups 1
Clock hour position, h 6
Identification colour Blue
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue
Width of device, mm 93
Height of device, mm 162
Depth of device, mm 162
Angle of plug Straight
Connection system Screw less terminal

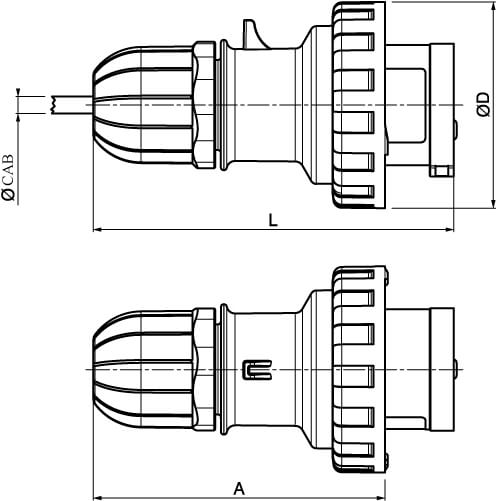

Drawings
Seria Name Eplan DWG
Quadro - industrial plugs
Quadro - industrial plugs
