Temperature of operation, °C 60
Shock resistance, J 5
Width, mm 93
Height, mm 162
Depth, mm 162
Lockable No
With hinged lid No
With socket outlet No
Number of phases 1
With child-protection No
Frequency, Hz 50
Cable entry Gland nut
Extension possible No
With transparent cover No
Switch-off function No
Fault current protection No
Number of poles 3
Contact less detection of the sense of rotation No
Material Plastic
IEC-amperage, A 32
For heavy conditions (in accordance with VDE) No
Phase inverter No
Empty locations on mounting rail No
Number of height units 1
With earth leakage switch No
Degree of protection (IP) IP67
Total number of groups 1
Clock hour position, h 6
Identification colour Blue
Voltage acc. EN 60309-2 230 V (50+60 Hz) blue
Width of device, mm 93
Height of device, mm 162
Depth of device, mm 162
Angle of plug Straight
Connection system Screwed terminal
Accessories
Enclosure 70x87
Code: DIS5700016
FRAME  1130x1000
Code: DIS661002
FRAME  1750x1000
Code: DIS661003
FRAME  2160x1000
Code: DIS661004
Enclosure 70x87. Angled.
Code: DIS5700116
Flush mounting box 136x125
Code: DIS5720200
No name
Code: DIS5720205
Cover for box M95.
Code: DIS137151
Blind flange 136x125
Code: DIS6540120

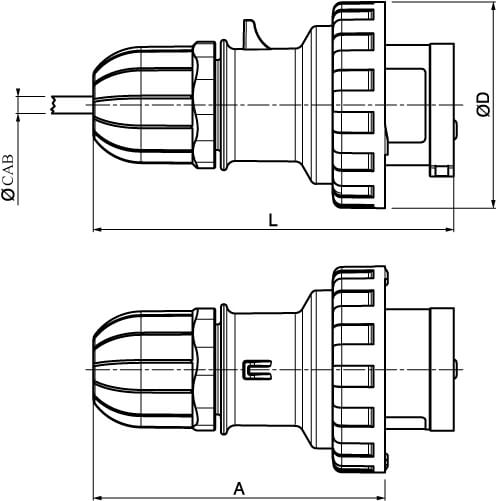

Drawings
Seria Name Eplan DWG
