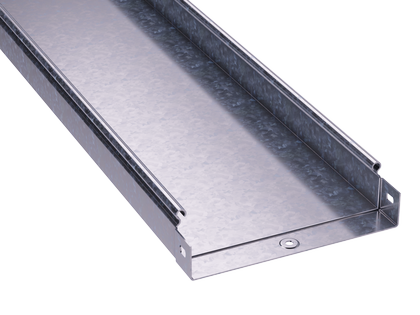

Non Perforated Straight Element 400х50 L3000 thick1,5 mm

Code: 3502615

Non Perforated Straight Element 400х50 L3000 thick1,5 mm

Code: 3502615
Colour Light grey
Width, mm 400
Model Without connector
Height, mm 50
Surface protection Sendzimir galvanized
Material thickness, mm 1.5
Side wall perforation Yes
Material quality Steel
Length, mm 3000
Material Steel
Mounting perforation in bottom Yes
Useful cross section, mm² 19600
Wide span model Yes
Suitable for circuit integrity Yes
Product type Non perforated Straight Element
Length 3000 mm
Width 400 mm
Height 50 mm
Type Metal sheet trays - " S5 Combitech"
Thickness 1.5 mm
Material Pre-galvanized steel
Accessories
Analogs

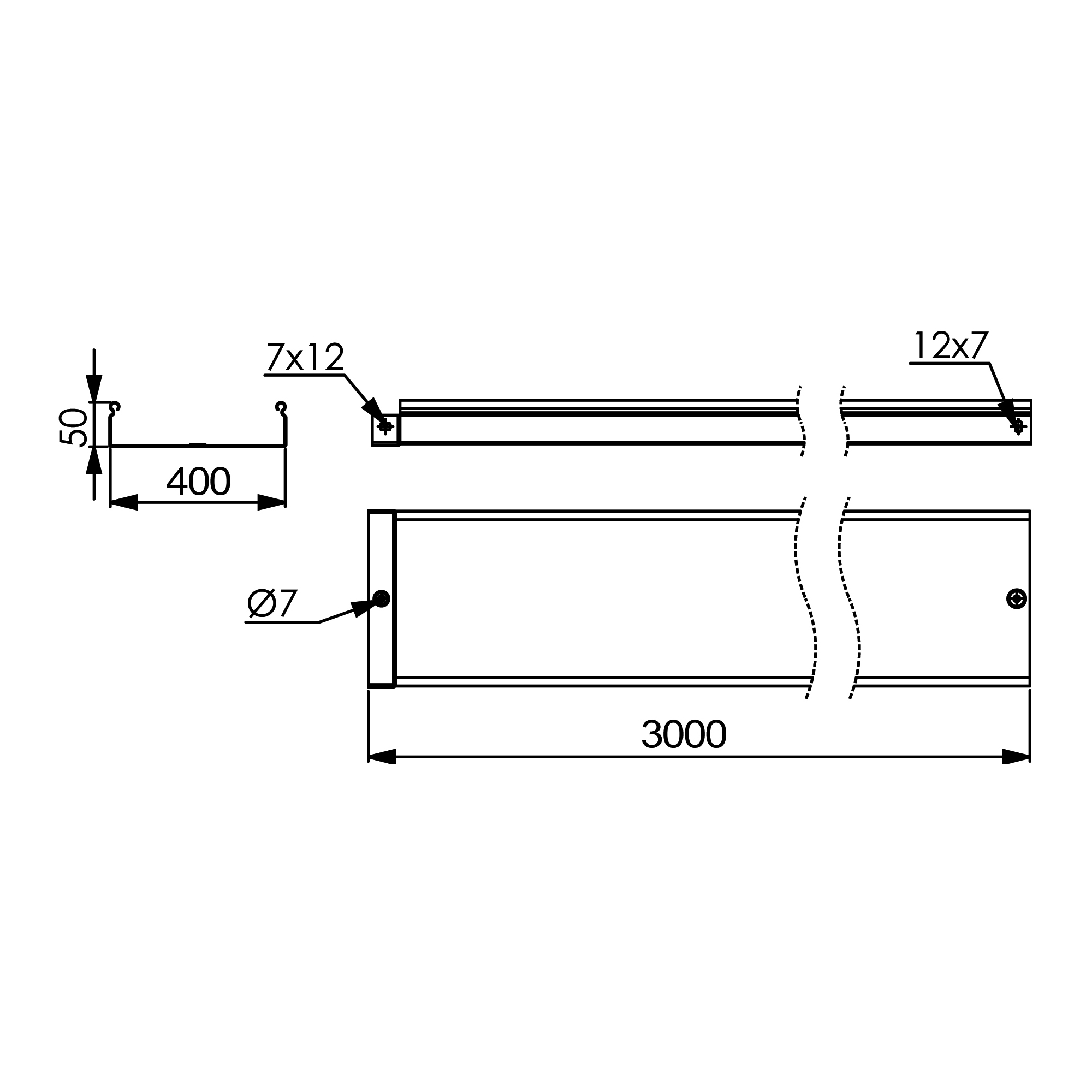

Drawings
Seria Name AVEVA DWG (dynamic.) Autodesk Revit Intergraph SAT STEP
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Certificates
Name Document
