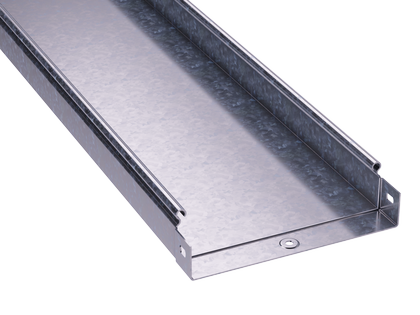

Non Perforated Straight Element 300х50 L3000 thick1,5 mm

Code: 3502515

Non Perforated Straight Element 300х50 L3000 thick1,5 mm

Code: 3502515
Colour Light grey
Width, mm 300
Model Without connector
Height, mm 50
Surface protection Sendzimir galvanized
Material thickness, mm 1.5
Side wall perforation Yes
Material quality Steel
Length, mm 3000
Material Steel
Mounting perforation in bottom Yes
Useful cross section, mm² 14700
Wide span model Yes
Suitable for circuit integrity Yes
Product type Non perforated Straight Element
Length 3000 mm
Width 300 mm
Height 50 mm
Type Metal sheet trays - " S5 Combitech"
Thickness 1.5 mm
Material Pre-galvanized steel
Accessories
Analogs

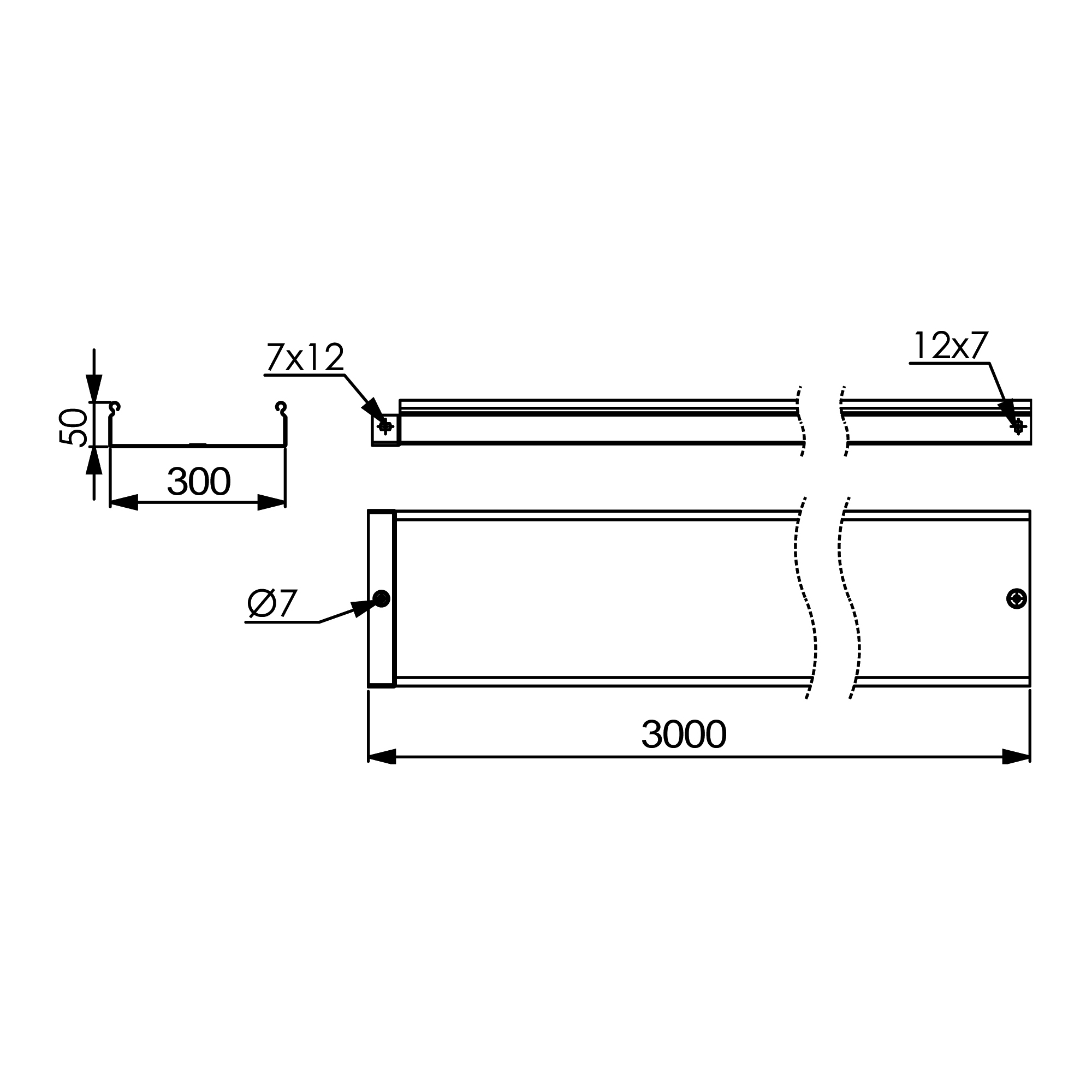

Drawings
