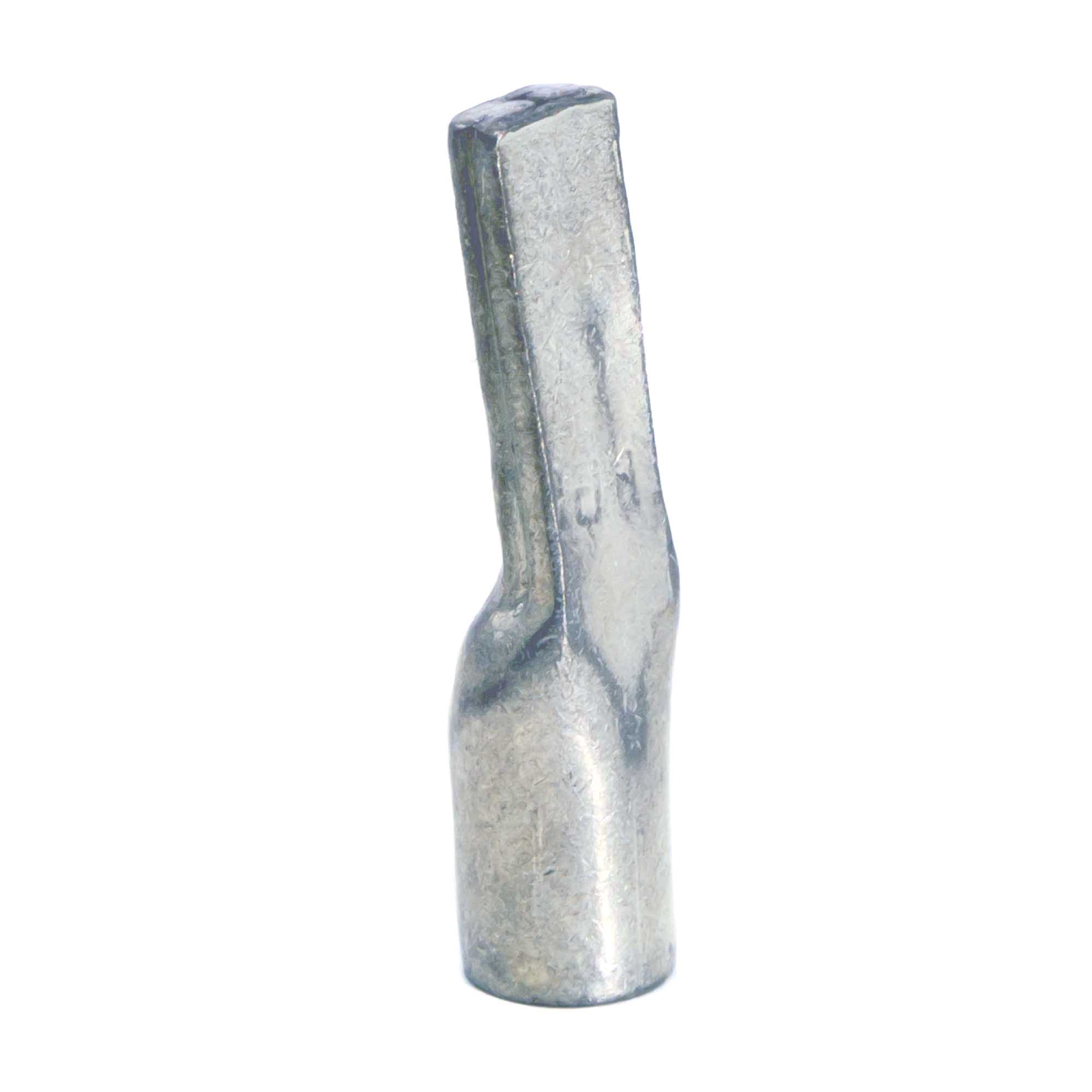

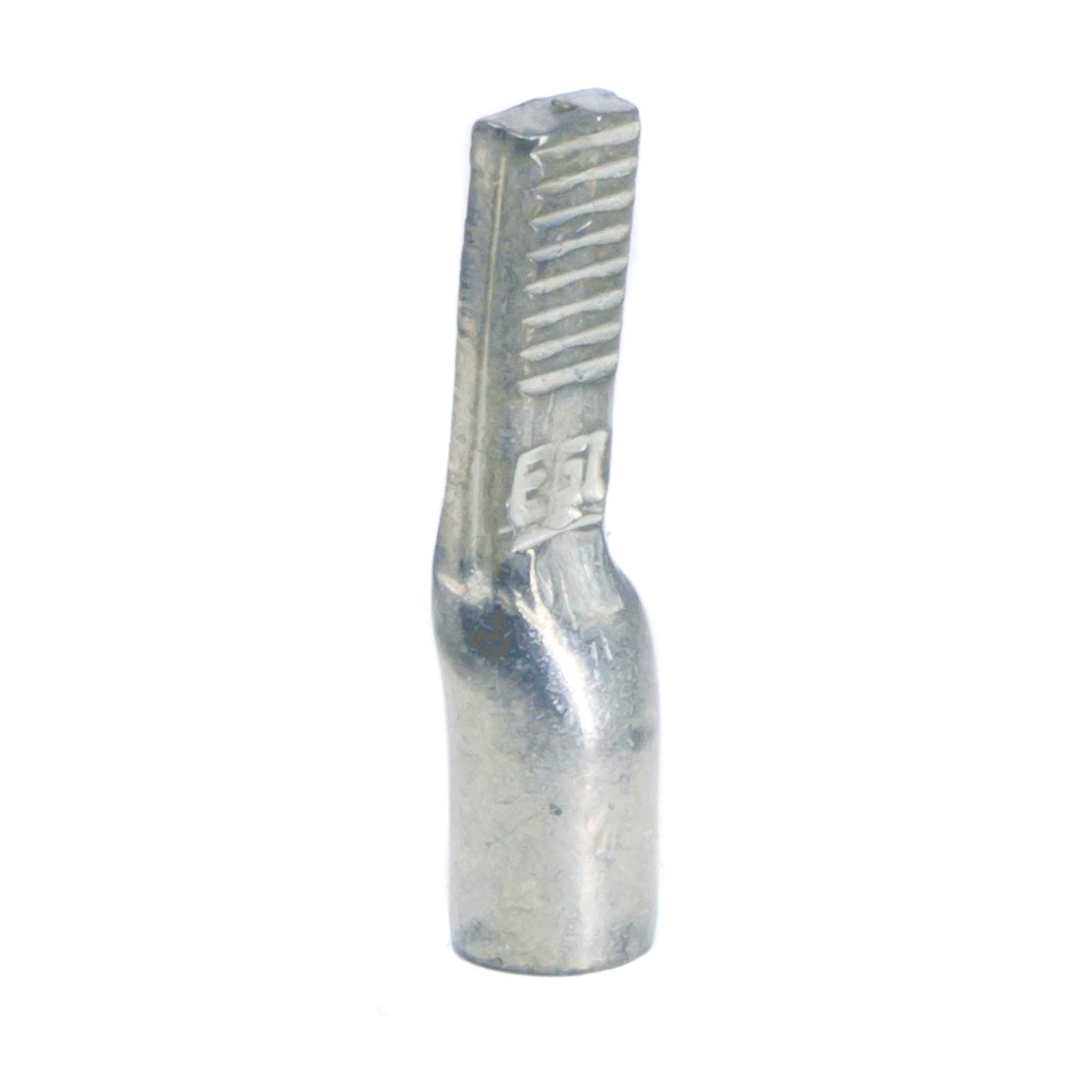

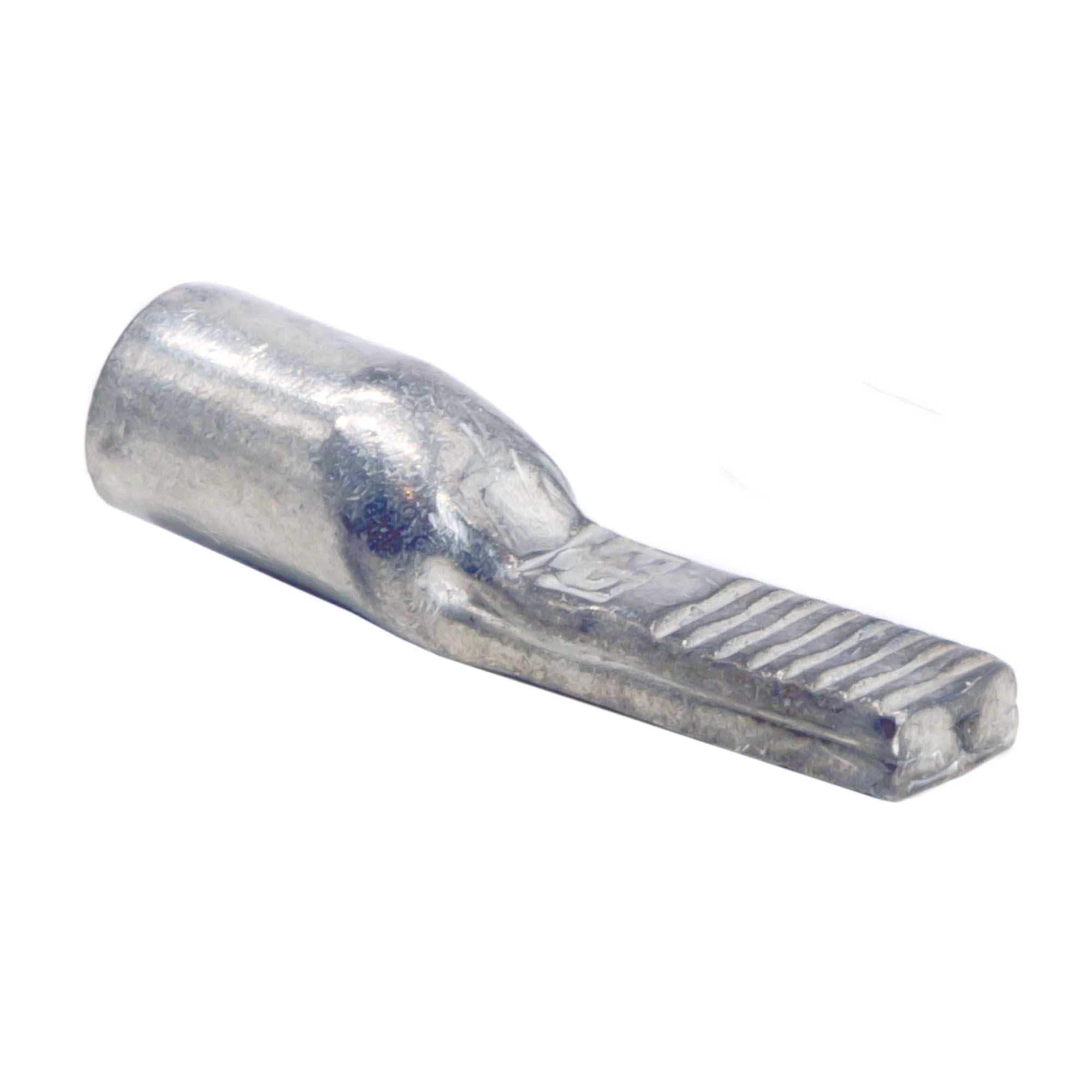

Flat pin terminals 50 mm² 10х20mm

Code: 2H1
Flat pin terminals 50 mm² 10х20mm
Flat pin terminals 50 mm² 10х20mm

Flat pin terminals 50 mm² 10х20mm

Code: 2H1
Surface protection Tinned
Flange shape Pin shape
Material Copper
Nominal cross section, mm² 50...50
Colour insulation Grey
Insulation Not isolated
Flange shape Pin form
Product type Non insulated terminals
nominal cross section 50 mm²
Accessories
Drawings
Seria Name Eplan
Cable terminals -"Quadro"
The System "Quadro"
RAR
27.23 Mb
Certificates
Name Document
Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1
PDF
1.30 MB
"Quadro"_cable lugs_EGI_1
PDF
4.29 MB
Declaration of conformity to TR TS 004/2011 for pre-insulated spade terminals
PDF
1.36 MB
Declaration of conformity to TR TS 004/2011 for pre-insulated spade terminals_1
PDF
2.65 MB
