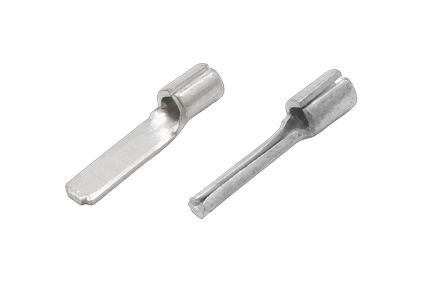

Round pin terminals

Code	Name
2A1	Round pin terminals 0,25-1,5mm² 1,7х11,5mm
2A11	Flat pin terminals 0,25-1,5mm² 3х12mm
2A11L	Flat pin terminals 0,25-1,5mm² 2,5х17mm
2A1C	Round pin terminals 0,25-1,5mm² 1,7х9mm
2B1	Round pin terminals 1,5-2,5mm² 1,8х11mm
2B11	Flat pin terminals 1,5-2,5mm² 3х13mm
2B11L	Flat pin terminals 1,5-2,5mm² 2,5х17mm
2B1C	Round pin terminals 1,5-2,5mm² 1,8х7mm
2C1	Round pin terminals 2,5-6mm² 2,6х13mm
2C11	Flat pin terminals 2,5-6mm² 3,9х13mm

Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1 (1 MB)

Declaration of conformity to TR TS 004/2011 for pre-insulated spade terminals (1 MB)

Declaration of conformity to TR TS 004/2011 for pre-insulated spade terminals_1 (3 MB)

Enclosures and accessories

Photoblog Enclosures and accessories

Photoblog Enclosures and accessories

Photoblog Enclosures and accessories

Photoblog Enclosures and accessories

Seria	Name	Eplan
Quadro - cable terminals	The System "Quadro"	Link
