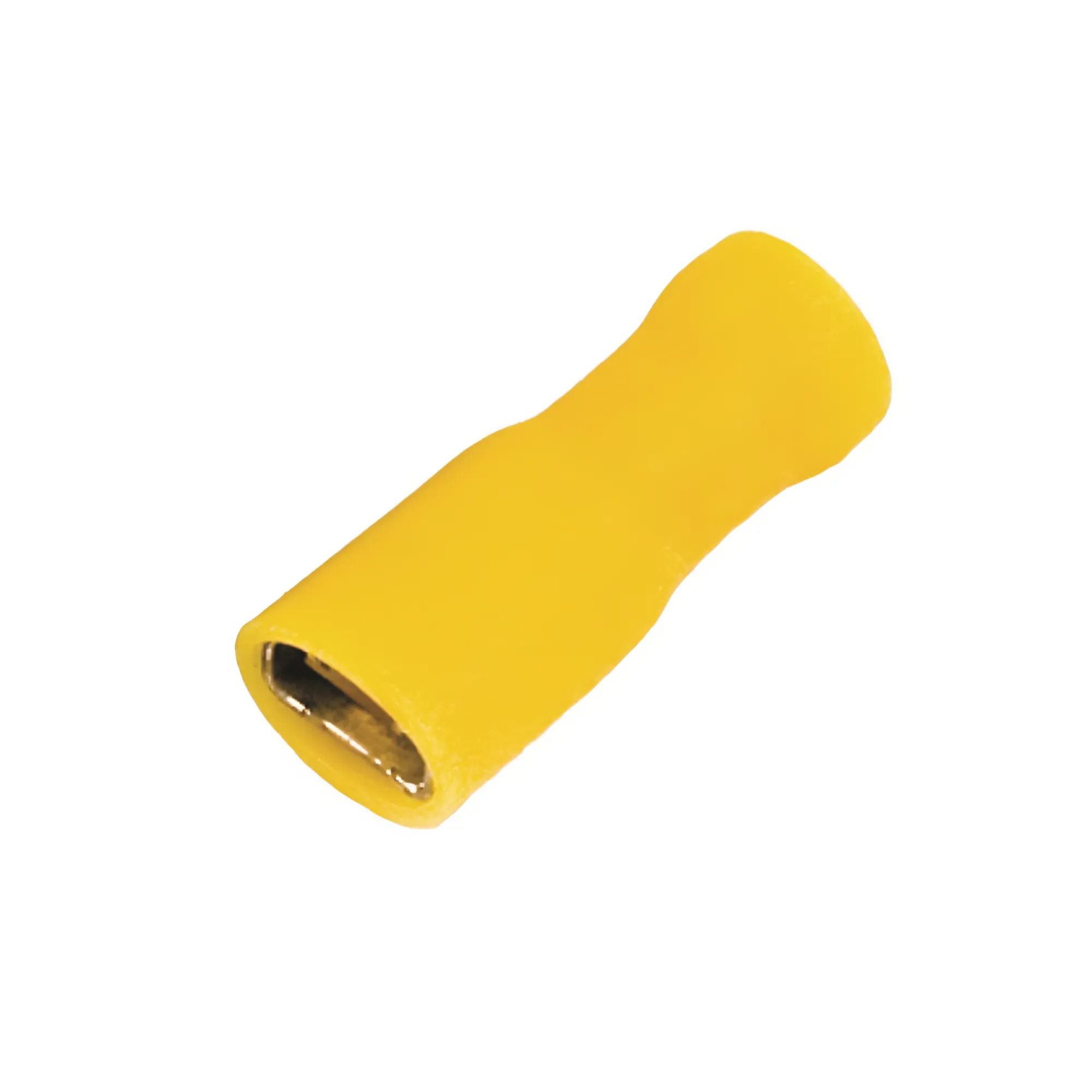

Pre-insulated female quick-connect terminals, 2,5-6mm² 6,3х0,8mm.

Code: 2C02TP
Pre-insulated female quick-connect terminals, 2,5-6mm² 6,3х0,8mm.
Pre-insulated female quick-connect terminals, 2,5-6mm² 6,3х0,8mm.
Color gray
Material Brass
Width, mm 7.8
Length, mm 26
Material Copper
Model Sleeve
Insulation Fully isolated
Colour insulation Yellow
Plug dimensions Flat 6.3x0.8 mm
Nominal cross section, mm² 2.5...6
Material insulation PVC
