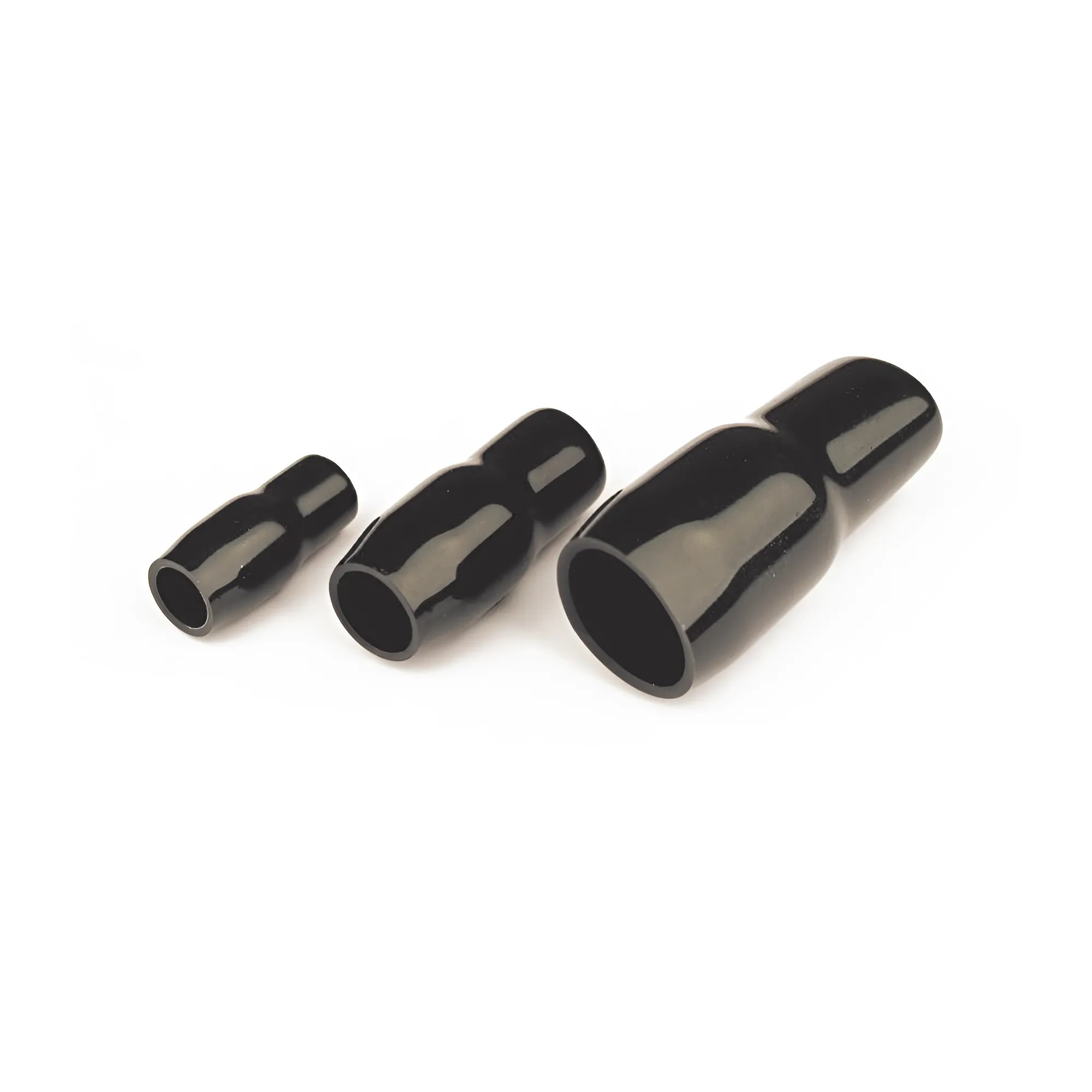

Insulator for terminals, 630mm²

Code: 2PT

Colour	Black
Heat-resistant	Yes

Inner diameter, mm	630
Stretch sleeve	No

Color

Black

Raw material

PVC
