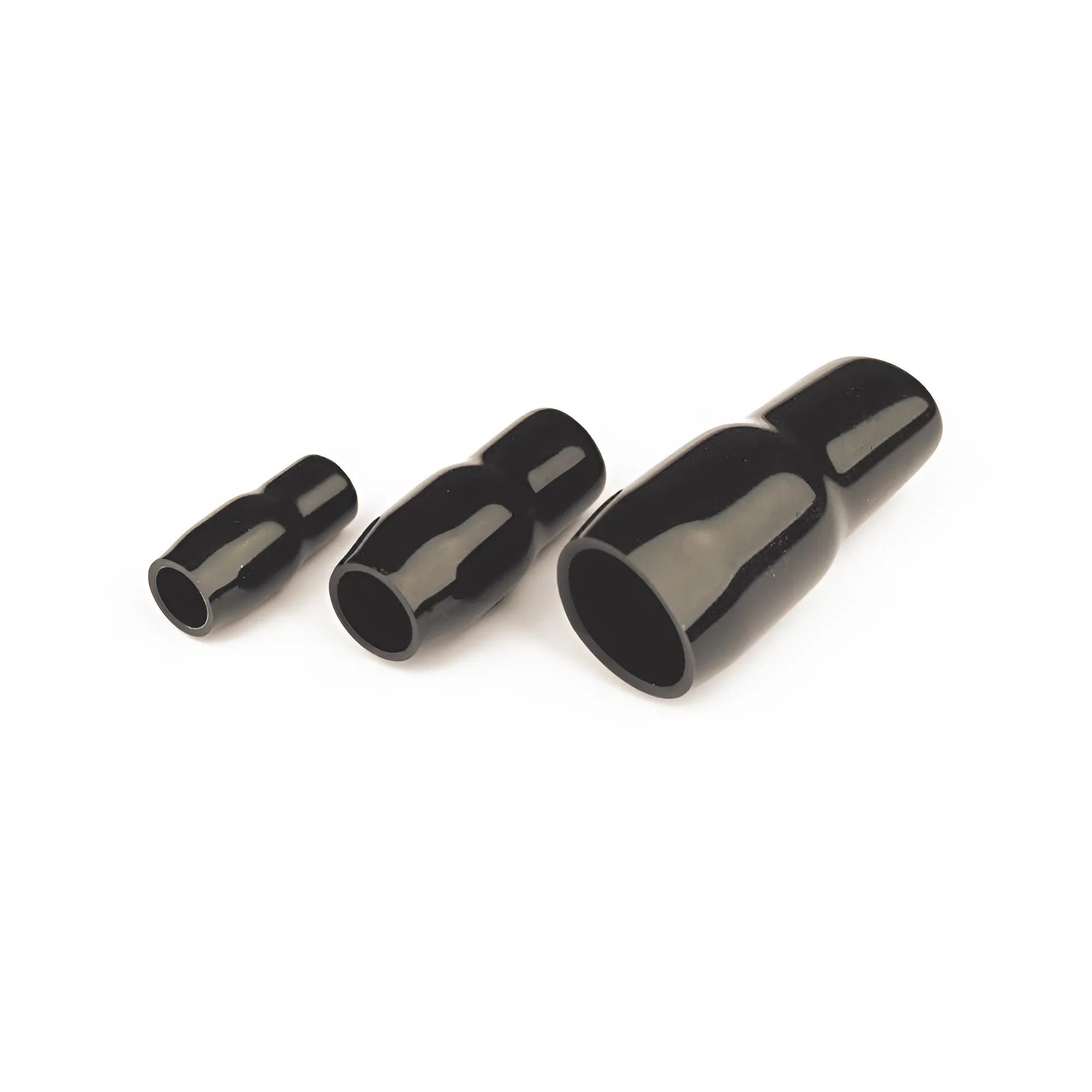

Insulator for terminals, 500mm²

Code: 2PS

Colour	Black
Heat-resistant	Yes

Inner diameter, mm	500
Stretch sleeve	No

Color

Black

Raw material

PVC
