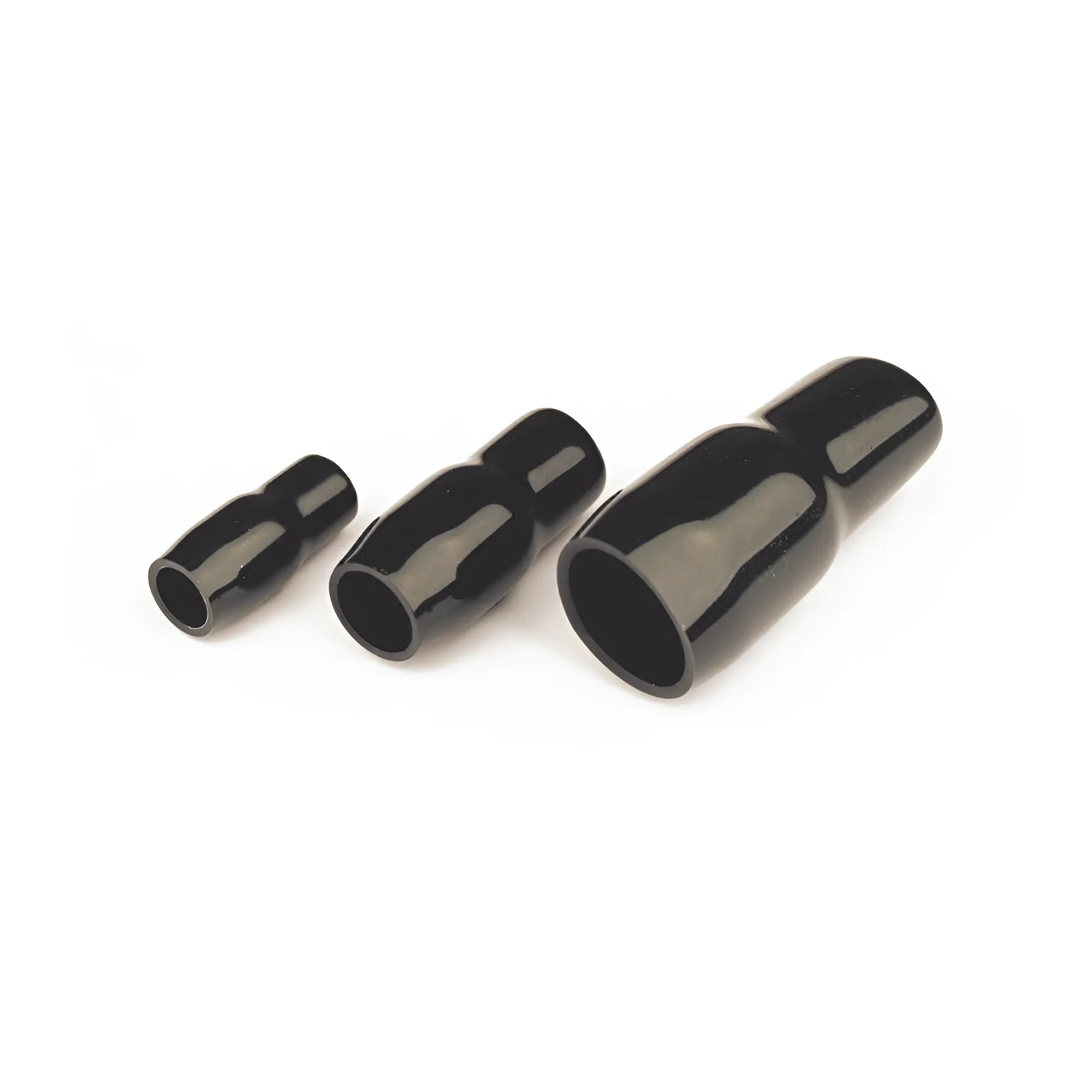

Insulator for terminals, 300mm²

Code: 2PQ

Colour	Black
Heat-resistant	Yes

Inner diameter, mm	300
Stretch sleeve	No

Color

Black

Raw material

PVC
