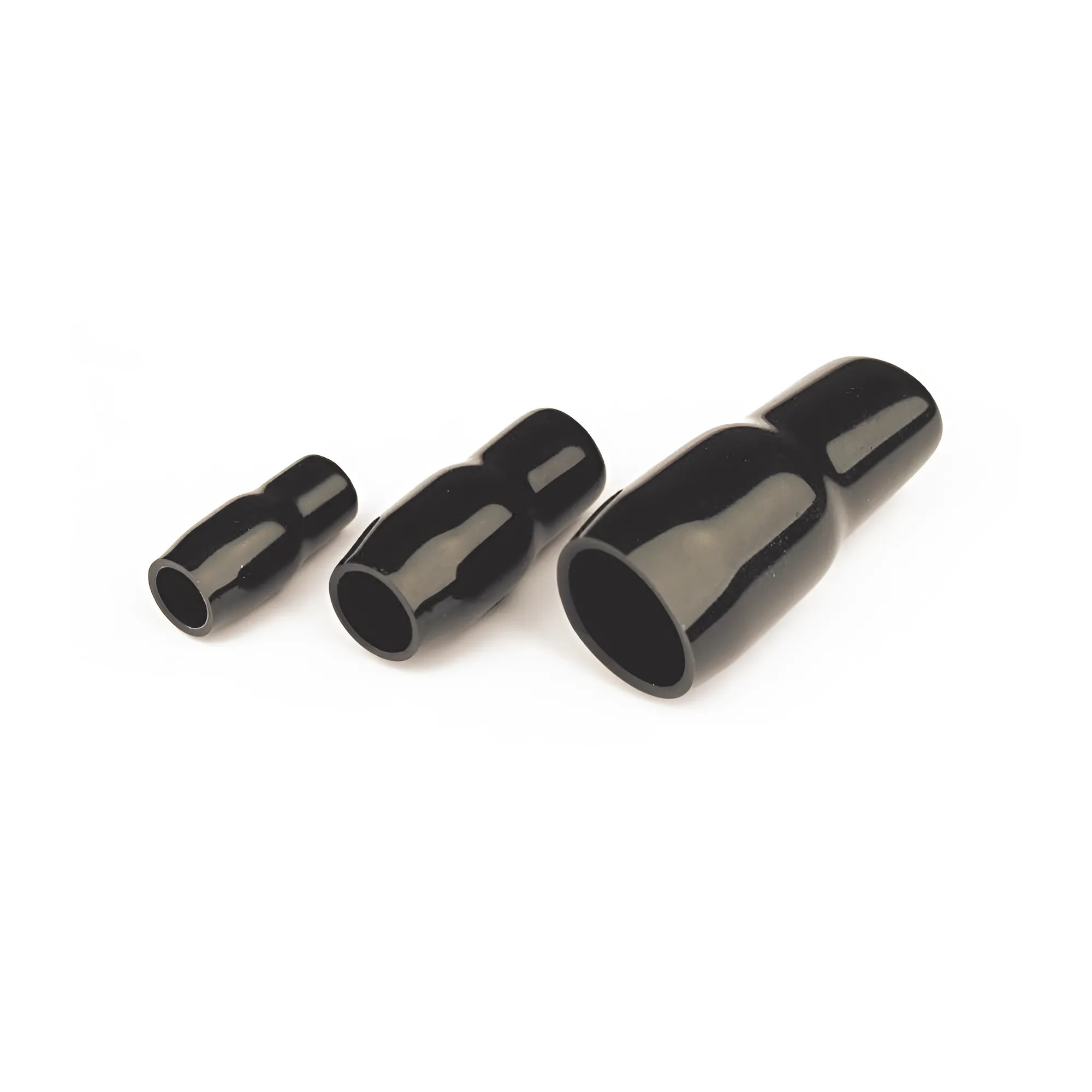

Insulator for terminals, 240mm²

Code: 2PP

Colour	Black
Heat-resistant	Yes

Inner diameter, mm	240
Stretch sleeve	No

Color

Black

Raw material

PVC
