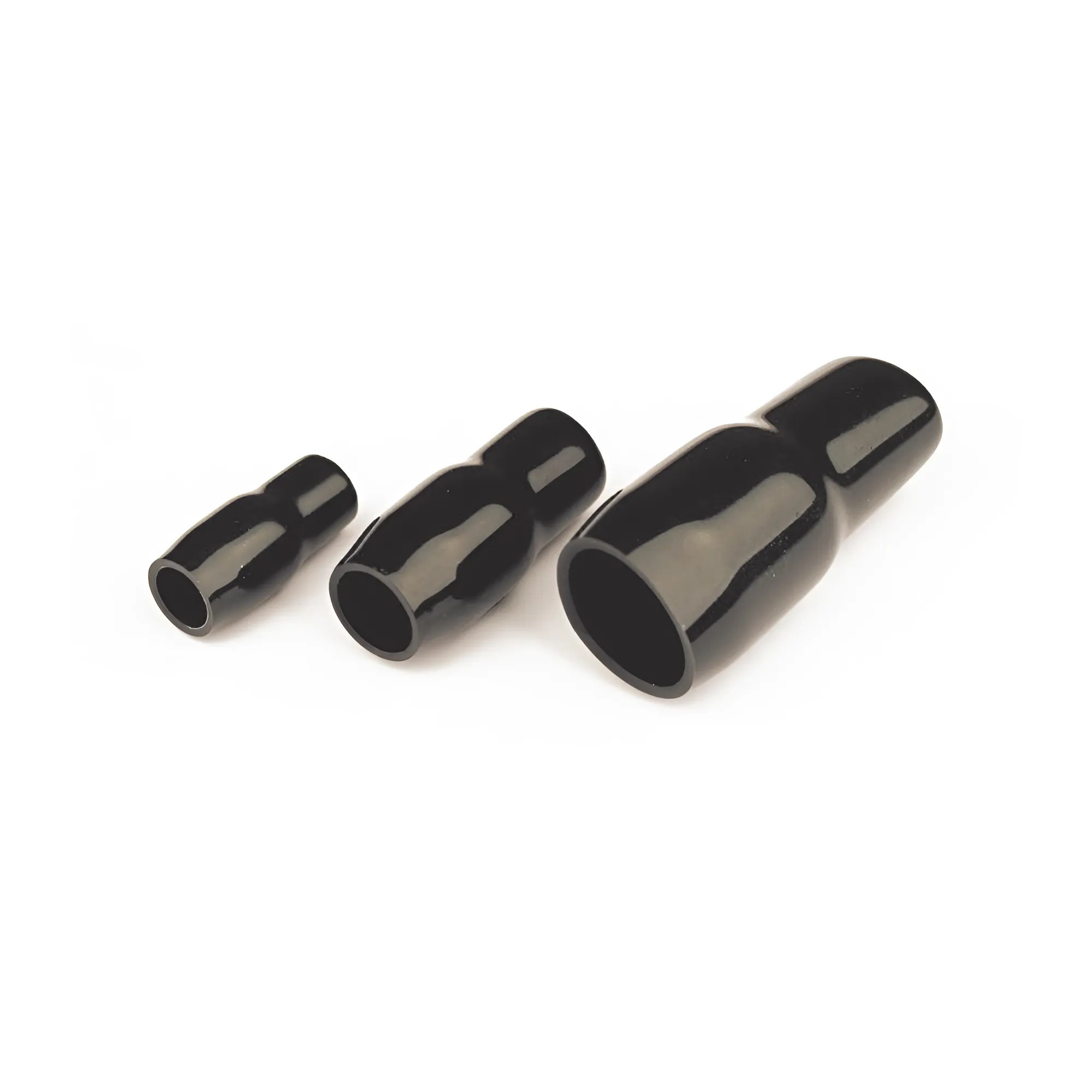

Insulator for terminals, 185mm²

Code: 2PO

Colour	Black
Heat-resistant	Yes

Inner diameter, mm	185
Stretch sleeve	No

Color

Black

Raw material

PVC
