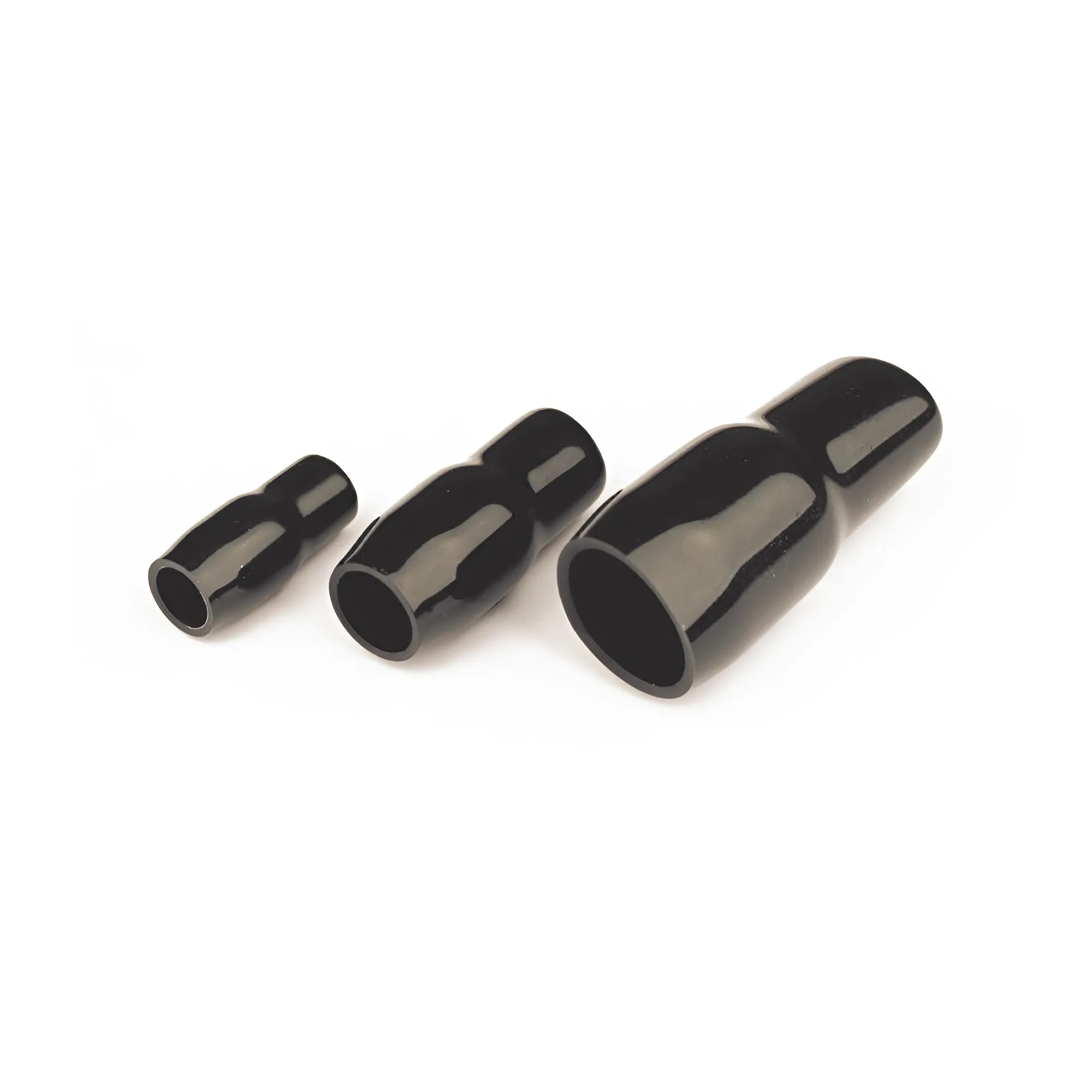

Insulator for terminals, 150mm²

Code: 2PN

Colour	Black
Heat-resistant	Yes

Inner diameter, mm	150
Stretch sleeve	No

Color

Black

Raw material

PVC
