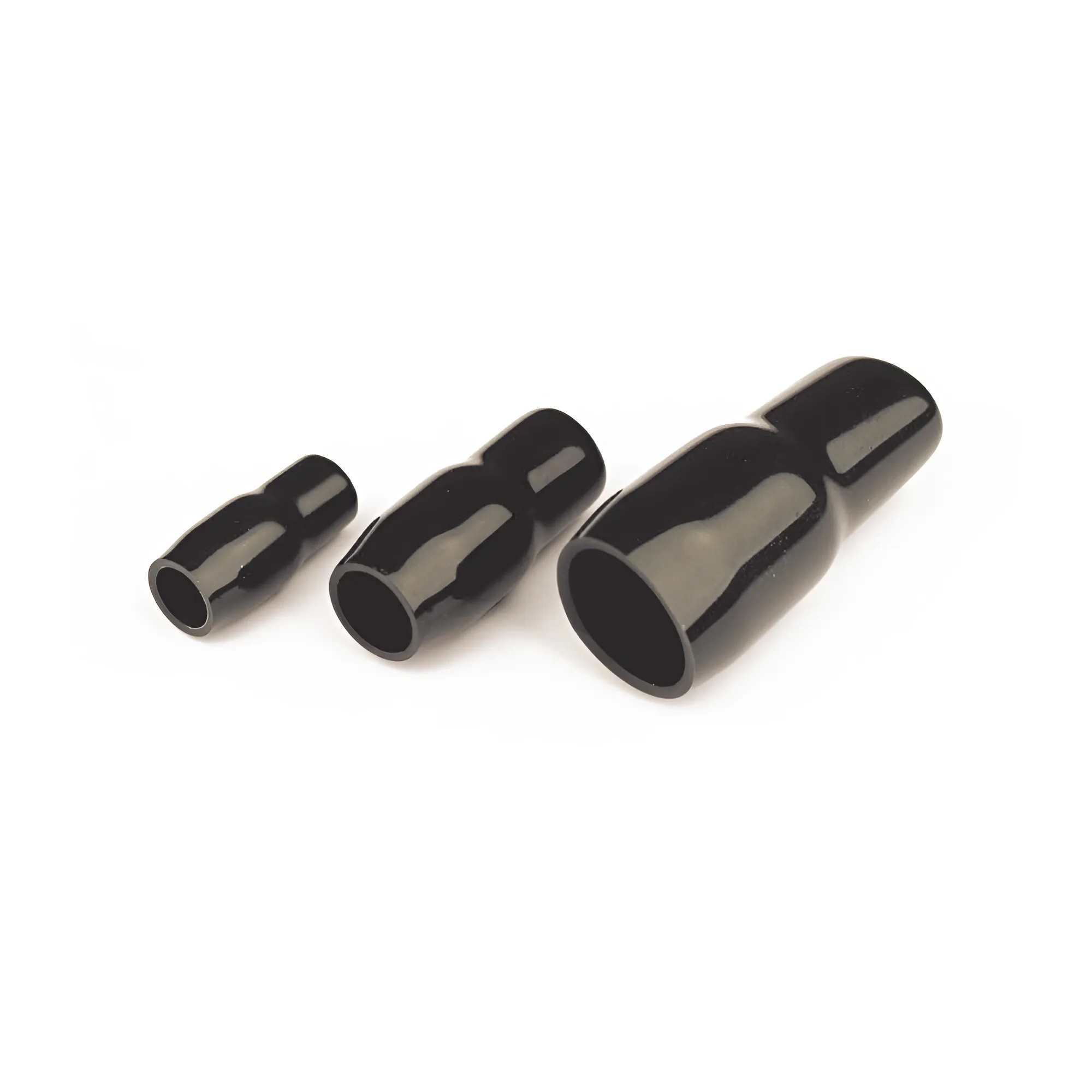

Insulator for terminals, 50mm²

Code: 2PH

To ask a question

Colour	Black
Heat-resistant	Yes

Inner diameter, mm	50
Stretch sleeve	No

Color

Black

Raw material

PVC
