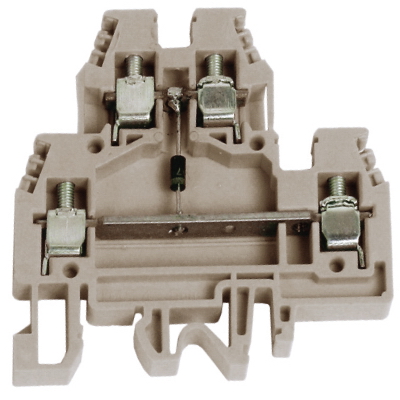

DAS.4/D FEED-THROUGH TERMINAL BL.WITH DIODE
Code:
ZDS114
Code:
ZDS114
| Mounting method | DIN rail (top hat rail)/G-rail TH35/G32 |
| Colour | Beige |
| Rated voltage, V | 630 |
| Length, mm | 64 |
| Operating temperature, °C | -40...80 |
| Width/grid dimension, mm | 6 |
| Closing plate required | Yes |
| Number of levels | 2 |
| Connectable conductor cross section solid-core, mm² | 0.2...6 |
| Connectable conductor cross section fine-strand with cable end sleeve, mm² | 0.5...2.5 |
| Connectable conductor cross section fine-strand without cable end sleeve, mm² | 0.2...4 |
| Connectable conductor cross section multi-wired, mm² | 0.2...1.5 |
| Inflammability class of insulation material according to with UL94 | V0 |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Material insulation body | Thermoplastic |
| Connection position | Above |
| Height at lowest possible mounting height, mm | 62 |
| Product type | Terminal block |
| Clamp type | Screw clamp |
| Cross-section | 4 mm² |
| Width | 6 mm |
| Q'ty of poles | 4 |
| Number of levels | 2 |
