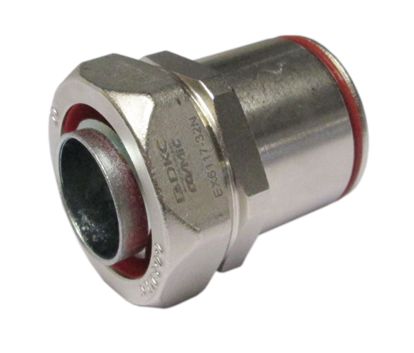

Explosion-proof Ex e rigid conduit-flexible conduit connector. Rigid conduit 50 mm. Flexible conduit 40. Stainless steel AISI316L. IP66/67
Code:
EX6117XX5040
Code:
EX6117XX5040
Removed from the product range
| Material | Metal |
| Degree of protection (IP) | IP66 |
| For Ex-zone gas | 1, 2 |
| Explosion-tested version | Yes |
| Colour | Light grey |
| Model | Straight |
| Halogen free | Yes |
| Material quality | Stainless steel others |
| Thread type | Gas-thread |
| For Ex-Zone dust | 21, 22 |
| Shock resistant | Yes |
| Material | Stainless steel |
| type of a coupling for: | The rigid conduit-the flexible conduit |
| Marking | Ex e IIC Gb U/ Ex tb IIIC Db U |
| CF494428 | 40 |
| Nominal diameter of the rigid conduit, mm | 50 |
| Temperature range during operation, °С | from - 45 to +85 |
| Inside diameter of the through hole, mm | 38 |
| Product type | Cable fitting |
