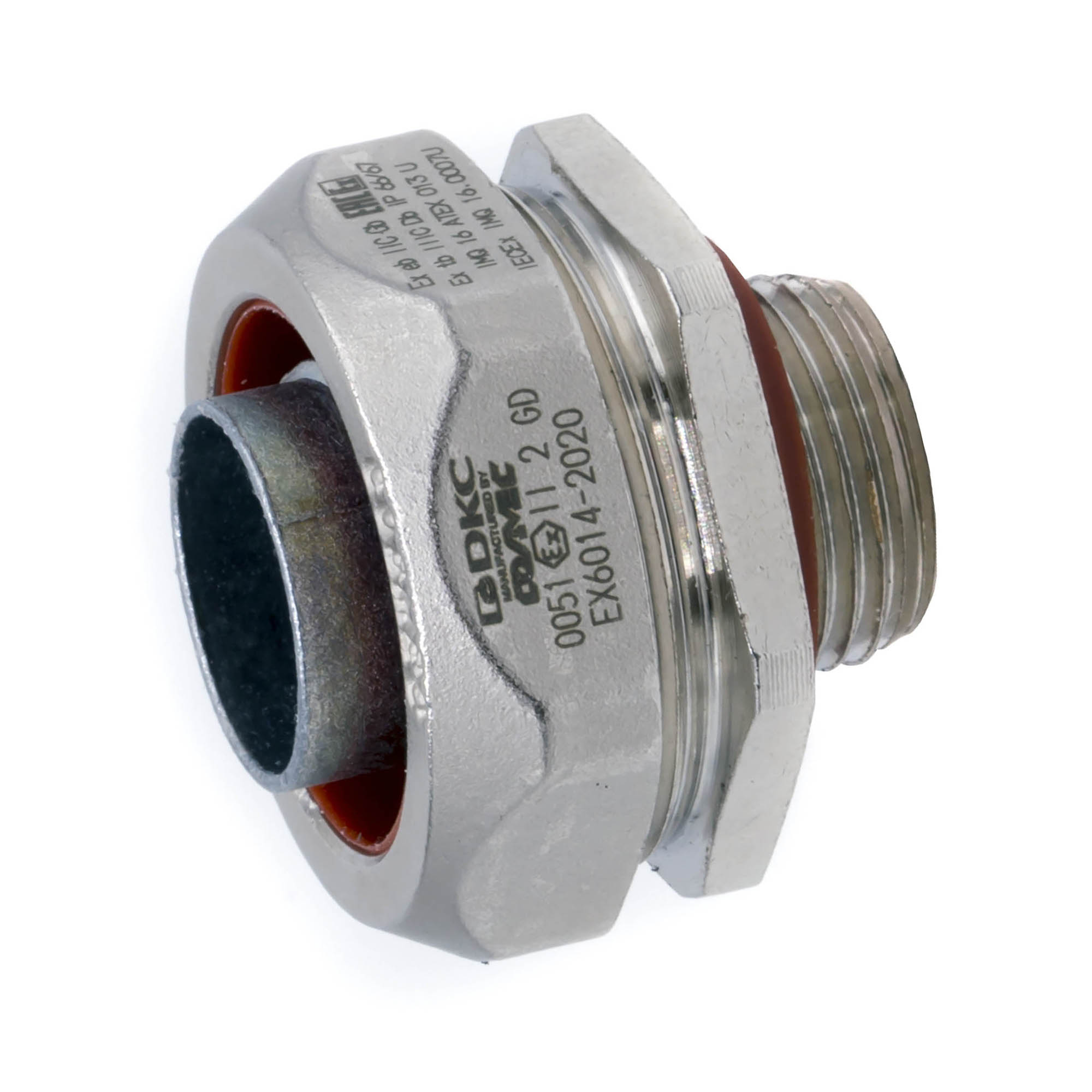

Explosion-proof Ex e fixed male connector. Conduit 20 mm. Male thread M25х1,5. Stainless steel AISI316L. IP66/67

Code: EX6014XX25A

Explosion-proof Ex e fixed male connector. Conduit 20 mm. Male thread M25х1,5. Stainless steel AISI316L. IP66/67

Code: EX6014XX25A
Material Metal
Degree of protection (IP) IP66
For Ex-zone gas 1, 2
Explosion-tested version Yes
Colour Light grey
Model Straight
Halogen free Yes
Material quality Stainless steel others
Thread type Metric
For Ex-Zone dust 21, 22
Shock resistant Yes
Material AISI 316L
type of a coupling for: The flexible conduit - junction box
Threading M25х1,5 Metric
Marking Ex e IIC Gb U/ Ex tb IIIC Db U
CF494428 20
Temperature range during operation, °С from - 45 to +85
Inside diameter of the through hole, mm 18
Product type Cable fitting
Nominal diameter of the flexible conduit, mm 20
Inside diameter of the through hole, mm 18
