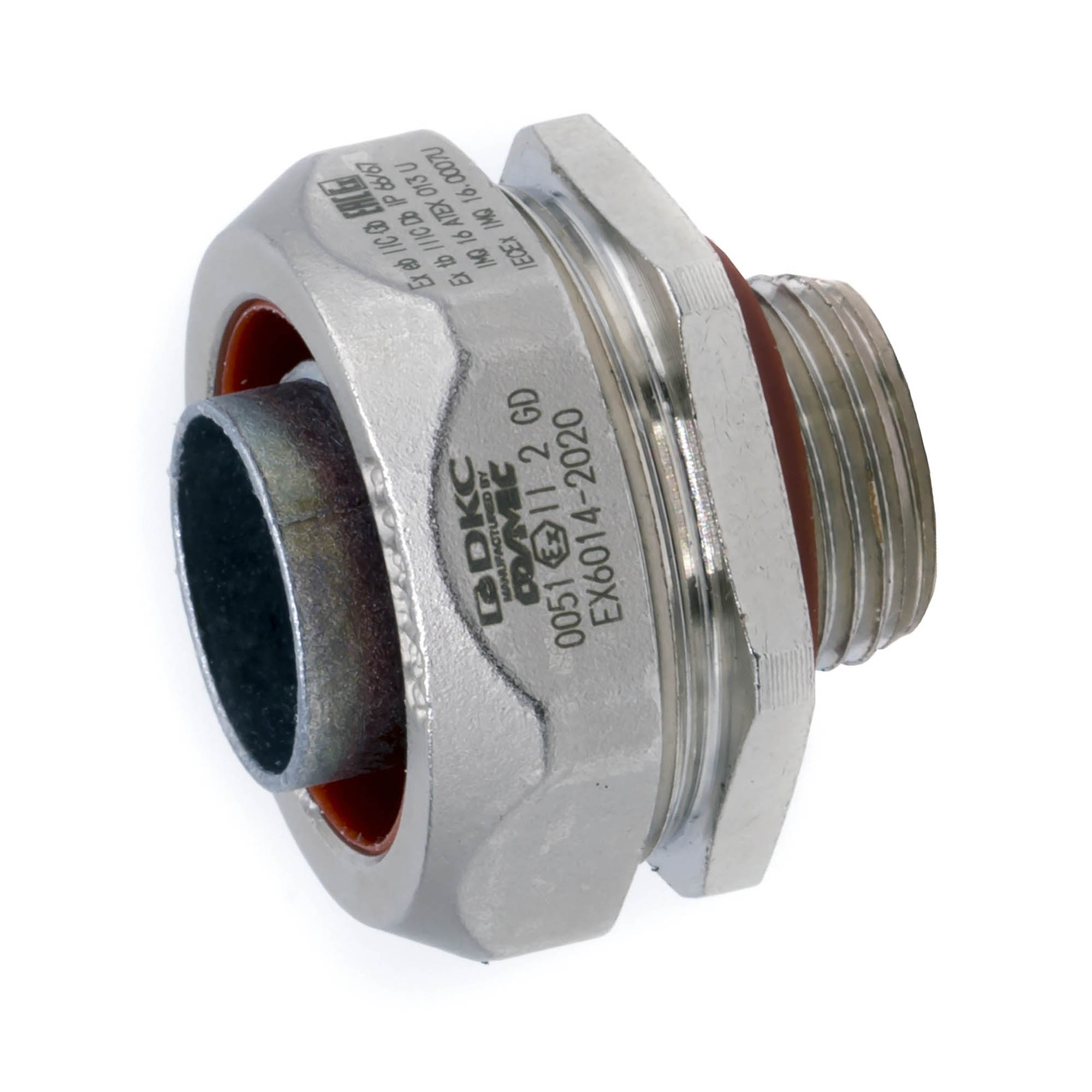

Explosion-proof Ex e fixed male connector. Conduit 15 mm. Male thread M16х1,5. Stainless steel AISI316L. IP66/67
Code: EX6014XX1616
Explosion-proof Ex e fixed male connector. Conduit 15 mm. Male thread M16х1,5. Stainless steel AISI316L. IP66/67
Code: EX6014XX1616
| Material | Metal |
| Degree of protection (IP) | IP66 |
| For Ex-zone gas | 1, 2 |
| Explosion-tested version | Yes |
| Colour | Light grey |
| Model | Straight |
| Halogen free | Yes |
| Material quality | Stainless steel others |
| Thread type | Metric |
| For Ex-Zone dust | 21, 22 |
| Shock resistant | Yes |
| Material | AISI 316L |
| type of a coupling for: | The flexible conduit - junction box |
| Threading | M16х1,5 Metric |
| Marking | Ex e IIC Gb U/ Ex tb IIIC Db U |
| CF494428 | 15 |
| Temperature range during operation, °С | from - 45 to +85 |
| Inside diameter of the through hole, mm | 12 |
| Product type | Cable fitting |
| Nominal diameter of the flexible conduit, mm | 15 |
| Inside diameter of the through hole, mm | 12 |
