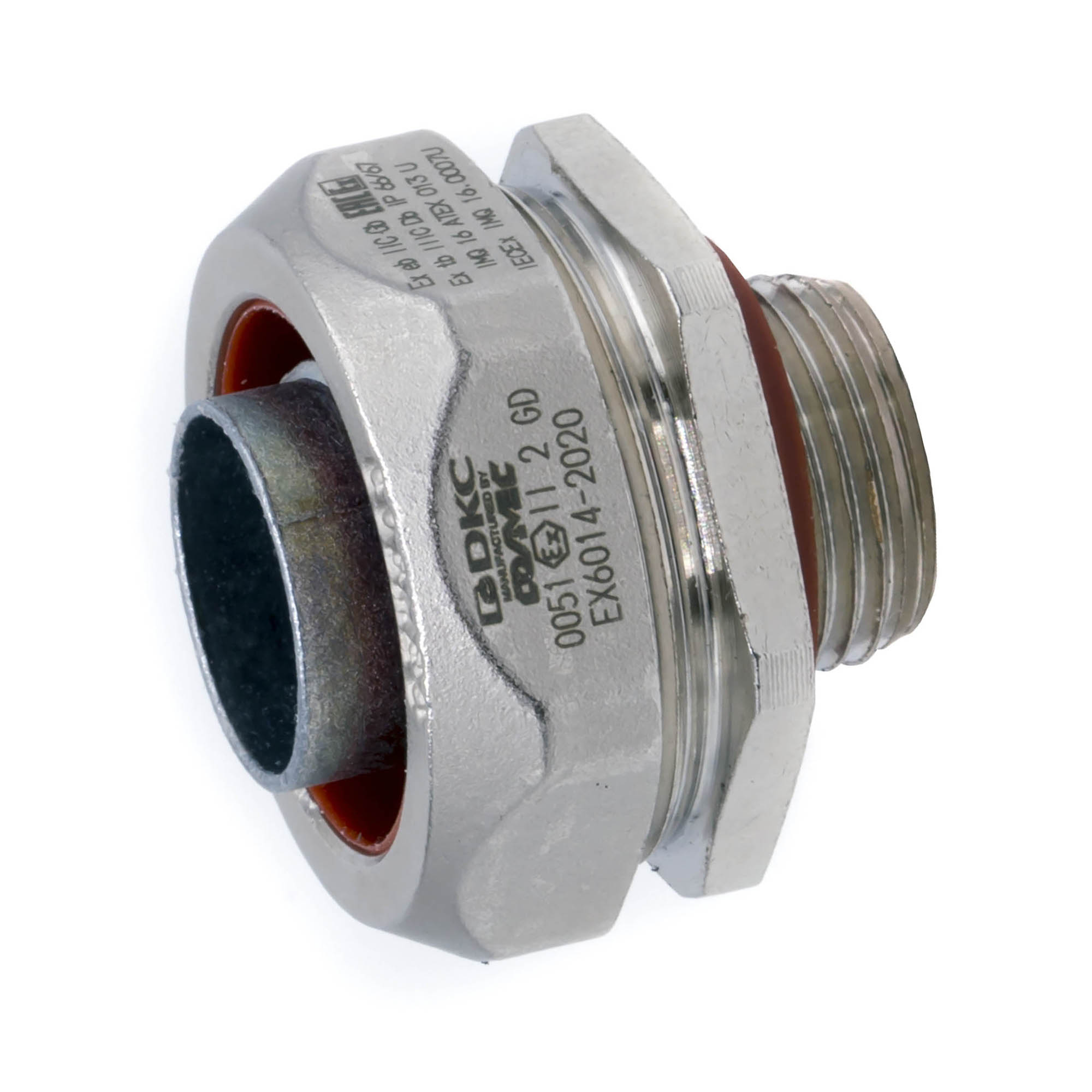

Explosion-proof Ex e fixed male connector. Conduit 26 mm. Male thread M25х1,5. Nickel-plated brass. IP66/67

Code: EX6014-2527
Explosion-proof Ex e fixed male connector. Conduit 26 mm. Male thread M25х1,5. Nickel-plated brass. IP66/67
  • To ask a question
Material Metal
Degree of protection (IP) IP66
For Ex-zone gas 1, 2
Explosion-tested version Yes
Colour Light grey
Model Straight
Halogen free Yes
Surface protection Nickel-plated
Material quality Brass
Thread type Metric
For Ex-Zone dust 21, 22
Shock resistant Yes
Material Nickel plated brass
type of a coupling for: The flexible conduit - junction box
Threading M25х1,5 Metric
Marking Ex e IIC Gb U/ Ex tb IIIC Db U
CF494428 26
Temperature range during operation, °С from - 45 to +85
Inside diameter of the through hole, mm 20
Product type Cable fitting
