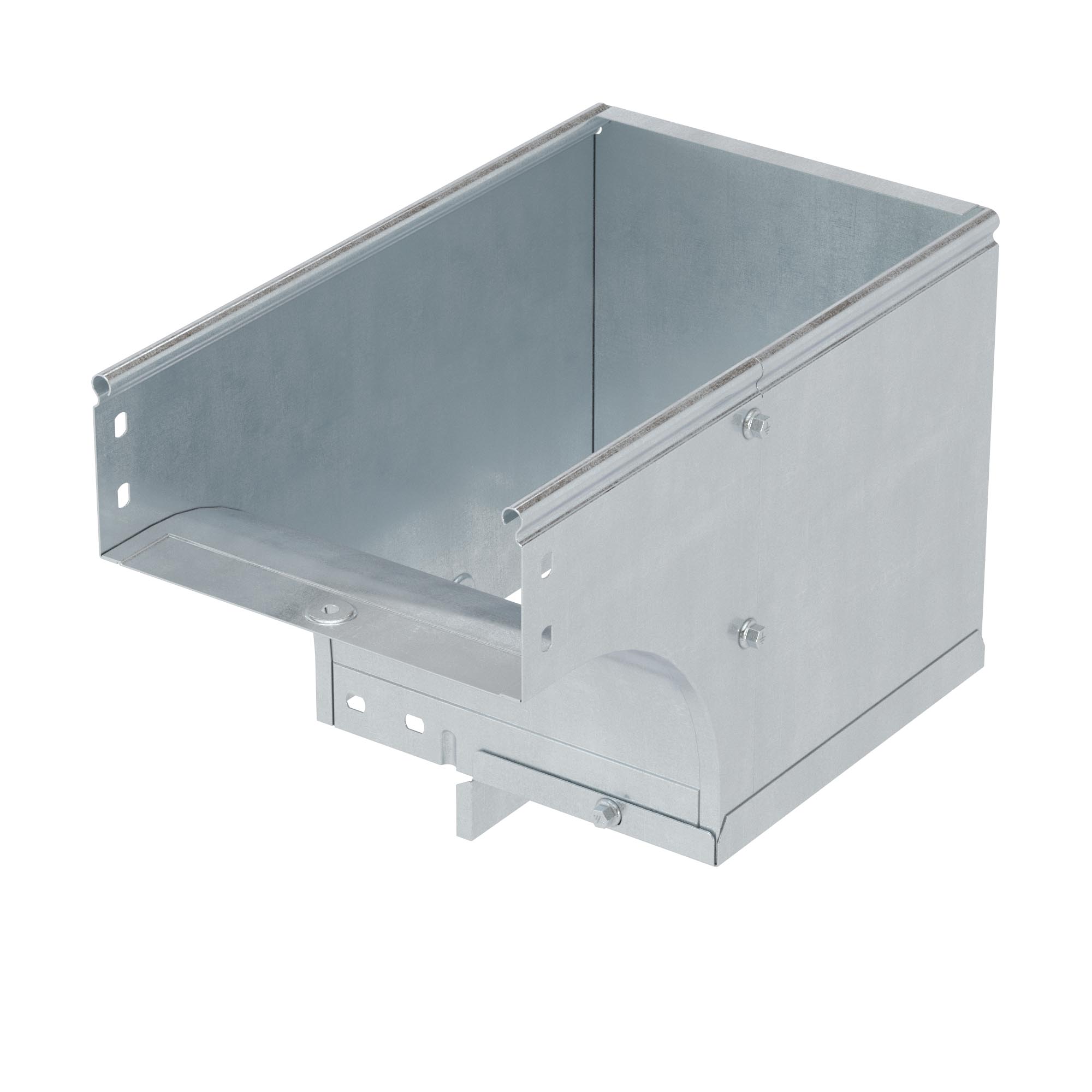

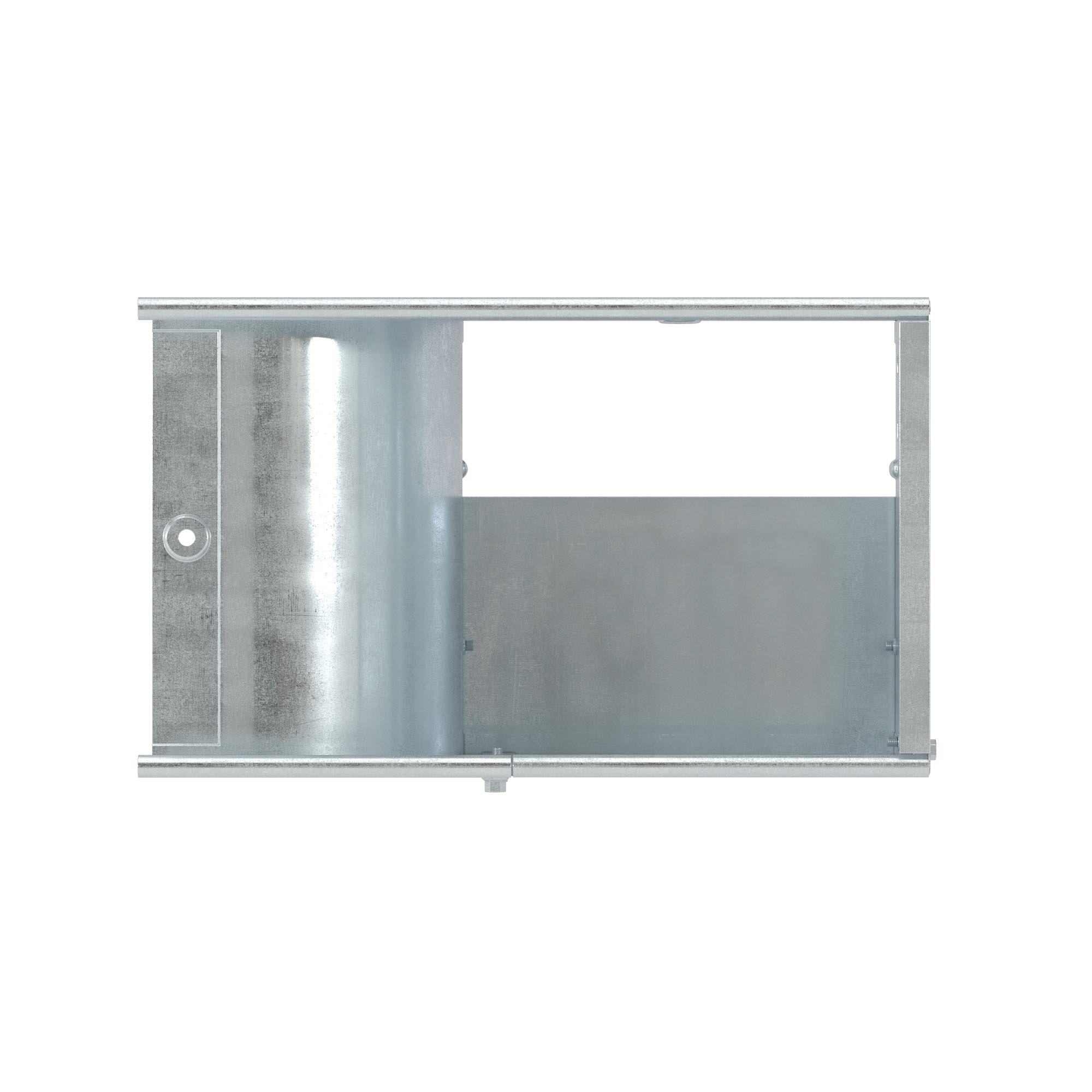

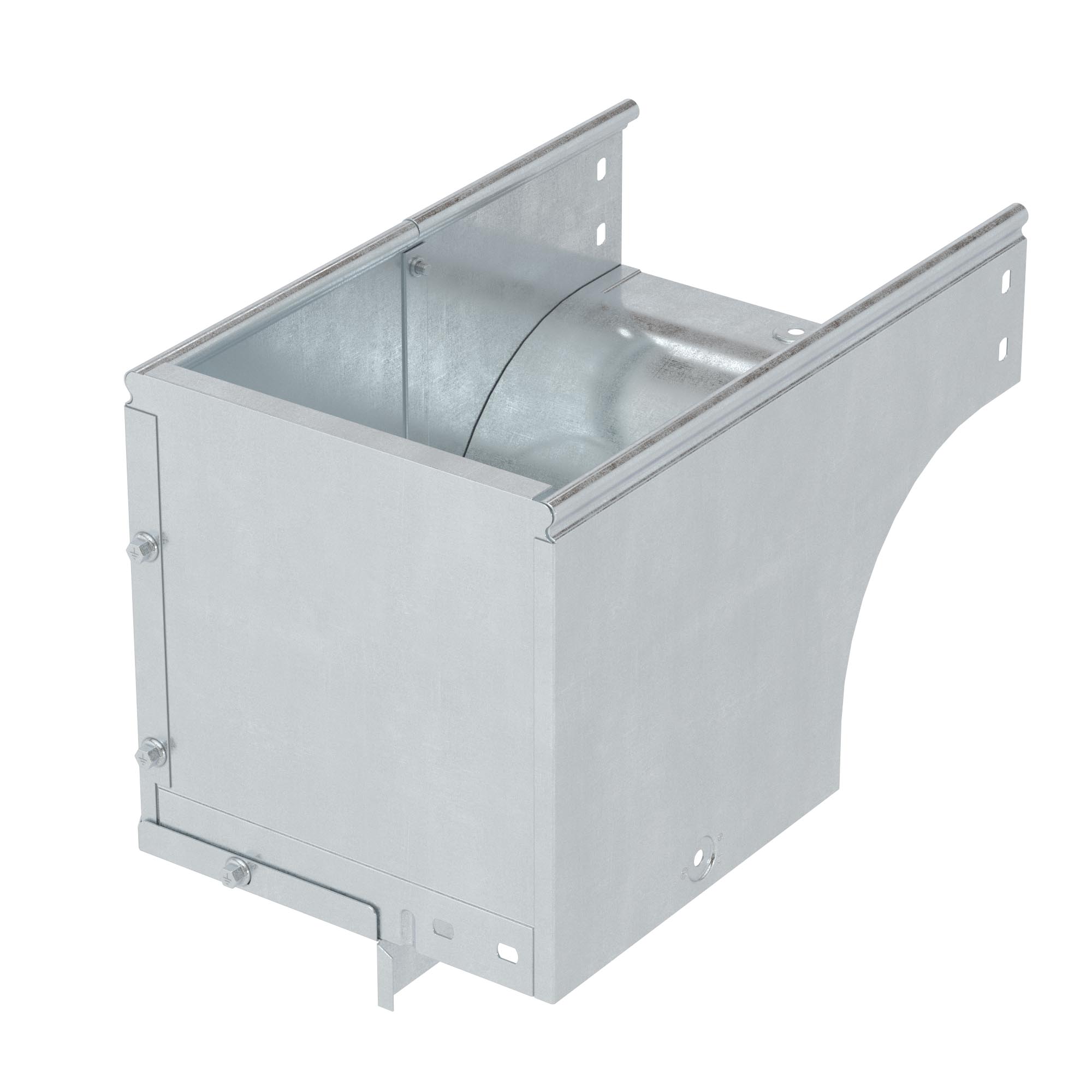

CDSS 90 external vertical angle, 600x50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating

Code: 37657KZL

CDSS 90 external vertical angle, 600x50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating

Code: 37657KZL
Removed from the product range
Colour Light grey
Model Included connector
Surface protection Continuously galvanized zinc-aluminium
Material thickness, mm 0.8
Deflection (angle) 90°
Side wall perforation Yes
Material quality Steel
Material Steel
Mounting perforation in bottom Yes
Inner radius, mm 130
Cable tray width, mm 600
Cable tray height, mm 50
Change of direction Vertically descending
NATO-mounting holes Yes
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes
Product type System accessories
Type of accessories CDSS 90 external vertical angle
Width 600 mm
Height 50 mm
Material Zinc lamellar coating

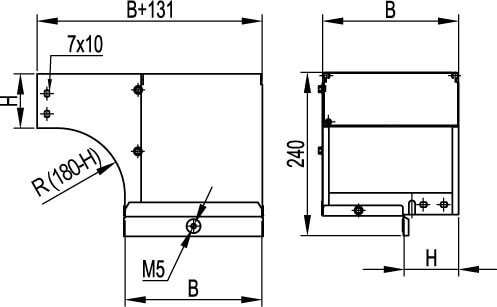

Drawings
Seria Name SAT STEP
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Certificates
Name Document
