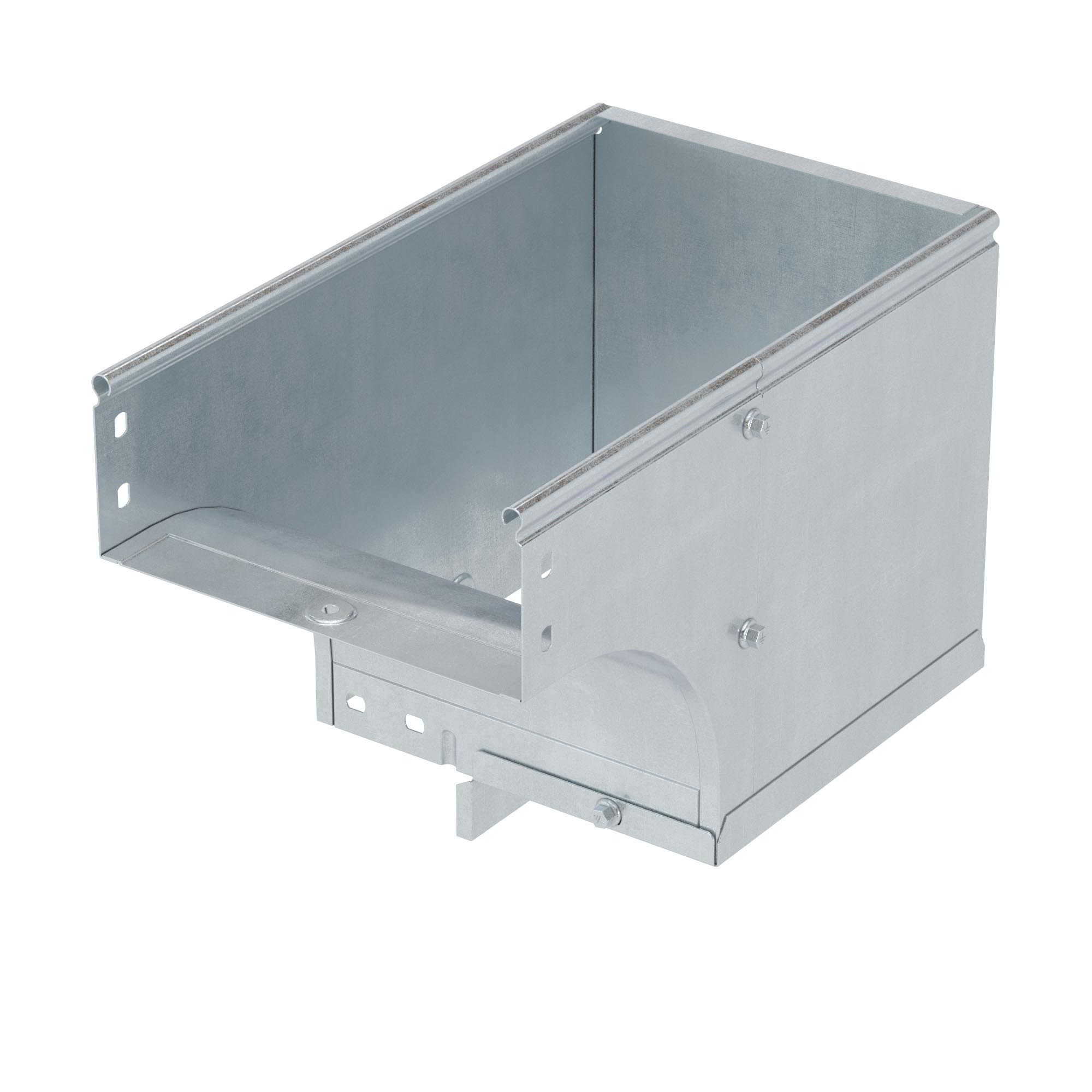

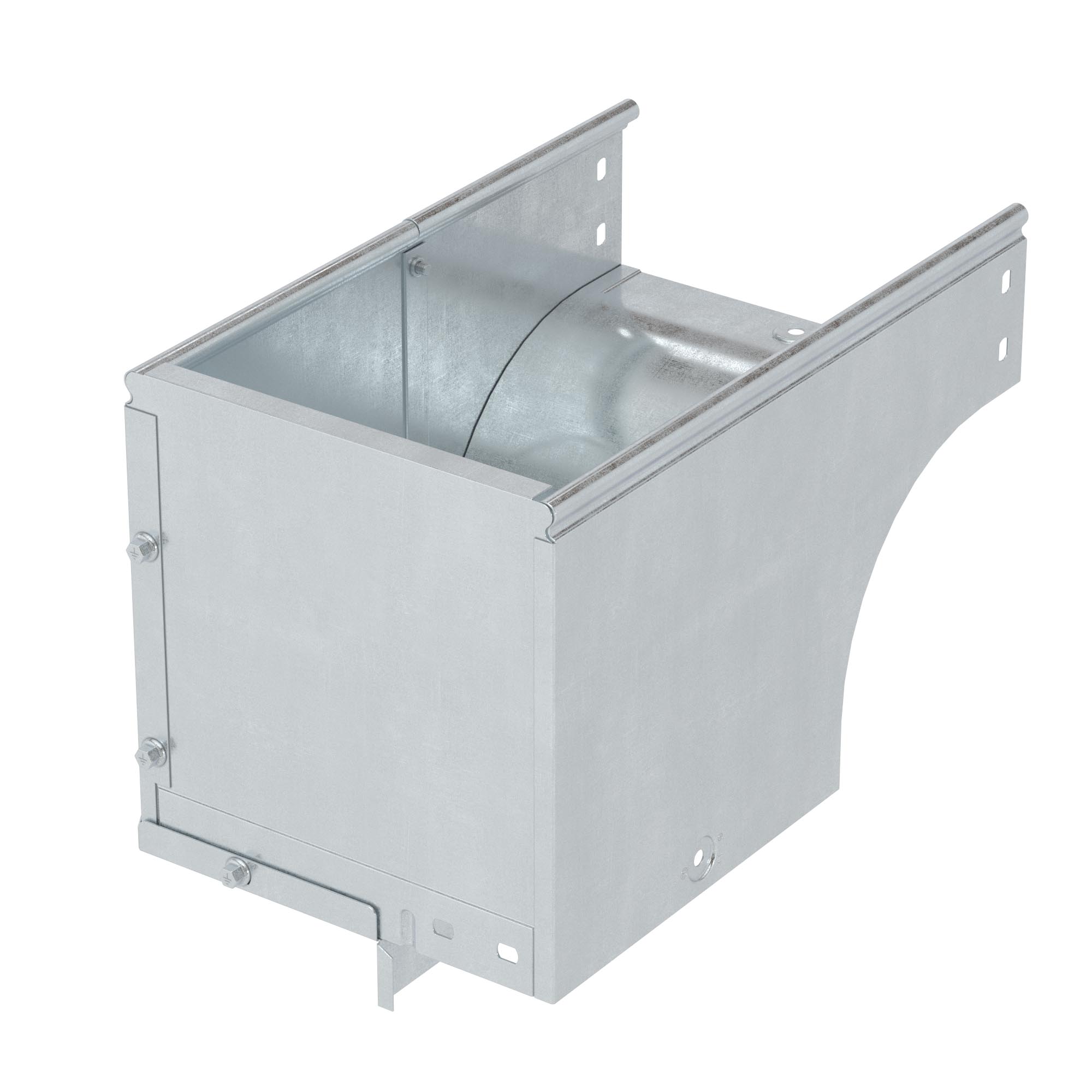

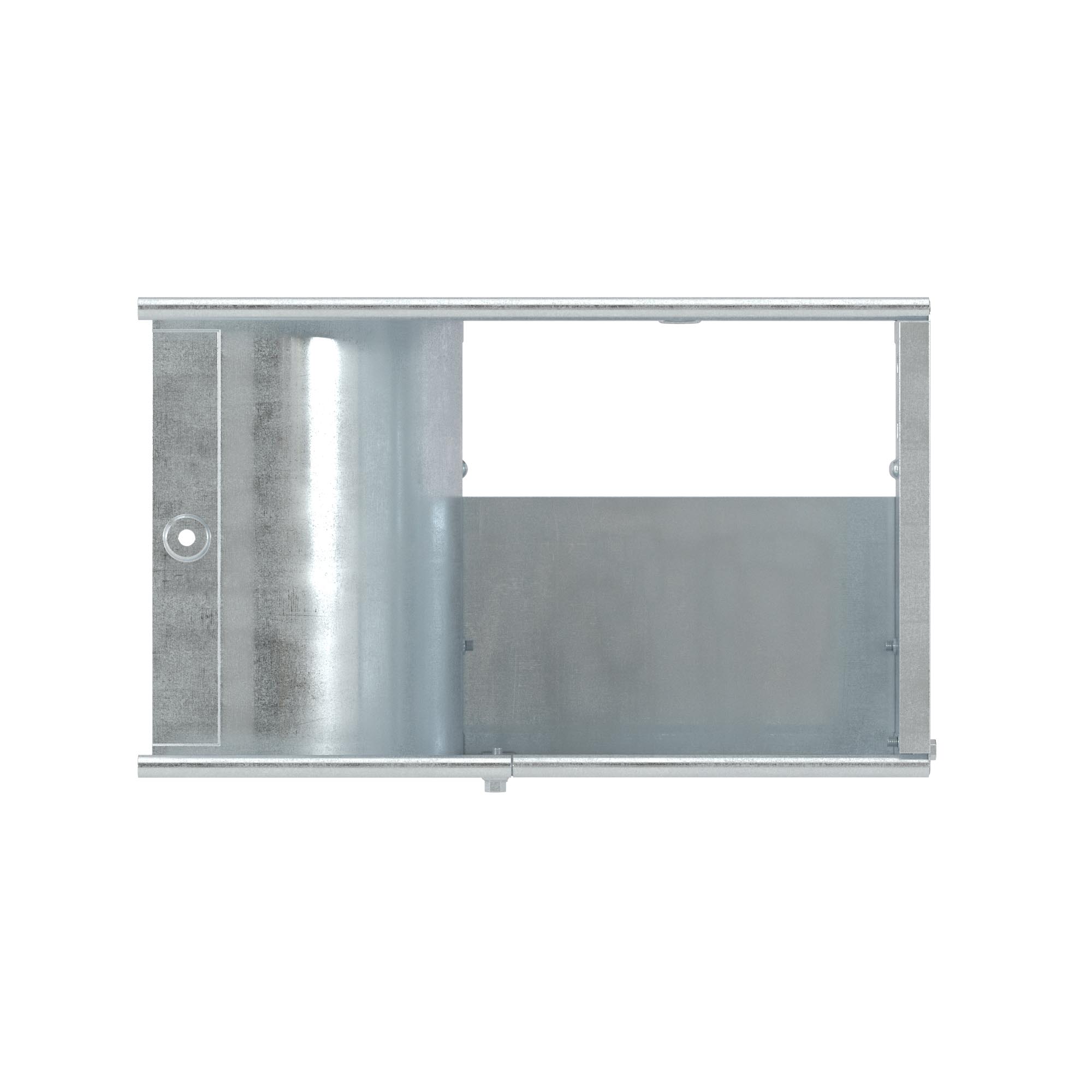

CDSS 90 external vertical angle, 600x50, included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method

Code: 37657KHDZ

CDSS 90 external vertical angle, 600x50, included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method

Code: 37657KHDZ
Colour Light grey
Model Included connector
Surface protection Hot-dip galvanized
Material thickness, mm 0.8
Deflection (angle) 90°
Side wall perforation Yes
Material quality Steel
Material Steel
Mounting perforation in bottom Yes
Inner radius, mm 130
Cable tray width, mm 600
Cable tray height, mm 50
Change of direction Vertically descending
NATO-mounting holes Yes
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes
Product type System accessories
Type of accessories CDSS 90 external vertical angle
Width 600 mm
Height 50 mm
Material Hot-dip galvanized

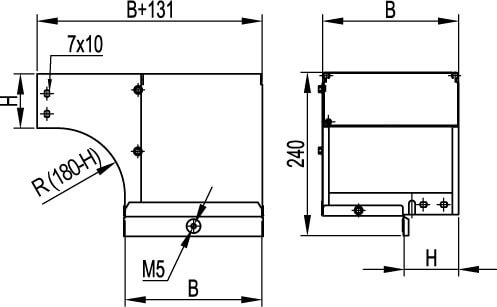

Drawings
Seria Name SAT STEP
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
