Expansion module, TC 4, thermocouple cold junction compensation (CJC) options include internal and external compensation. Supported thermocouple types include J, K, E, S, T.

Code: C1000-04TC
Expansion module, TC 4, thermocouple cold junction compensation (CJC) options include internal and external compensation. Supported thermocouple types include J, K, E, S, T.
Expansion module, TC 4, thermocouple cold junction compensation (CJC) options include internal and external compensation. Supported thermocouple types include J, K, E, S, T.
Code: C1000-04TC
  • To ask a question
  • Characteristics
  • The accompanying goods
  • Promo
  • Viewed items

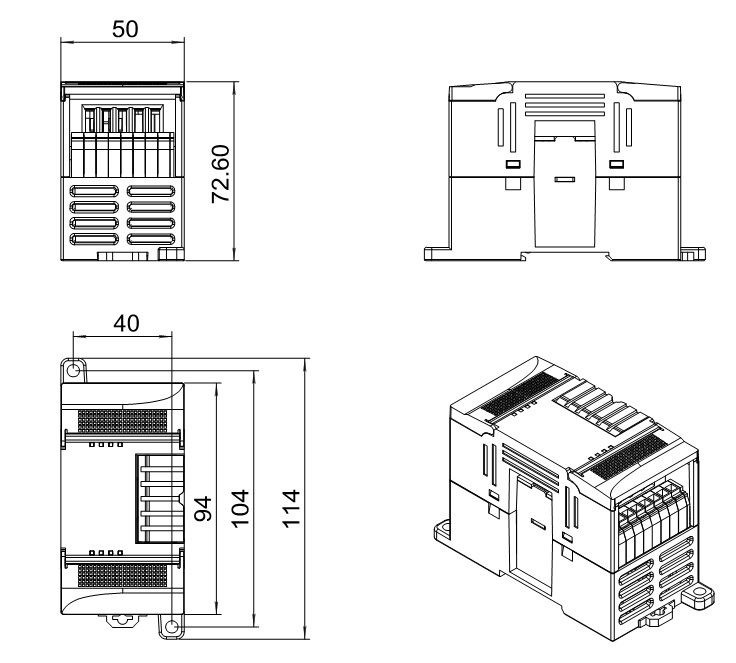

Width, mm 114
Height, mm 70
Depth, mm 50
Suitable for safety functions No
Number of analogue inputs 4
Input, voltage Yes
Type of electric connection Screw connection
Product type PLC Expansion module
Number of digital inputs 0
Number of digital ouput 0
Number of analog inputs 4
Number of analog outputs 0
