Code

Name

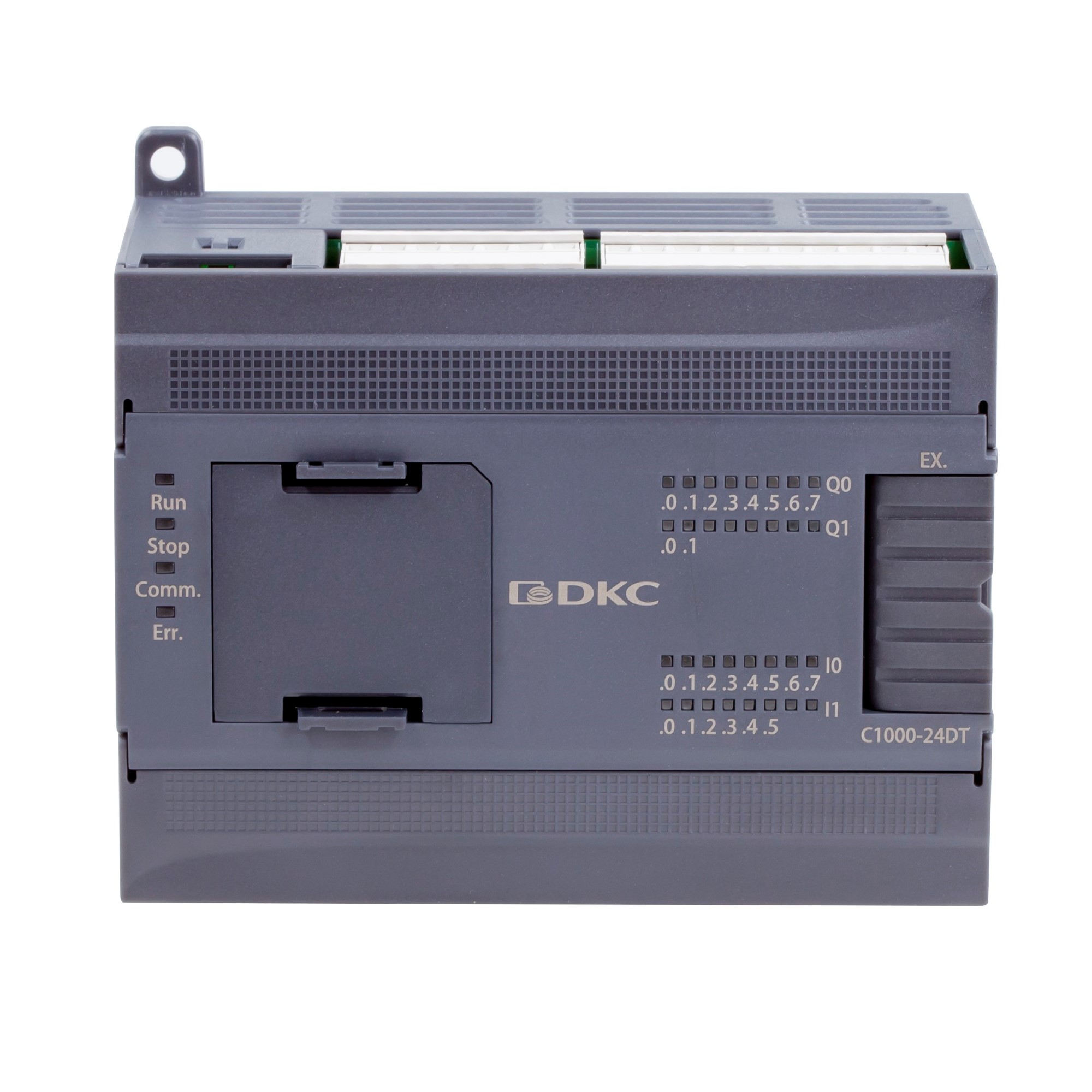

CPU for programmable logic controller, powered by DC 24V, DI 14 DC24V(PNP/NPN), DO 10 DC24V(PNP), communication ports - 2xRS485, 1xEthernet. Support a maximum of 1 BD expansion module and 14 bus expansion modules.

CPU for programmable logic controller, powered by AC 100-240V, DI 14 DC24V(PNP/NPN), DO 10 DC24V(PNP), communication ports - 2xRS485, 1xEthernet. Support a maximum of 1 BD expansion module and 14 bus expansion modules.

Expansion module, power for bus expansion modules, powered by AC 85-265V, rated output: 5V 1A/24V 250mA

Expansion module, AO 2 (4-20mA/1-5V/0-20mA/0-10V)

Expansion module, AI 4, AO 2 (4-20mA/1-5V/0-20mA/0-10V)

Expansion module, AI 4 (4-20mA/1-5V/0-20mA/0-10V)

Expansion module, RD 4 (Pt100, Pt1000, Cu50, Omh)

Expansion module, TC 4, thermocouple cold junction compensation (CJC) options include internal and external compensation. Supported thermocouple types include J, K, E, S, T.

Expansion module, DO 16 DC24V(PNP)

Expansion module, DO 8 DC24V(PNP)

Expansion module, DO 16 Relay

Expansion module, DO 8 Relay

Expansion module, DI 16 DC24V(PNP/NPN)

Expansion module, DI 8 DC24V(PNP/NPN)

BD expansion module, communication port - 1хCAN(CANOpen)

BD expansion module, communication ports - 1хRS232(PORT0), 1xRS485(PORT3)
