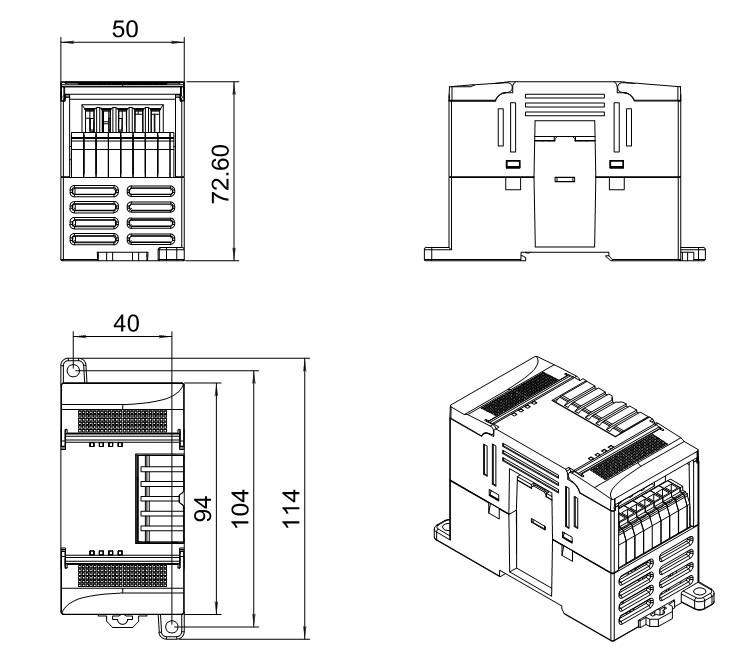

| Width, mm | 114 |
| Height, mm | 70 |
| Depth, mm | 50 |
| Suitable for safety functions | No |
| Number of analogue outputs | 2 |
| Input, voltage | Yes |
| Type of electric connection | Screw connection |

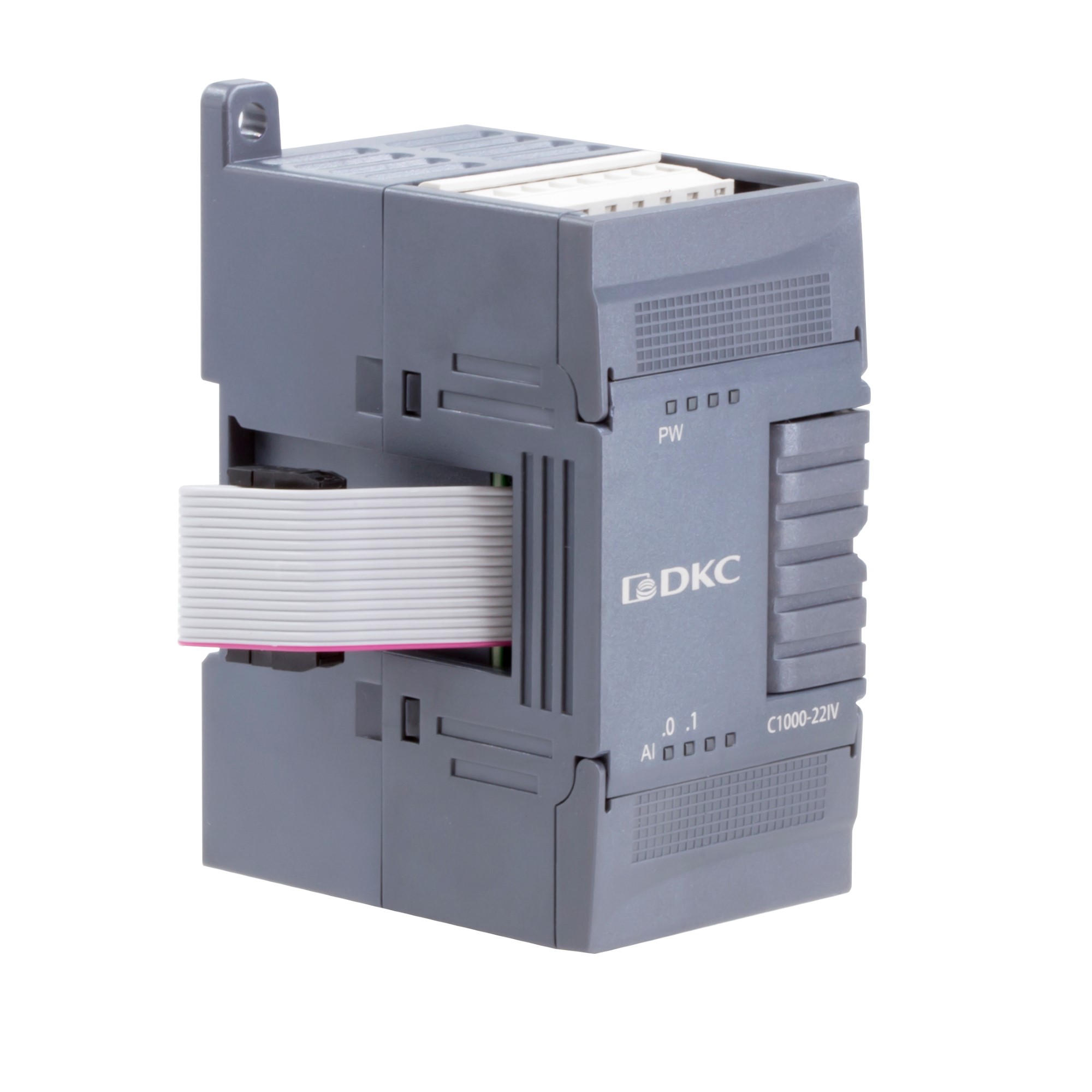

| Product type | PLC Expansion module |
| Number of digital inputs | 0 |
| Number of digital ouput | 0 |
| Number of analog inputs | 0 |
| Number of analog outputs | 2 |
