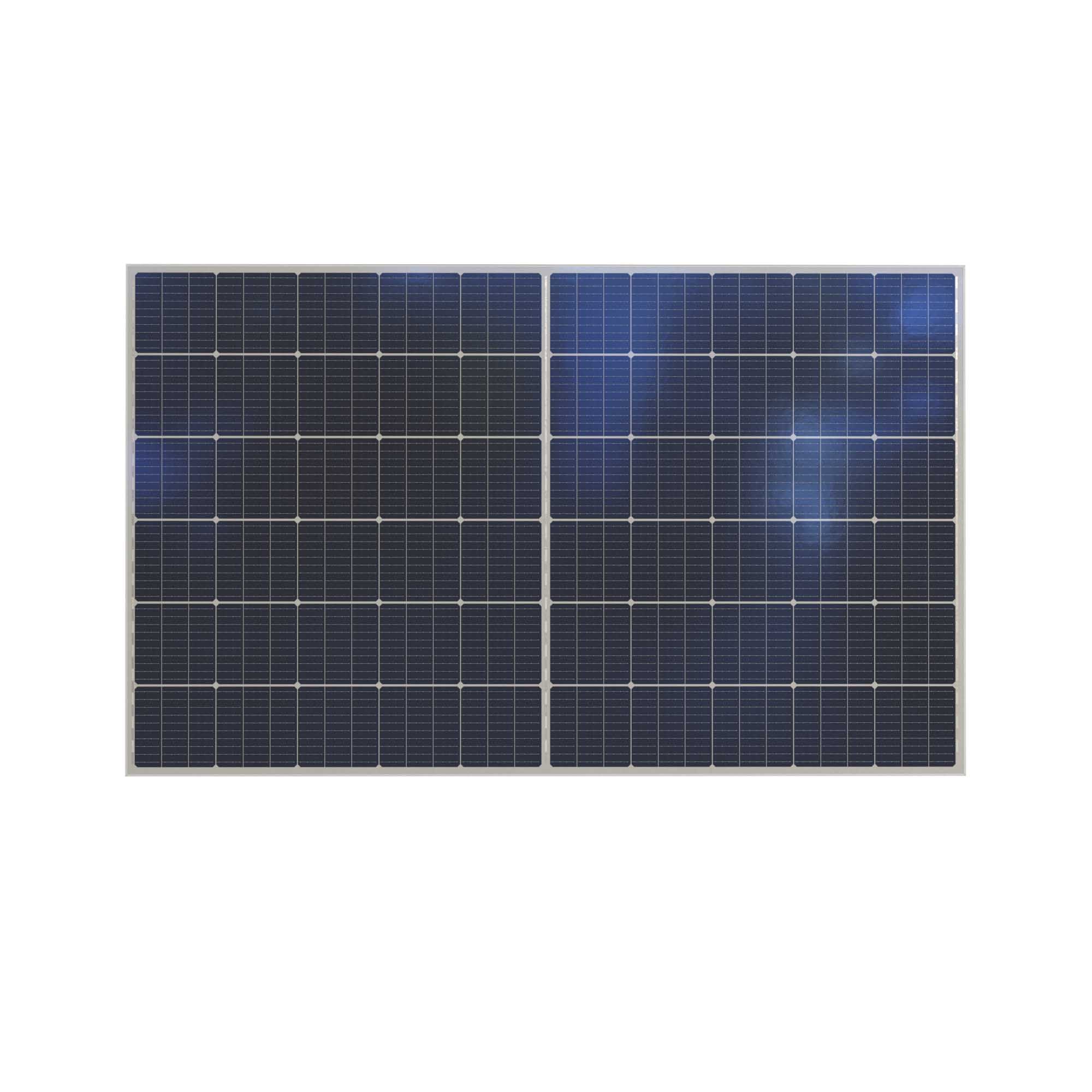

Solar module EOS Solar, 460W, 1903х1134х30, 1/3-cut solar cell
Code: EPV630R460
Solar module EOS Solar, 460W, 1903х1134х30, 1/3-cut solar cell
Code: EPV630R460
| Width, mm | 1134 |
| Height, mm | 30 |
| Weight, kg | 23.5 |
| Cable length, mm | 350 |
| Length, mm | 1903 |
| Operating temperature, °C | -40...85 |
| Short-circuit current, A | 9.31 |
| Open circuit voltage, V | 62.4 |
| Max. system voltage, V | 1500 |
| With connection cable | Yes |
| MPP-voltage, V | 52.8 |
| MPP-current, A | 8.71 |
| Cell material | Mono crystalline |
| Number of cells | 180 |
| Module efficiency factor (STC), % | 21.32 |
| Number of bypass diodes | 3 |
| Temperature coefficient Isc, %/K | 0.05 |
| Temperature coefficient Uoc, %/K | -0.31 |
| Temperature coefficient Pmpp, %/K | -0.35 |
| Suitable for vertical/overhead glazing | No |
| Glass with anti-reflection coating | Yes |
| Colour frame | Silver |
