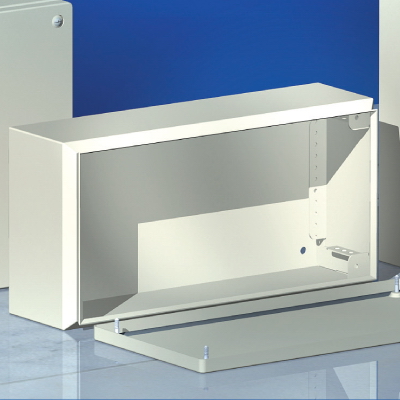

Welded metal enclosure CDE with flange, 800 x 400 x 120 mm, IP55

Code: R5CDE84120F
Welded metal enclosure CDE with flange, 800 x 400 x 120 mm, IP55
Welded metal enclosure CDE with flange, 800 x 400 x 120 mm, IP55

Welded metal enclosure CDE with flange, 800 x 400 x 120 mm, IP55

Code: R5CDE84120F
Colour Grey
Width, mm 400
Height, mm 800
Depth, mm 120
RAL-number 7035
With mounting plate Yes
Number of doors 1
Number of locks 1
EMC-version Yes
With glazed door Yes
Material Steel
Degree of protection (IP) IP66
Suitable for outdoor set-up Yes
Suitable for metrical mounting Yes
Mounting plate depth-adjustable Yes
Tackable Yes
With ventilation door Yes
Surface finishing Powder coating
With backside door Yes
Enclosure type Wall-mounted
Enclosure specification With a blank door
Material Steel, light grey, RAL7035
Product type Terminal box
Height 400 mm
Drawings
Seria Name DWG STEP DWG (dynamic.)
Metal enclosures - "RAMblock"
War metal housing CDE, 800х400х120 mm, with France, protection Class IP55
RAR
422.59 Kb
RAR
1.13 Mb
Metal enclosures - "RAMblock"
Skinnie hinged boxes series СDЕ (dynamic blocks)
RAR
2.94 Mb
Certificates
Name Document
RAM block - Exemption letter for enclosures RAM block_1
PDF
3.69 MB
RAM block - Exemption letter for accessories RAM block_1
PDF
742.54 kB
RAM block - Test report for welded boxes CE/CDE on the seismic stability_1
PDF
128.88 kB
RAM block - Test report for welded boxes CE/CDE on the vibration_1
PDF
125.50 kB
Test report on hinged welded cabinets ST_UHL1_1
PDF
196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"
PDF
5.99 MB
All types of cable trays, ducts, welded and modular cases -Russian Maritime Register of Shipping_1
PDF
1.42 MB
Certificate of conformity for Wall-mounted enclosure series CE and CQE
PDF
1.84 MB
