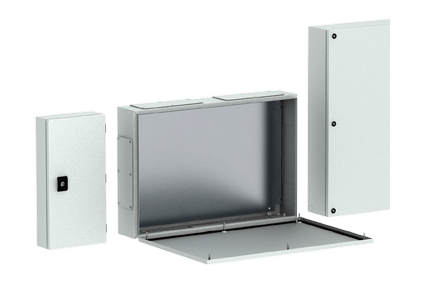

SDE and CDE terminal enclosures

CDE enclosures of RAM block product line are designed to connect control and power cables.

CDE boxes have 3 modifications: closed, with holes for cable entries, with a hinged lid and available in different versions (with / without a flange, screws or hinges for the lid fixing). Boxes are made from high quality steel sheets with epoxy-polyester coating (standard RAL 7035). Mounting plate is made of galvanized steel sheets of 2 mm thickness. IP level depends on enclosures frame structure and marked individually for each model.

To make assembling more convenient all the accessories are supplied complete with the main box. The rails for DIN rail and mounting plate are pre-installed on the back side of the box.
