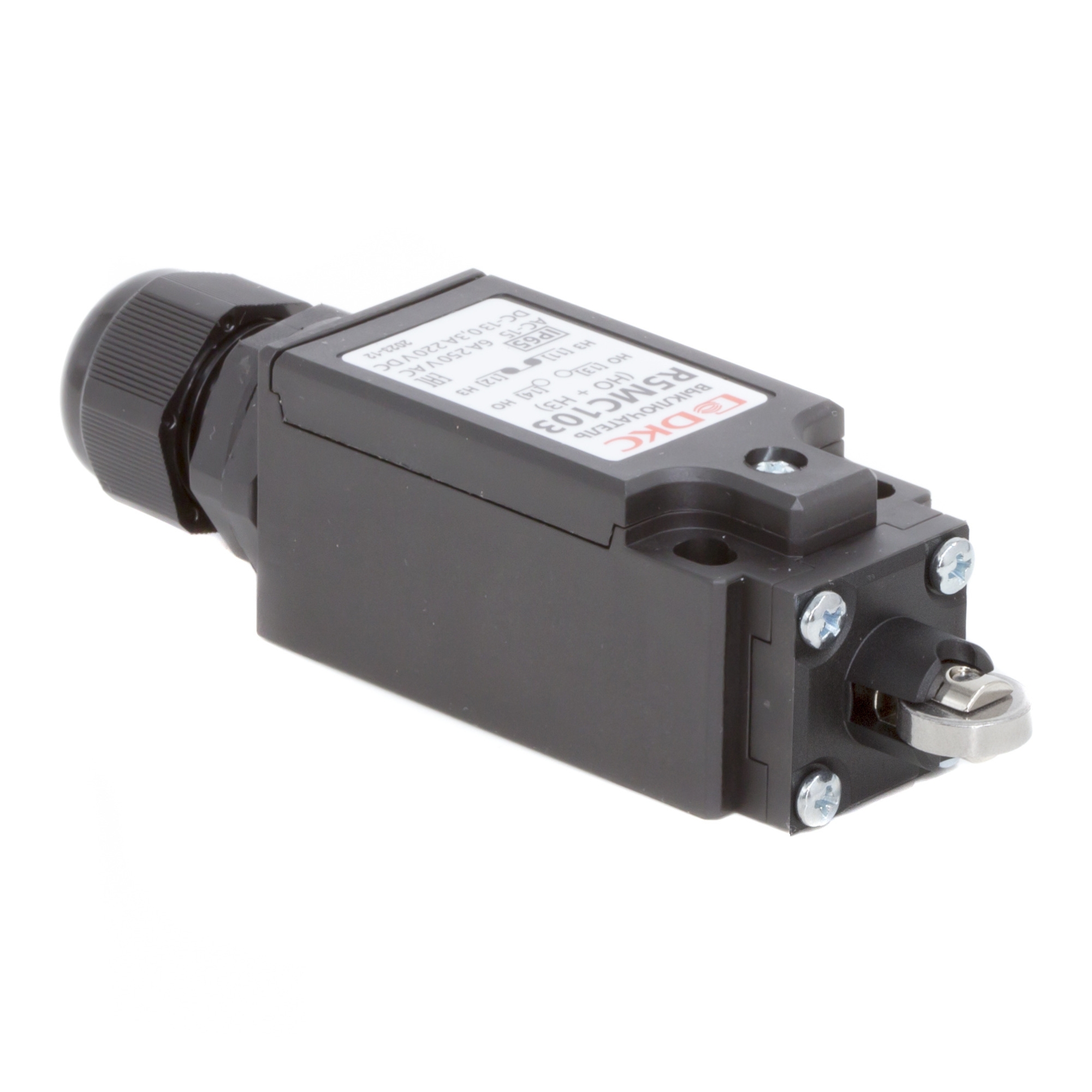

Limited switch. (NO + NC), with roller

Code: R5MC103
Limited switch. (NO + NC), with roller
Limited switch. (NO + NC), with roller
Code: R5MC103
  • To ask a question
  • Characteristics
  • Drawings
  • Certificates
  • Promo
  • Viewed items
  • News
Switching function Quick-break switch
Rated operation current Ie at AC-15, 230 V, A 5
Rated operation current Ie at DC-13, 230 V, A 0.2
Material housing Plastic
Suitable for safety functions Yes
With status indication No
Type of interface for safety communication None
Type of electric connection Cable entry metrical
Explosion safety category for gas None
Explosion safety category for dust None
Construction type housing Cuboid
Degree of protection (IP) IP65
Forced opening No
Type of control element Roller cam
Type of interface None
Output electronic No
Rated operation current Ie at AC-15, 125 V, A 5
Rated operation current Ie at AC-15, 24 V, A 5
Rated operation current Ie at DC-13, 125 V, A 0.4
Rated operation current Ie at DC-13, 24 V, A 5
Ambient temperature during operating, °C -10...70
Number of contacts as normally closed contact 1
Number of contacts as normally open contact 1
Alignment of the control element Roller cam straight
Switching function latching No
Housing according to norm Other
