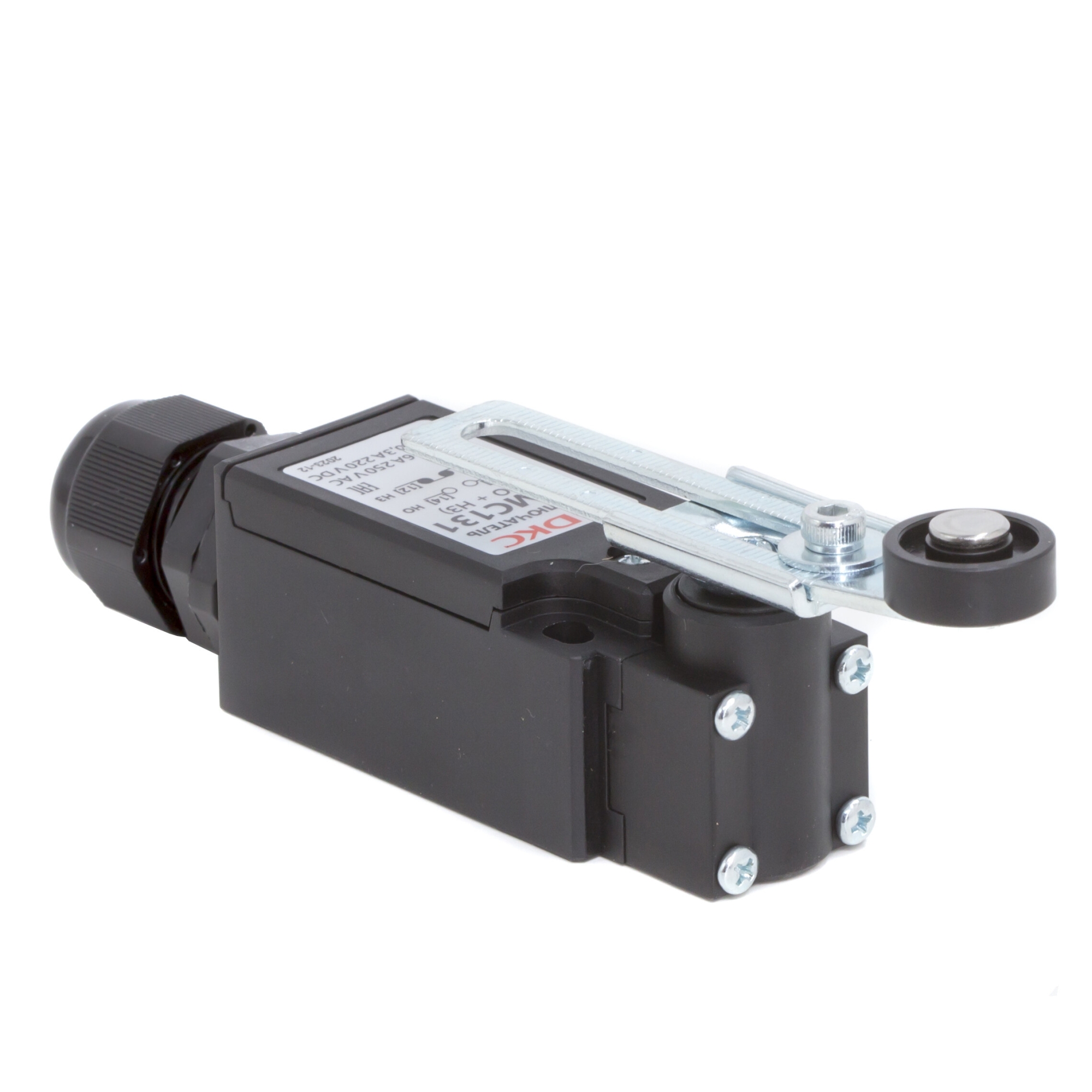

Limited switch. (NO + NC), With swivel adjustable lever roller
Code: R5MC131
Limited switch. (NO + NC), With swivel adjustable lever roller
Code: R5MC131
| Switching function | Quick-break switch |
| Rated operation current Ie at AC-15, 230 V, A | 5 |
| Rated operation current Ie at DC-13, 230 V, A | 0.2 |
| Material housing | Plastic |
| Suitable for safety functions | Yes |
| With status indication | No |
| Type of interface for safety communication | None |
| Type of electric connection | Cable entry metrical |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | IP65 |
| Forced opening | No |
| Type of control element | Roller lever |
| Type of interface | None |
| Output electronic | No |
| Rated operation current Ie at AC-15, 125 V, A | 5 |
| Rated operation current Ie at AC-15, 24 V, A | 5 |
| Rated operation current Ie at DC-13, 125 V, A | 0.4 |
| Rated operation current Ie at DC-13, 24 V, A | 5 |
| Ambient temperature during operating, °C | -10...70 |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
