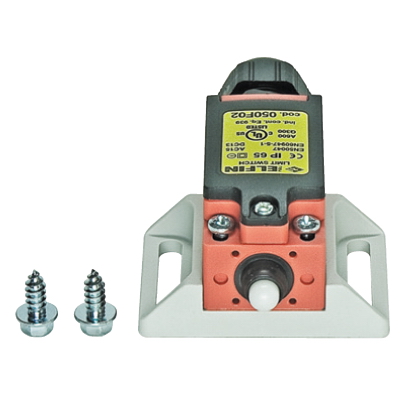

Limit switch, 220V

Code: R5MC01

Limit switch, 220V

Limit switch, 220V

To ask a question

Width, mm	39
Height, mm	31

Depth, mm	101
Material	Plastic

Color

Black

Drawings

Seria	Name	Eplan	DWG	STEP	DWG (dynamic blocks)
RAMblock - metal enclosures	Prefabricated outdoor metal cabinets CQE	RAR 169.72 MB
RAMblock - metal enclosures	Door switch		RAR 56.39 kB	RAR 133.55 kB
RAMblock - metal enclosures	Prefabricated outdoor metal cabinets CQE (dynamic blocks)				RAR 8.46 MB
RAMblock - metal enclosures	Kits for the installation of circuit breakers with rated current up to 630A in outdoor cabinets (dynamic blocks)				RAR 1.17 MB

Certificates

Name	Document
RAM block - Exemption letter for accessories RAM block_1	PDF 742.54 kB
Test report on hinged welded cabinets ST_UHL1_1	PDF 196.35 kB
The certificate of expert opinion on the low-voltage devices on currents 6300 Amperes / 100 kA_ "RAM block" and "RAM power"	PDF 5.99 MB
"RAM block" - Certificate of conformity to GOST R for the limit switch series R5MC	PDF 1.22 MB
