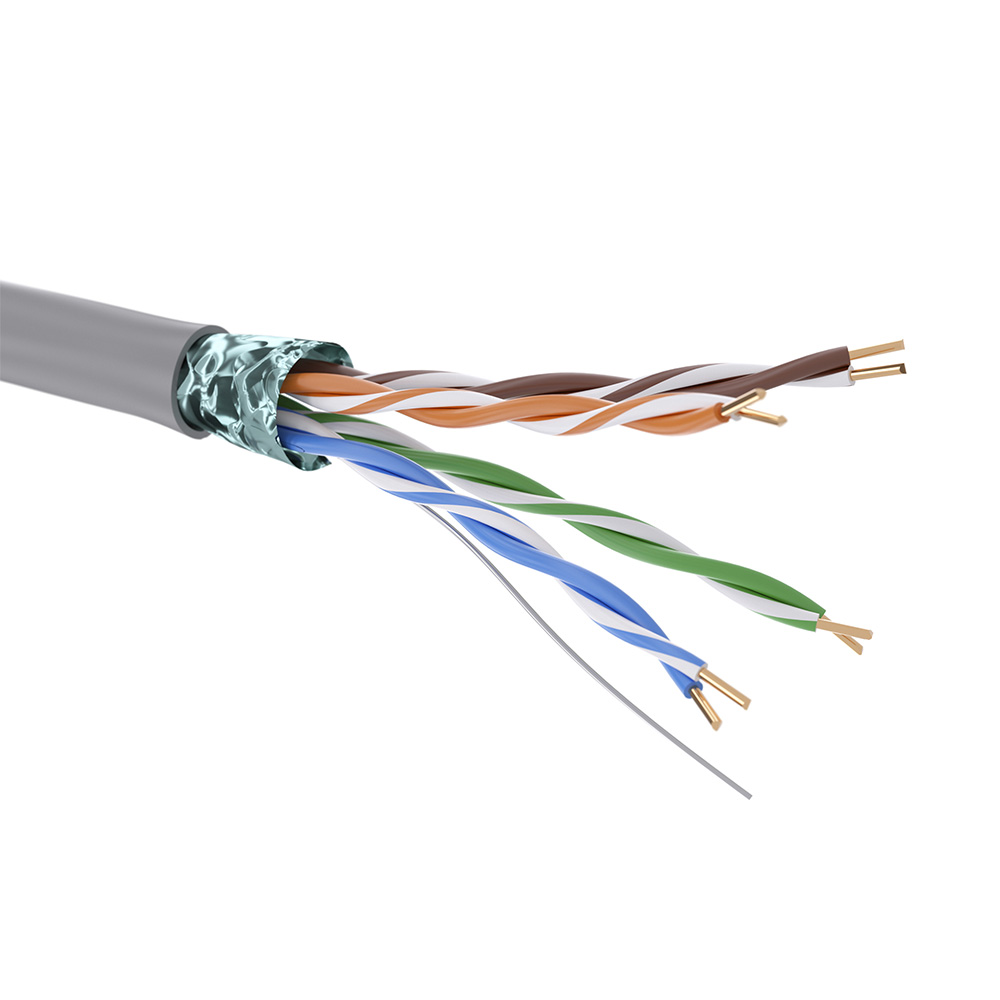

Information cable CAT 5е, F/UTP, LSLTx, box 305м, gray
Code:
RN5EFUA03GY
Code:
RN5EFUA03GY
| Diameter conductor, mm | 0.51 |
| Nominal cross section conductor, mm² | 0.205 |
| AWG-size | 24 |
| Stranding element | Pairs |
| Core insulation material | Polyolefin |
| Core identification | Colour |
| Screen over stranding element | Foil |
| Screen over stranding | None |
| Colour outer sheath | Grey |
| Flame retardant | According to IEC/EN 60332-3-22 |
| Outer diameter approx., mm | 6.2 |
| Permitted cable outer temperature during assembling/handling, °C | -5...70 |
| Permitted cable outer temperature after assembling without vibration, °C | -25...70 |
| Category | 5E |
| NVP value, % | 67 |
| Product type | Copper cable |
| System category | CAT 5e |
| Color | gray |
| System type | shielded |
| Scope of use | Plenum Rated Cable |
| Cable type | F/UTP |
| Standards for fire safety | LTx |
| Diameter of cable, mm | 6.2 |
| 19 мм | ≥ 10 Ø |
