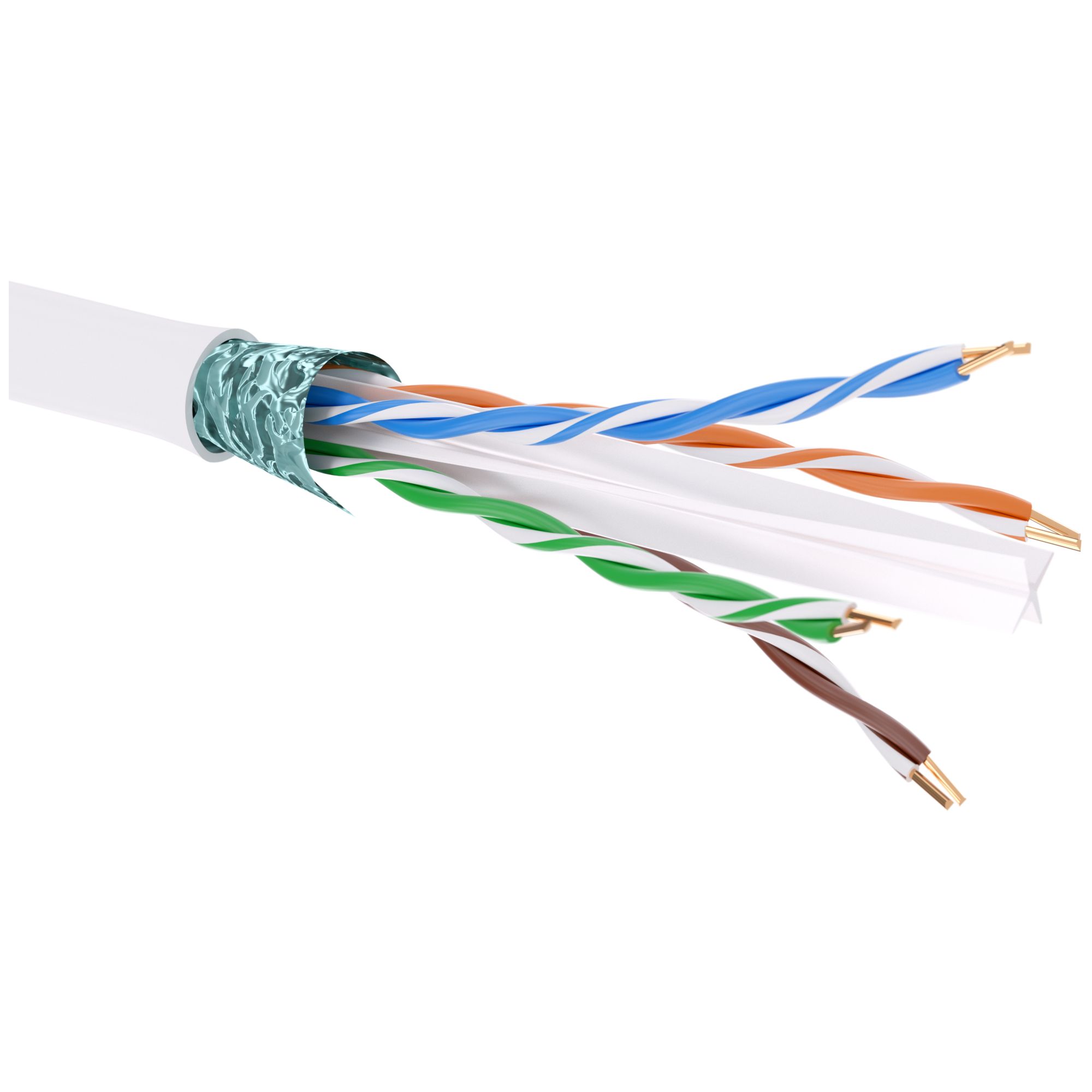

Twisted pair indoor cable cat. 6 shielded F/UTP, PVC outer sheath, white
Code:
RN6FUKPVWH
Code:
RN6FUKPVWH
| Conductor surface | Bare |
| Diameter conductor, mm | 0.58 |
| Conductor category | Class 1 = solid |
| Number of cores | 8 |
| Stranding element | Pairs |
| Core insulation material | Polyolefin |
| Core identification | Colour |
| Screen over stranding element | Foil |
| Screen over stranding | None |
| Protective sheath | No |
| Material outer sheath | Polyolefin |
| Colour outer sheath | White |
| Flame retardant | No |
| Outer diameter approx., mm | 8.1 |
| Permitted cable outer temperature during assembling/handling, °C | -10...60 |
| Permitted cable outer temperature after assembling without vibration, °C | -40...60 |
| Category | 6 |
| NVP value, % | 68 |
| AWG-size | 23 |
| UV resistant | No |
| Conductor material | Copper |
| Suitable for underground installation | No |
| Cable make-up (type) | F/UTP |
| Nominal cross section conductor, mm² | 0.259 |
| Number of stranding elements | 4 |
| Product type | Copper cable |
| System category | CAT 6 |
| Color | White |
| System type | shielded |
| Scope of use | Non-plenum cable |
| Cable type | F/UTP |
| 19 мм | ≥ 10 Ø |
| Wire in insulation outer diameter | 1,24 mm |
| Flammable load volume, l/m | 0.0238 |
| Dielectric cruciate separator | Yes |
| Conductor design | Solid |
| Conductor material | copper |
| Wave impedance, Ohm | 100 |
| Electrical resistance of the core (at 20 °C), Ohm: | 9,0 ·100m |
| Wire insulation resistance, Ohm (20° C) | 5000·km |
| DC test voltage, kV/1 min | 1 |
| Nominal voltage AC/DC, V | 48/72 |
| Applications | 10BASE-T, 100BASE-T, 1000BASE-T, 10GBASE-T, IEEE PoE, PoE+ (802.3 af, 802.3 at, 802.3 bt) |
| Standarts | ISO 11801-1, IEC 61156-5, IEC 61156-9, TIA/EIA-568.2-D, EN 50173 |
