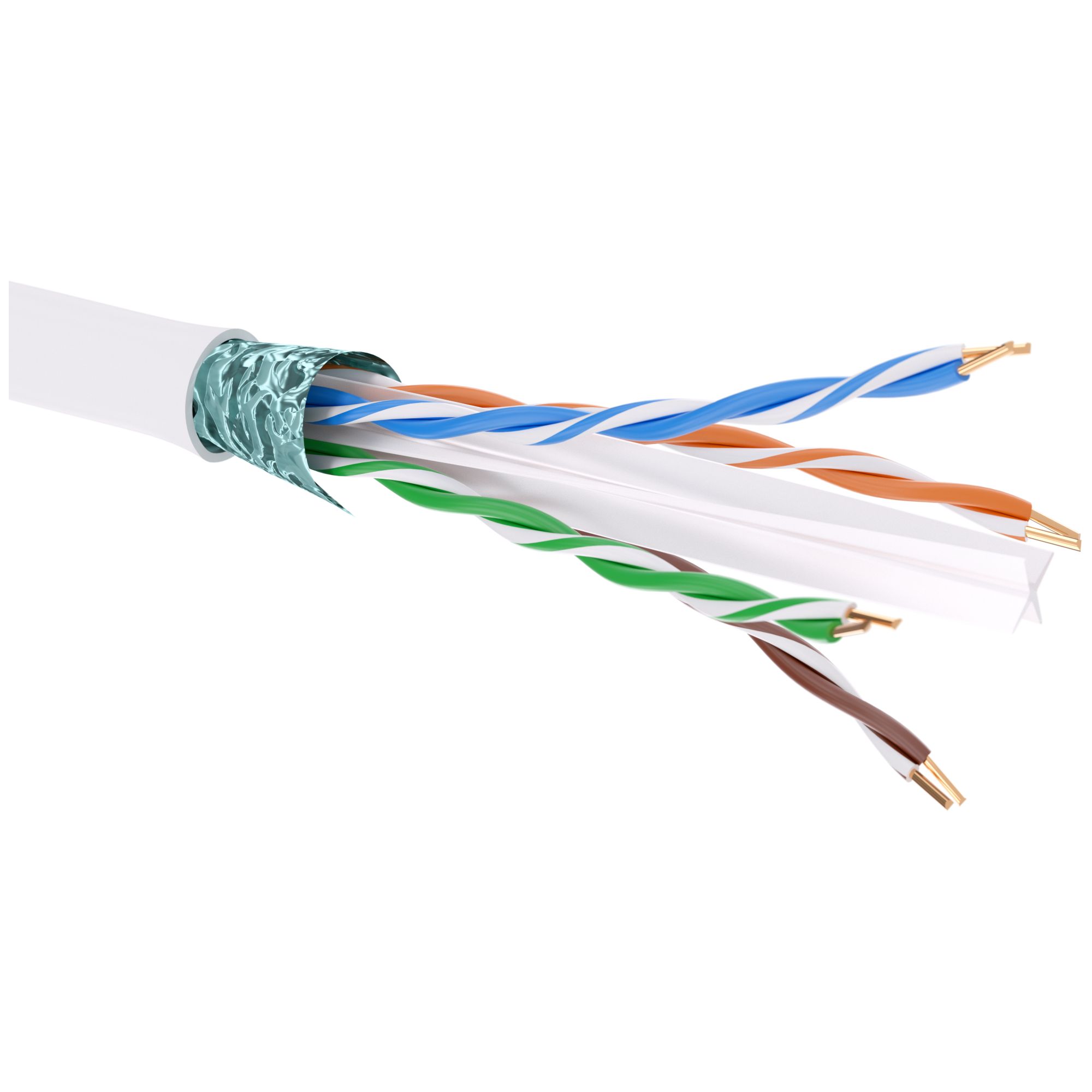

Twisted pair plenum indoor cable cat 6 shielded F/UTP, 4 pairs, halogen free, white
Code: RN6FUK01WH
Twisted pair plenum indoor cable cat 6 shielded F/UTP, 4 pairs, halogen free, white
Code: RN6FUK01WH
| Conductor surface | Bare |
| Diameter conductor, mm | 0.58 |
| Conductor category | Class 1 = solid |
| Number of cores | 8 |
| Stranding element | Pairs |
| Core insulation material | Polyolefin |
| Core identification | Colour |
| Screen over stranding element | None |
| Screen over stranding | Foil |
| Protective sheath | No |
| Material outer sheath | Polyolefin |
| Colour outer sheath | White |
| Halogen free (according to IEC 60754-2) | Yes |
| Flame retardant | According to IEC/EN 60332-3-22 |
| Outer diameter approx., mm | 6.8 |
| Permitted cable outer temperature during assembling/handling, °C | -10...60 |
| Permitted cable outer temperature after assembling without vibration, °C | -40...60 |
| Category | 6 |
| NVP value, % | 68 |
| AWG-size | 23 |
| Product type | Copper cable |
| System category | CAT 6 |
| Color | White |
| System type | shielded |
| Scope of use | Plenum Rated Cable |
| Cable type | F/UTP |
| Standards for fire safety | HF |
| Diameter of cable | 6.8mm |
| 19 мм | ≥ 10 Ø |
