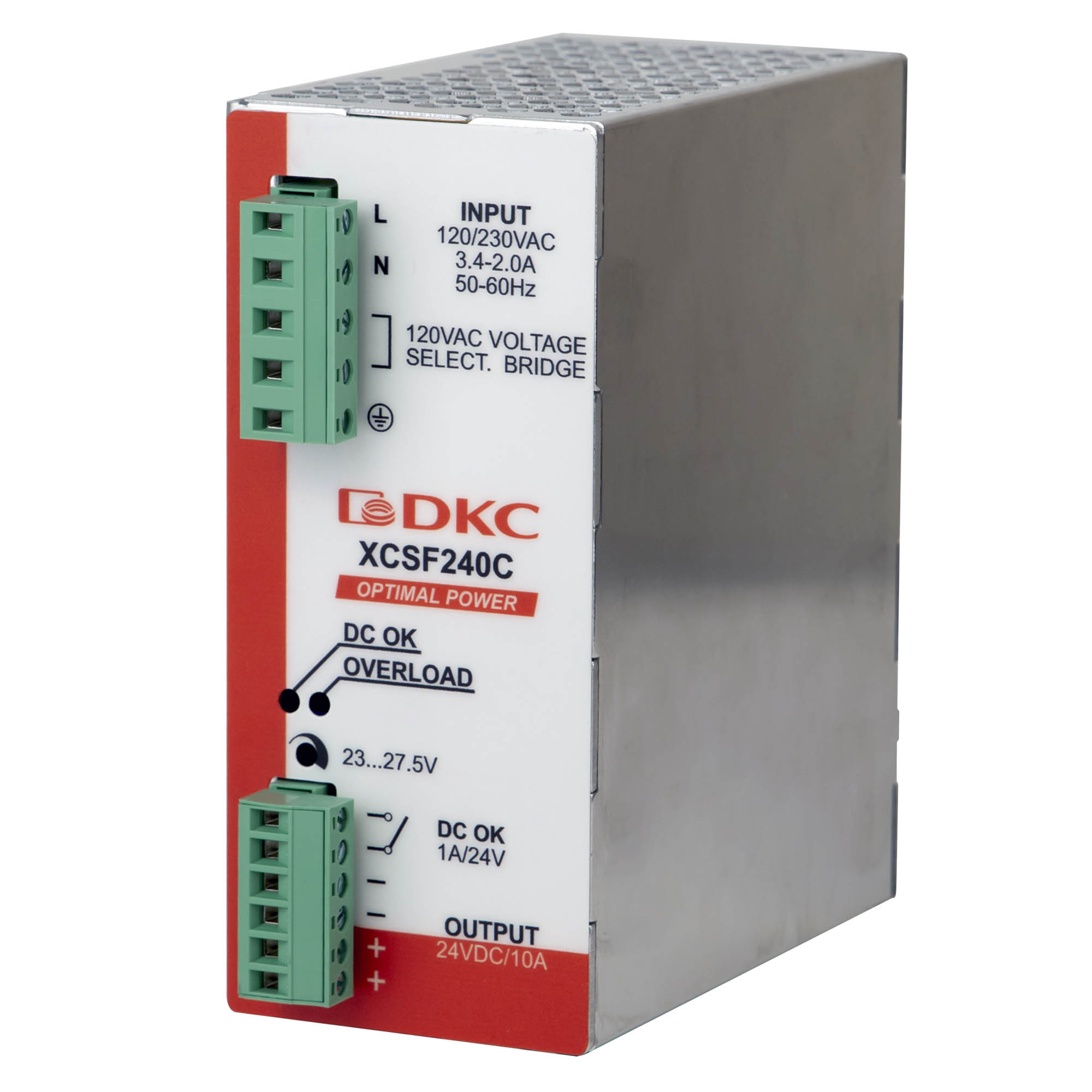

Switch mode power supply "OPTIMAL POWER", single phase, 240W, 10A, 24V with ORing diode
Code:
XCSF240CP
Switch mode power supply "OPTIMAL POWER", single phase, 240W, 10A, 24V with ORing diode
Code:
XCSF240CP
| Width, mm | 63.5 |
| Height, mm | 140 |
| Depth, mm | 135 |
| Modular version | No |
| Voltage type of supply voltage | AC/DC |
| Power output, W | 240 |
| Output voltage stabilized | Yes |
| Rail mounting possible | Yes |
| Degree of protection (IP) | IP20 |
| 1st secondary output voltage, V | 23...27.5 |
| Secondary voltage adjustable | Yes |
| Rated supply voltage at AC 50 Hz, V | 120...230 |
| Rated supply voltage at AC 60 Hz, V | 120...230 |
| Rated supply voltage at DC, V | 300...345 |
| Short-circuit-proof | Yes |
| Max. output current 1, A | 10 |
| Max. output current 2, A | 15 |
| Max. output current 3, A | 25 |
| Type of electric connection | Screw connection |
| Nominal value output voltage 1, V | 24 |
| Nominal value output current 1, A | 10 |
| Power consumption, VA | 690 |
| Width in number of modular spacings | 4 |
| Number of phases | Single phase |
