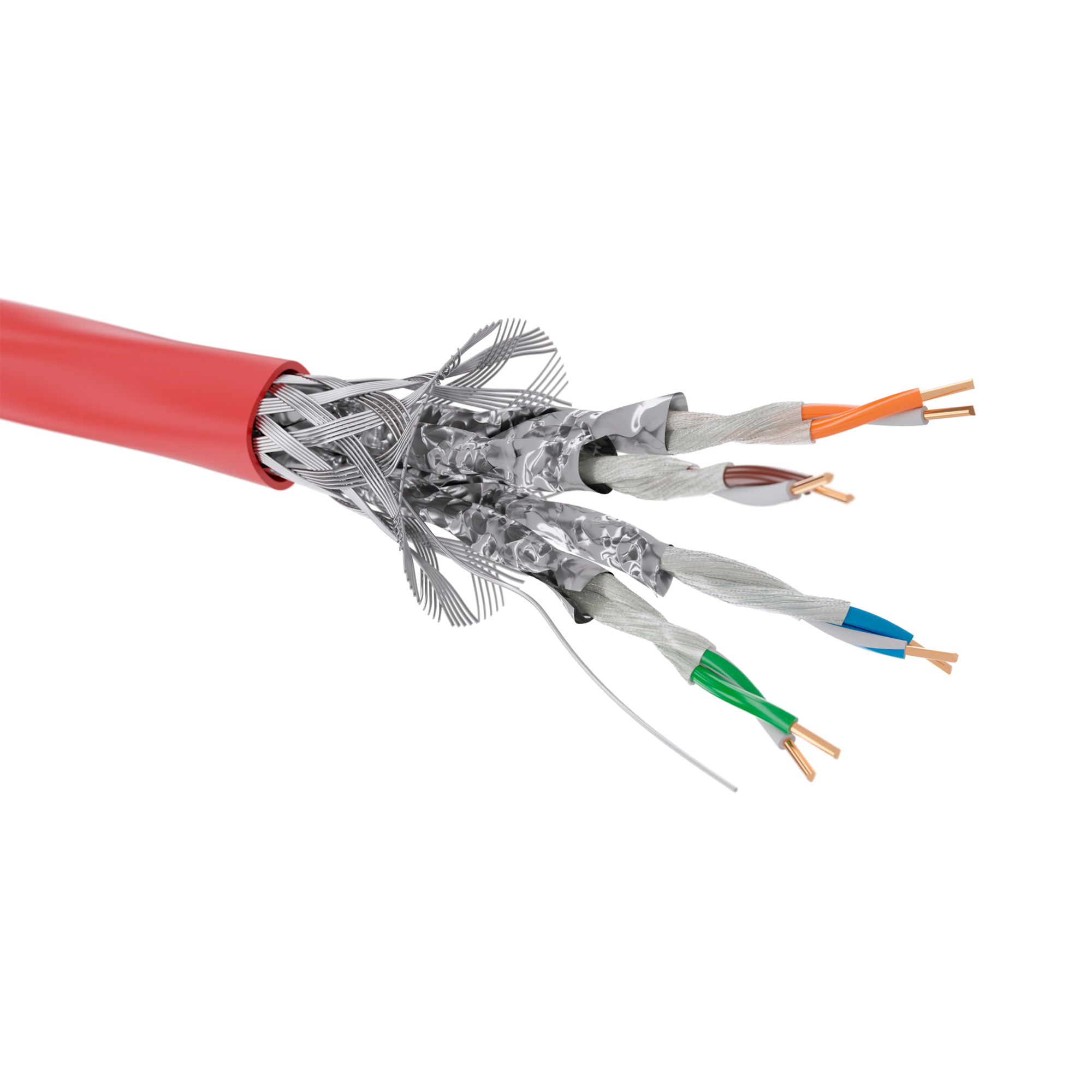

Information cable CAT 7A, S/FTP, FRHF, reel 500m, red

  • To ask a question
Diameter conductor, mm 0.573
Nominal cross section conductor, mm² 0.257
AWG-size 23
Stranding element Pairs
Core insulation Polyolefin
Core identification Colour
Screen over stranding element Braiding
Screen over stranding Foil
Material outer sheath Other
Colour outer sheath Red
Outer diameter approx., mm 8
Operating temperature, flexible, °C -5…70
Operating temperature, fix, °C -25…70
Category 7A (IEC)
Cable make-up (type) S/FTP (SF/UTP)
Conductor material Cu, bare
Flame retardant In accordance with IEC 60332-3-22
NVP value, % 78
Halogen free (acc. EN 50267-2-2) Yes
Type of conductor. Solid conductor
Conductor material. Cu
Number of cores. 8
Product type Copper cable
System category CAT 7А
Color Red
System type shielded
Scope of use Plenum Rated Cable
Cable type S/FTP
Standards for fire safety FR HF
Diameter of cable, mm 8.1
