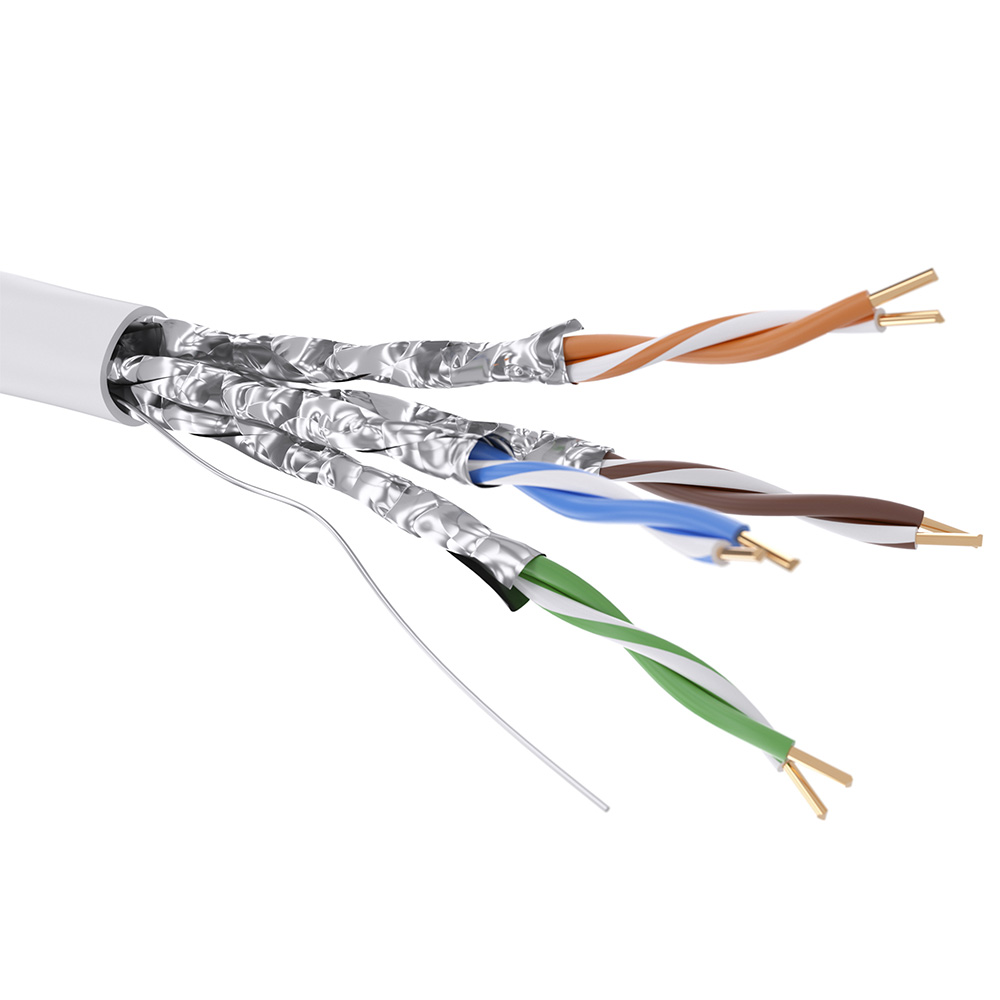

Information cable CAT 6, U/FTP, LSLTx, drum 305м, white

Code: RN6UFA03WH
  • To ask a question
Nominal cross section conductor, mm² 0.257
Core insulation V001108 - ПОЛИОЛЕФИН
Core identification Colour
Stranding element Pairs
Colour outer sheath White
Category 6
Diameter conductor, mm 0.573
Conductor material Cu, bare
Screen over stranding element None
Screen over stranding Foil
Material outer sheath Other
Conductor category Class 1 = solid
Operating temperature, flexible, °C -5…70
Operating temperature, fix, °C -25…70
AWG-size 23
Number of cores 8
Halogen free (acc. EN 50267-2-2) Yes
Outer diameter approx., mm 7.3
Low smoke (acc. EN 61034-2) Yes
Type of conductor. Solid conductor
Conductor material. Cu
Number of cores. 8
Cable make-up (type) U/FTP
NVP value, % 78
