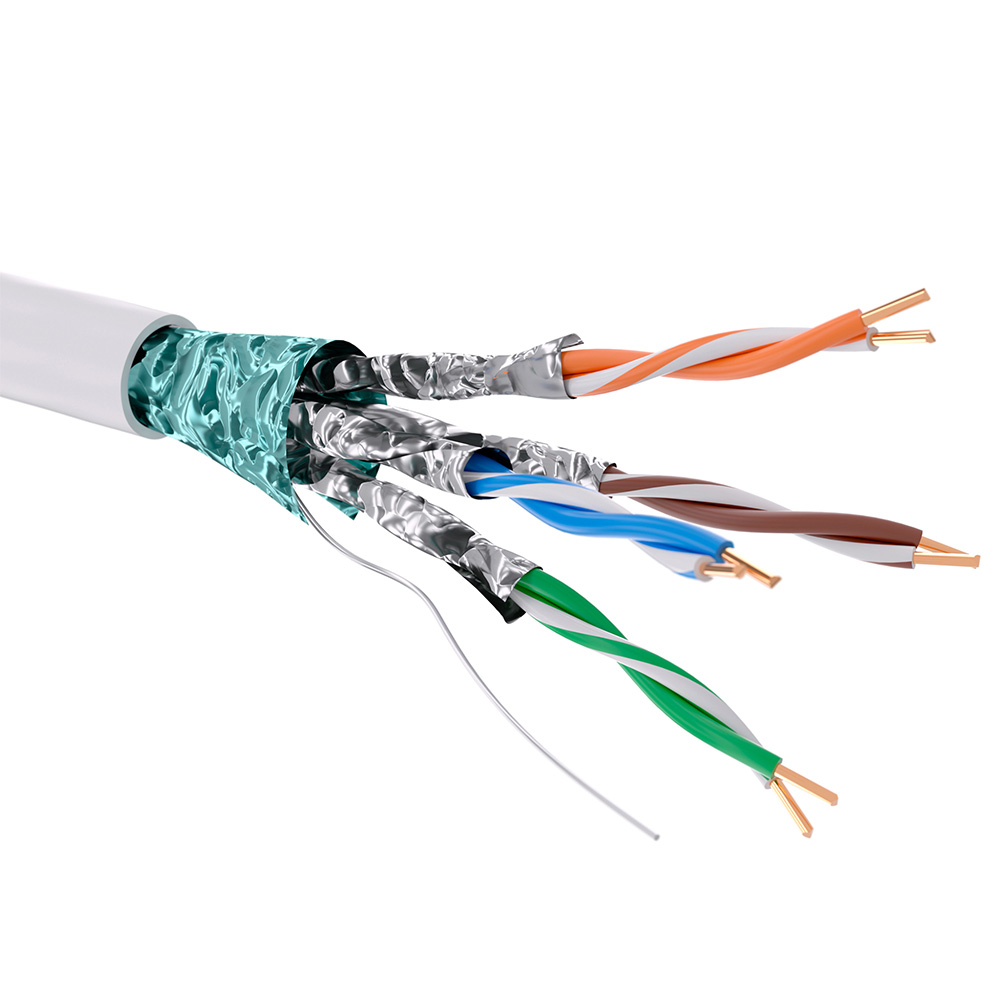

Information cable CAT 6, F/FTP, HF, box 305м, white

Code: RN6FFA01WH
Code: RN6FFA01WH
Removed from the product range
  • To ask a question
Diameter conductor, mm 0.573
Nominal cross section conductor, mm² 0.257
AWG-size 23
Stranding element Pairs
Core insulation material Polyolefin
Core identification Colour
Screen over stranding element Foil
Screen over stranding Foil
Colour outer sheath White
Flame retardant According to IEC/EN 60332-3-22
Outer diameter approx., mm 7.4
Permitted cable outer temperature during assembling/handling, °C -5...70
Permitted cable outer temperature after assembling without vibration, °C -25...70
Category 6
NVP value, % 78
Product type Copper cable
System category CAT 6
Color White
System type shielded
Scope of use Plenum Rated Cable
Cable type F/FTP
Standards for fire safety HF
Diameter of cable, mm 7.4
19 мм ≥ 10 Ø
