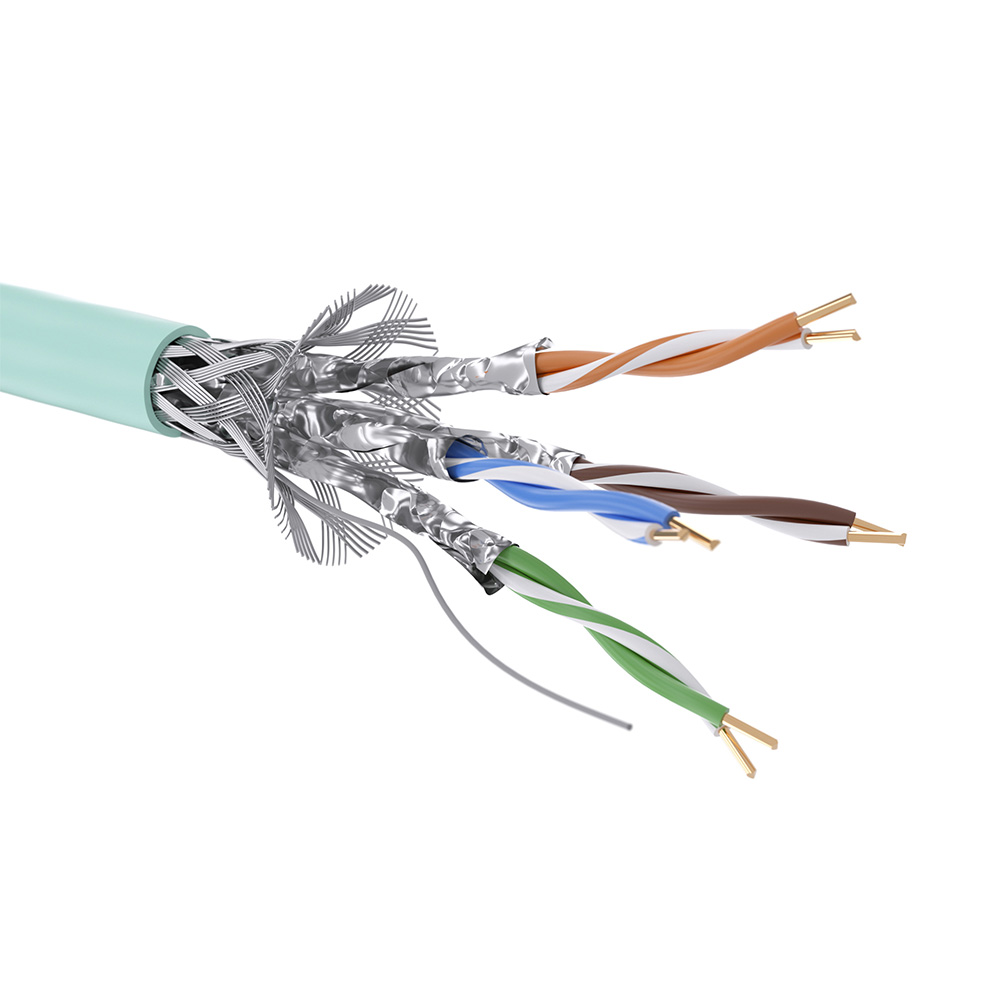

Information cable CAT 6A, S/FTP, HF, drum 500м, aqua

Code: RN6ASFA01AQ
Information cable CAT 6A, S/FTP, HF, drum 500м, aqua
  • To ask a question
Diameter conductor, mm 0.573
Nominal cross section conductor, mm² 0.257
AWG-size 23
Stranding element Pairs
Core insulation Polyolefin
Core identification Colour
Screen over stranding element Braiding
Screen over stranding Foil
Material outer sheath Other
Colour outer sheath Other
Flame retardant In accordance with IEC 60332-3-22
Outer diameter approx., mm 7.4
Operating temperature, flexible, °C -5…70
Operating temperature, fix, °C -25…70
Category 6A (IEC)
NVP value, % 78
Cable make-up (type) S/FTP (SF/UTP)
Conductor material Cu, bare
Halogen free (acc. EN 50267-2-2) Yes
Type of conductor. Solid conductor
Conductor material. Cu
Number of cores. 8
Product type Copper cable
System category CAT 6А
Color aqua
System type shielded
Scope of use Plenum Rated Cable
Cable type S/FTP
Standards for fire safety HF
Diameter of cable, mm 7.4
