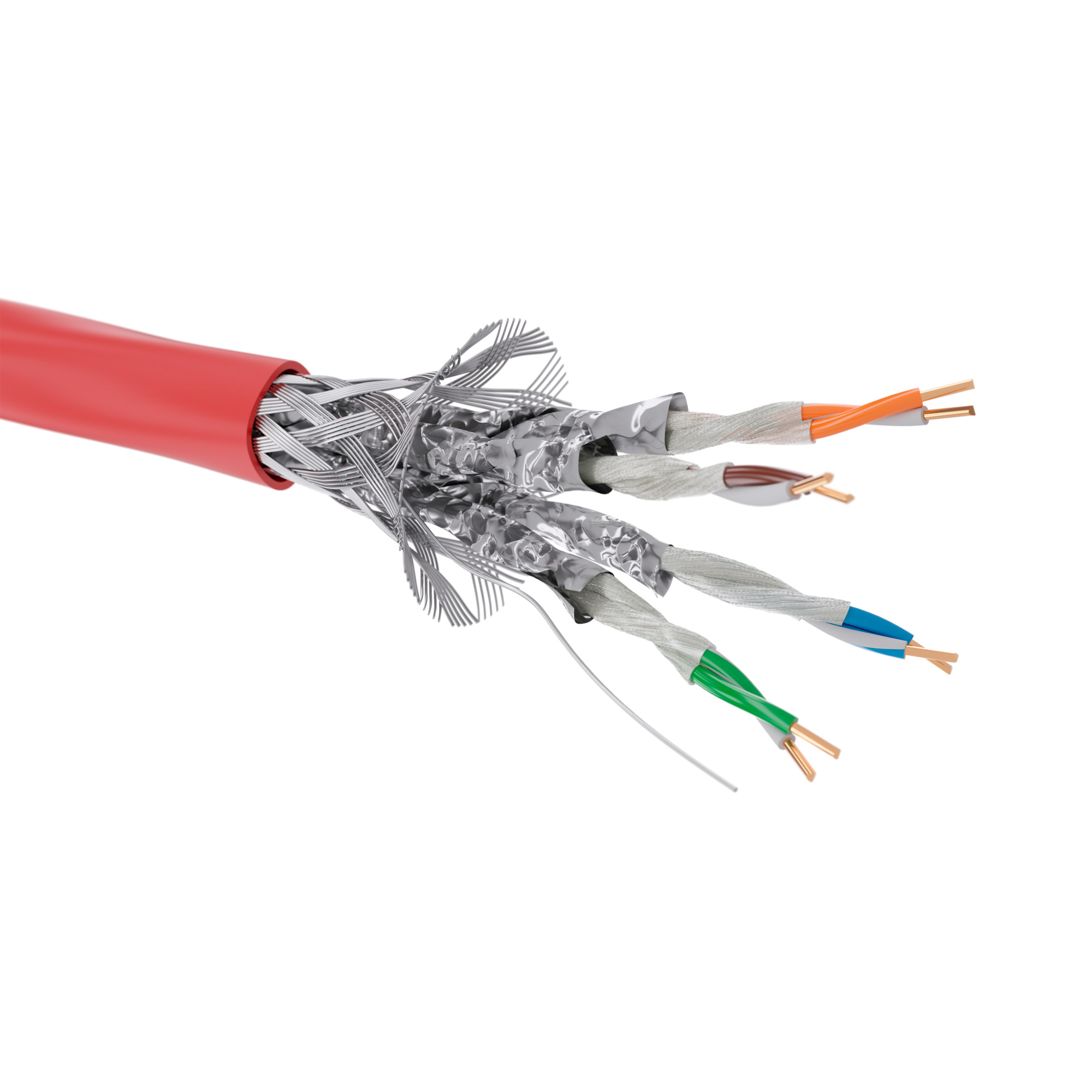

Information cable CAT 5е, S/FTP, FRHF, box 305m, red

Code: RN5ESFA04RD
  • To ask a question
Diameter conductor, mm 0.51
Nominal cross section conductor, mm² 0.205
AWG-size 24
Stranding element Pairs
Core insulation Polyolefin
Core identification Colour
Screen over stranding element Braiding
Screen over stranding Foil
Material outer sheath Other
Colour outer sheath Red
Outer diameter approx., mm 8.2
Operating temperature, flexible, °C -5…70
Operating temperature, fix, °C -25…70
Category 5E
Cable make-up (type) S/FTP (SF/UTP)
Conductor material Cu, bare
Flame retardant In accordance with IEC 60332-3-22
NVP value, % 78
Halogen free (acc. EN 50267-2-2) Yes
Type of conductor. Solid conductor
Conductor material. Cu
Number of cores. 8
Product type Copper cable
System category CAT 5e
Color Red
System type shielded
Scope of use Plenum Rated Cable
Cable type S/FTP
Standards for fire safety FR HF
Diameter of cable, mm 8.2
