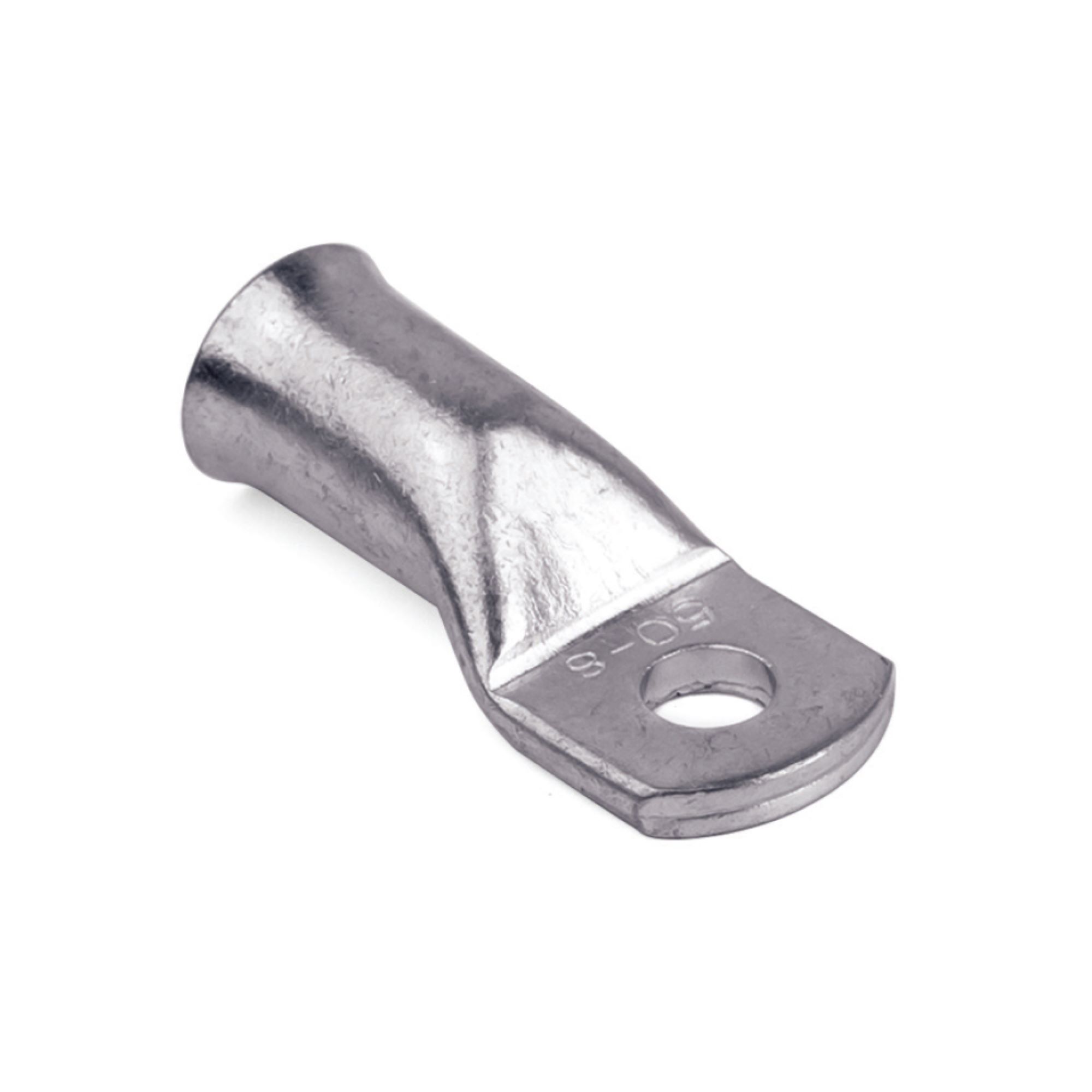

Tip under the soldering, sheet bent 240 sq. mm the screw of 16 mm

Code: 2P16M
Tip under the soldering, sheet bent 240 sq. mm the screw of 16 mm
Tip under the soldering, sheet bent 240 sq. mm the screw of 16 mm
Insulated No
Surface protection Tinned
Nominal cross section, mm² 240
Connecting angle Straight
Flange shape Special shape
Type of conductor Multi-wire
Material Copper
Bolt dimension metric (M..) 16
With sight-hole No
Slender flange model No
Insulation Not isolated
Flange shape Ring shape
