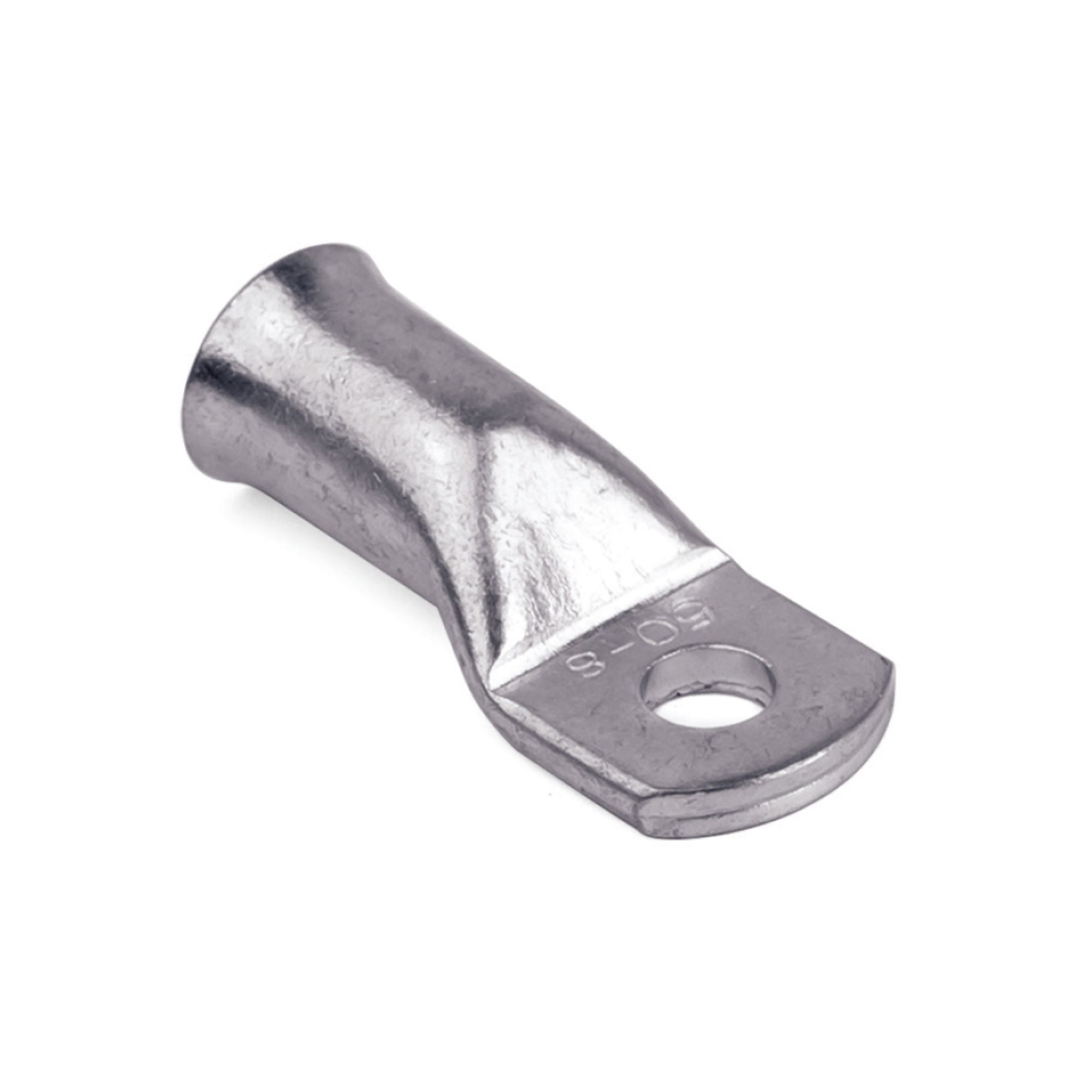

Tip under the soldering, sheet bent 150 sq. mm the screw of 12 mm

Code: 2N12M
Tip under the soldering, sheet bent 150 sq. mm the screw of 12 mm
Tip under the soldering, sheet bent 150 sq. mm the screw of 12 mm
Insulated No
Surface protection Tinned
Nominal cross section, mm² 150
Connecting angle Straight
Flange shape Special shape
Type of conductor Multi-wire
Material Copper
Bolt dimension metric (M..) 12
With sight-hole No
Slender flange model No
Insulation Not isolated
Flange shape Ring shape
