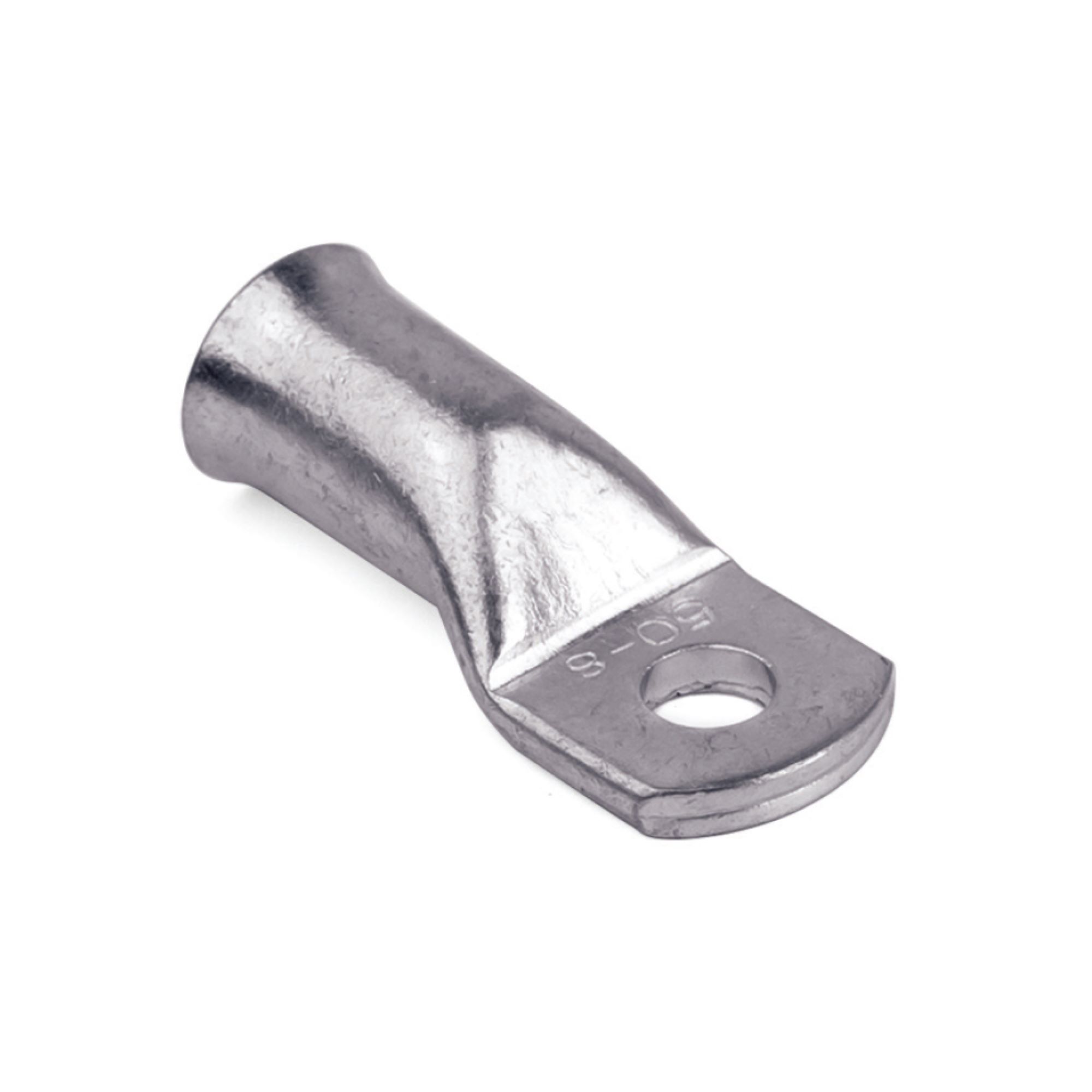

Tip under the soldering, sheet bent 95 sq. mm the screw of 16 mm

Code: 2L16M
Tip under the soldering, sheet bent 95 sq. mm the screw of 16 mm
Tip under the soldering, sheet bent 95 sq. mm the screw of 16 mm
Insulated No
Surface protection Tinned
Nominal cross section, mm² 95
Connecting angle Straight
Flange shape Special shape
Type of conductor Multi-wire
Material Copper
Bolt dimension metric (M..) 16
With sight-hole No
Slender flange model No
Insulation Not isolated
Flange shape Ring shape
Drawings
Seria Name Eplan
Quadro - cable terminals
The System "Quadro"
RAR
27.23 MB
Certificates
Name Document
Quadro_ Exemption Letter for shrink tubes_DIN-rail, braid, frames and frames for EUI, drawing, accessories_1
PDF
1.30 MB
Declaration of conformity to TR TS 004/2011 for pre-insulated spade terminals_1
PDF
2.65 MB
Declaration of conformity for pre-insulated spade terminals
PDF
1.89 MB
