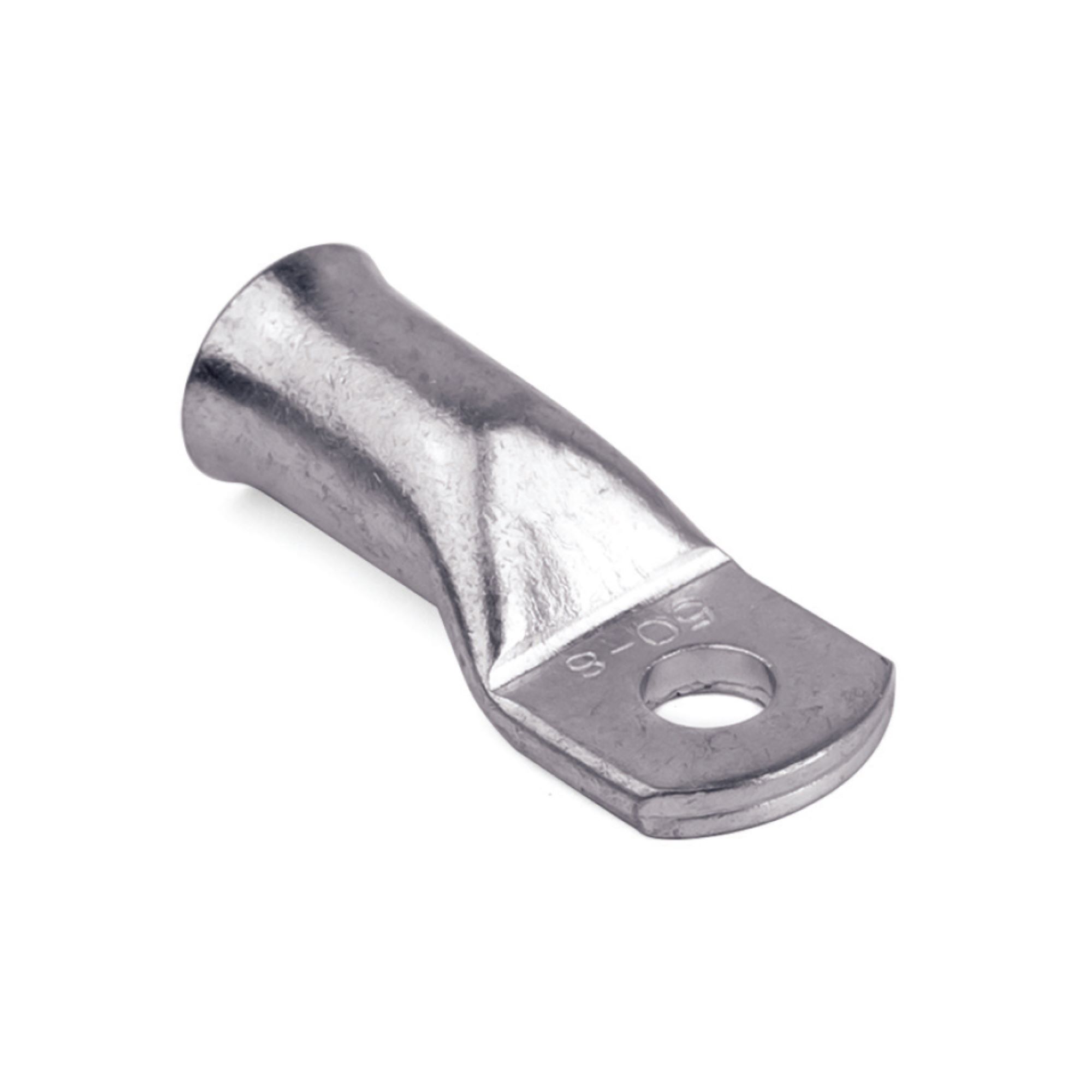

Tip under the soldering, sheet bent 25 sq. mm the screw of 6 mm

Code: 2F6M
Tip under the soldering, sheet bent 25 sq. mm the screw of 6 mm
Tip under the soldering, sheet bent 25 sq. mm the screw of 6 mm
Insulated No
Surface protection Tinned
Nominal cross section, mm² 25
Connecting angle Straight
Flange shape Ring shape
Type of conductor Multi-wire
Material Copper
Bolt dimension metric (M..) 6
With sight-hole No
Slender flange model No
Insulation Not isolated
Flange shape Ring shape
