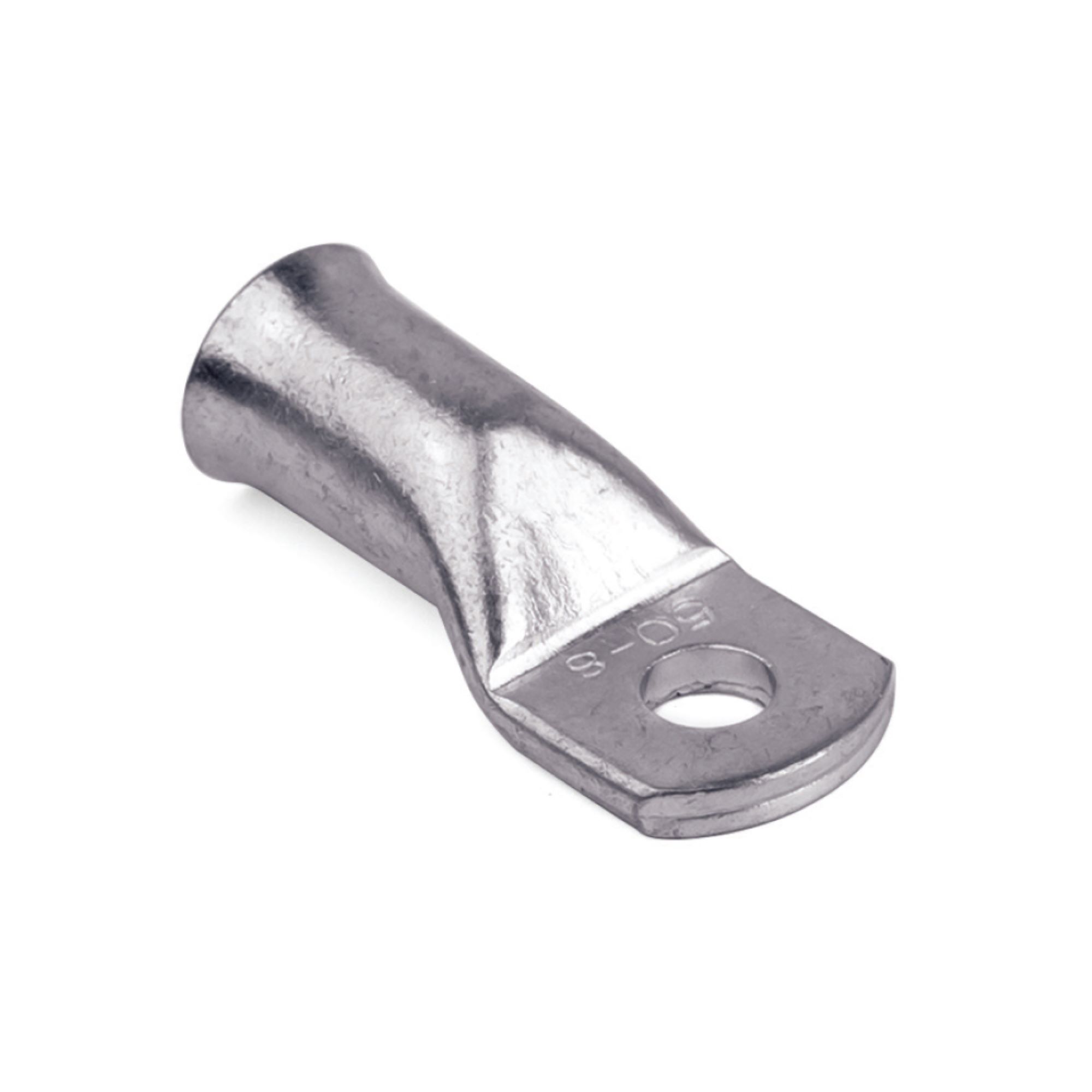

Tip under the soldering, sheet bent 2,5 sq. mm the screw of 6 mm

Code: 2BT6M

Tip under the soldering, sheet bent 2,5 sq. mm the screw of 6 mm

Code: 2BT6M
Insulated Yes
Surface protection Tinned
Nominal cross section, mm² 2.5
Connecting angle 180° (horizontal)
Flange shape Ring shape
Material Copper
Bolt dimension (metric) 6
With sight-hole Yes
Slender flange model Yes
Insulation Not isolated
Flange shape Ring shape
Product type Non insulated terminals
nominal cross section 2,5 mm²
Drawings
Seria Name Eplan
Cable terminals -"Quadro"
