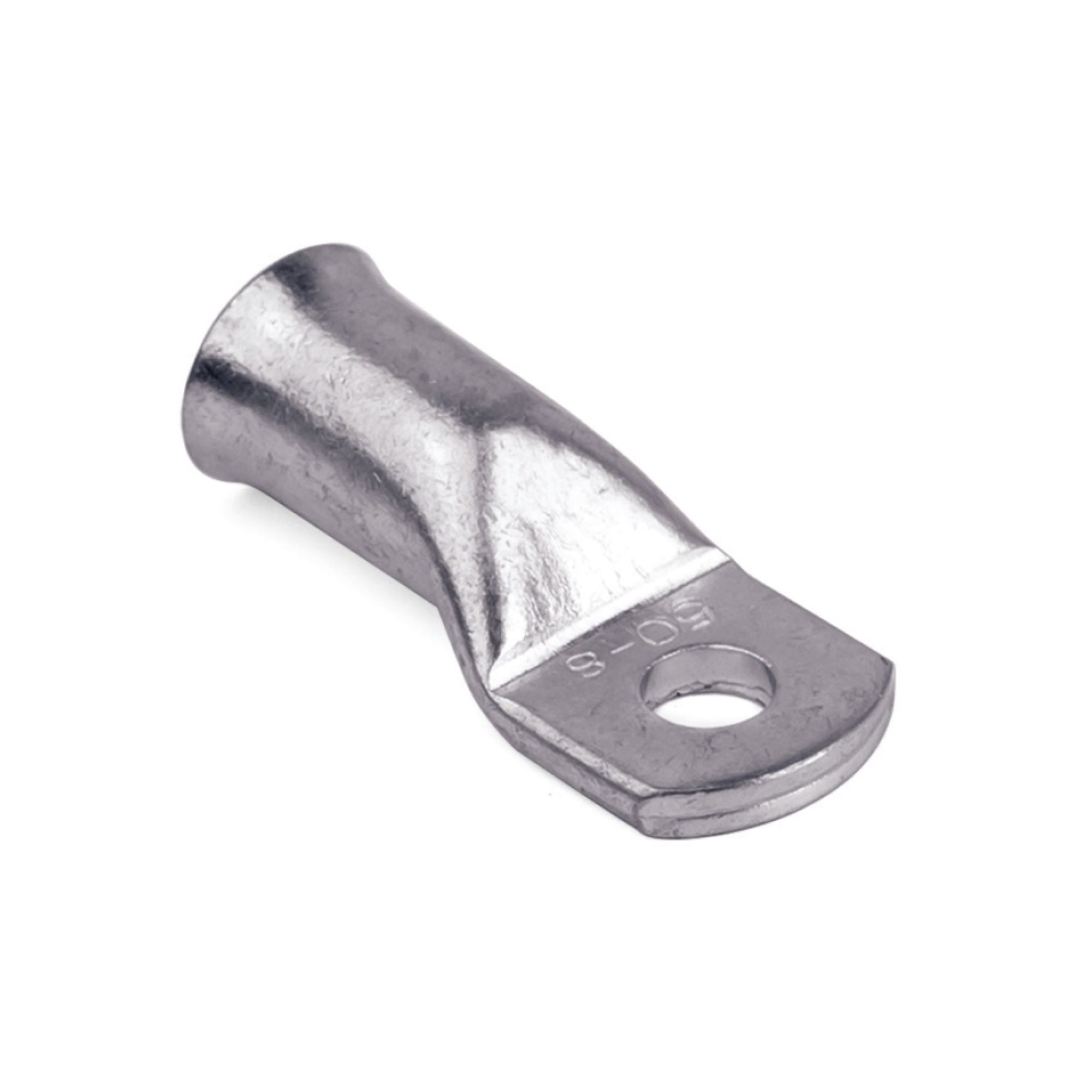

Tip under the soldering, sheet bent 0,75 sq. mm the screw of 4 mm
Code: 2ATZ4M
Tip under the soldering, sheet bent 0,75 sq. mm the screw of 4 mm
Code: 2ATZ4M
| Insulated | Yes |
| Surface protection | Tinned |
| Nominal cross section, mm² | 1.5 |
| Connecting angle | 180° (horizontal) |
| Flange shape | Ring shape |
| Material | Copper |
| Bolt dimension (metric) | 4 |
| With sight-hole | Yes |
| Slender flange model | Yes |
| Insulation | Not isolated |
| Flange shape | Ring shape |
| Product type | Non insulated terminals |
| nominal cross section | 0,75 mm² |
Drawings
| Seria | Name | Eplan |
|---|---|---|
|
Cable terminals -"Quadro"
|
