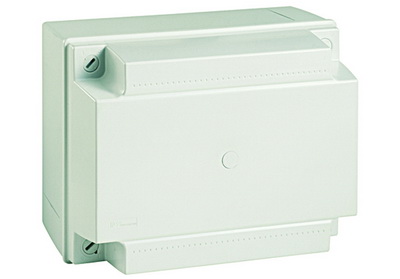

Junction box with smooth walls, IP56, 240х190х160mm
Code: 54230
Junction box with smooth walls, IP56, 240х190х160mm
Code: 54230
Colour | Grey |

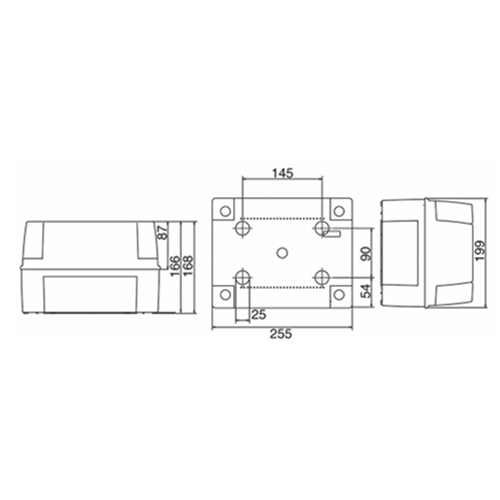

Width, mm | 255 |
Depth, mm | 168 |
Surface protection | Untreated |
Length, mm | 199 |
Sealable | Yes |
Circuit integrity | None |
Material | Plastic |
Explosion-tested version | Yes |
Cover attachment | Screwed |
With screening | Yes |
Degree of protection (IP) | IP56 |
Inlet from the rear | Yes |
For Ex-zone gas | None |
Tackable | Yes |
For Ex-Zone dust | None |
Shape | Rectangular |
For tube diameter | Other |
Type of housing feed-through | None |
Equipped with | None |
Color | gray |
Height | 199 mm |
Width | 255 mm |
-5°С ... +60°С | -5°С …+60°С |
72 мм | 240 mm |
Degree of protection | IP56 |
от -25°С до +60°С | -25°С …+60°С |
72 мм | 190 mm |
10 мм | 160 mm |
Depth | 168 mm |
Product type | Junction box with smooth walls |
ТУ 2248-012-47022248-2009 | Technical specifications 3464-028-47022248-2011 |
3 года | 3 years |
Climate version | У2 |
Certificates
Name | Document |
---|---|
