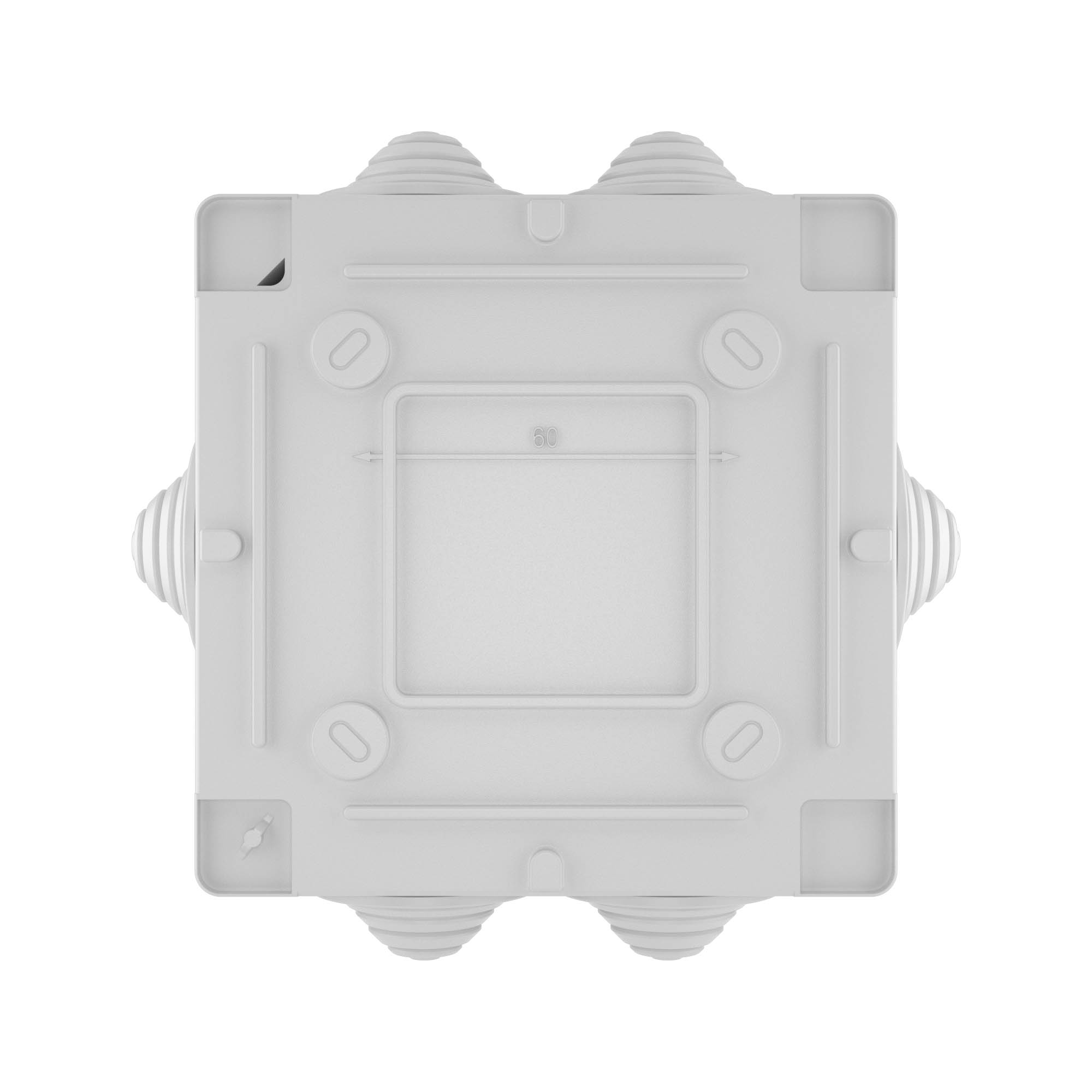

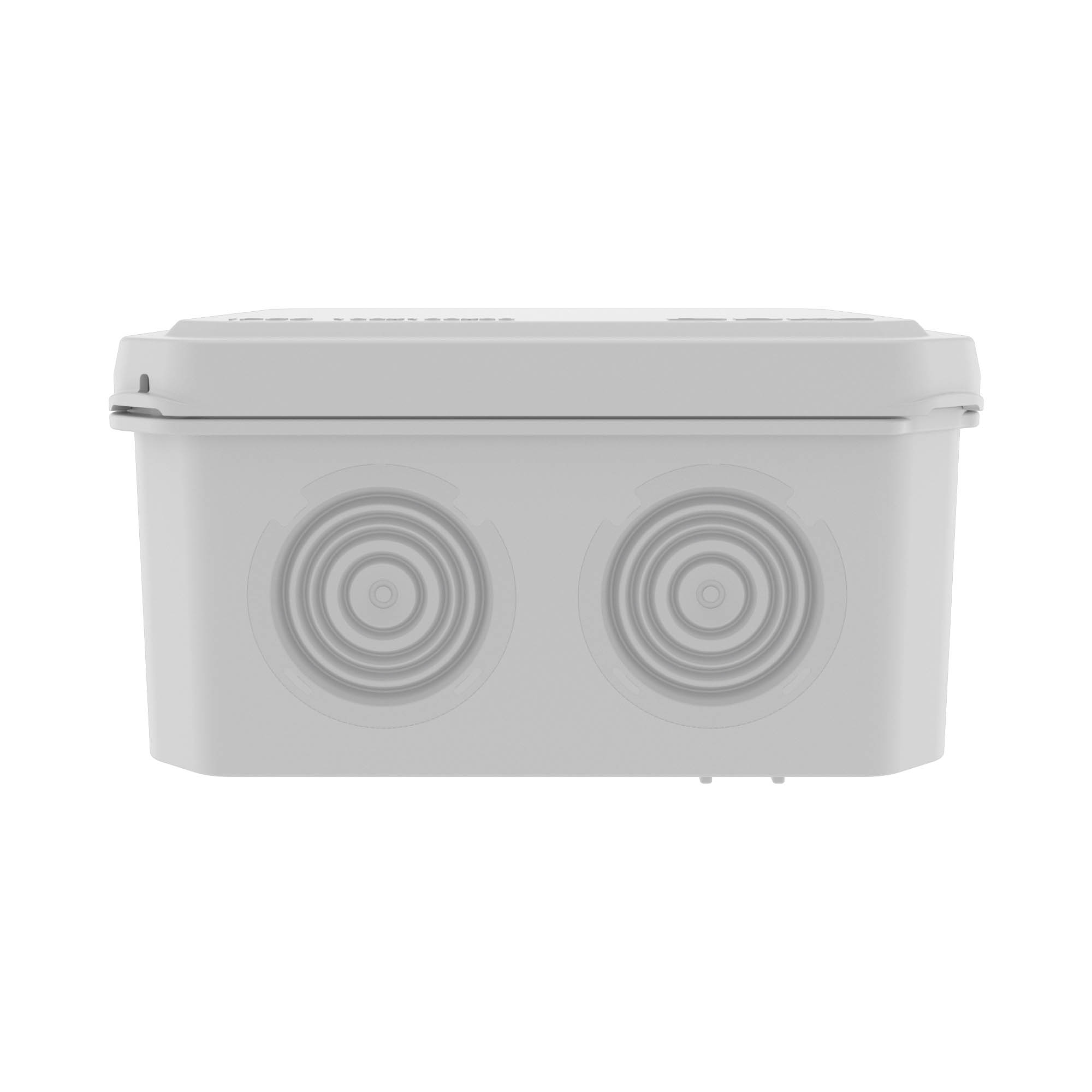

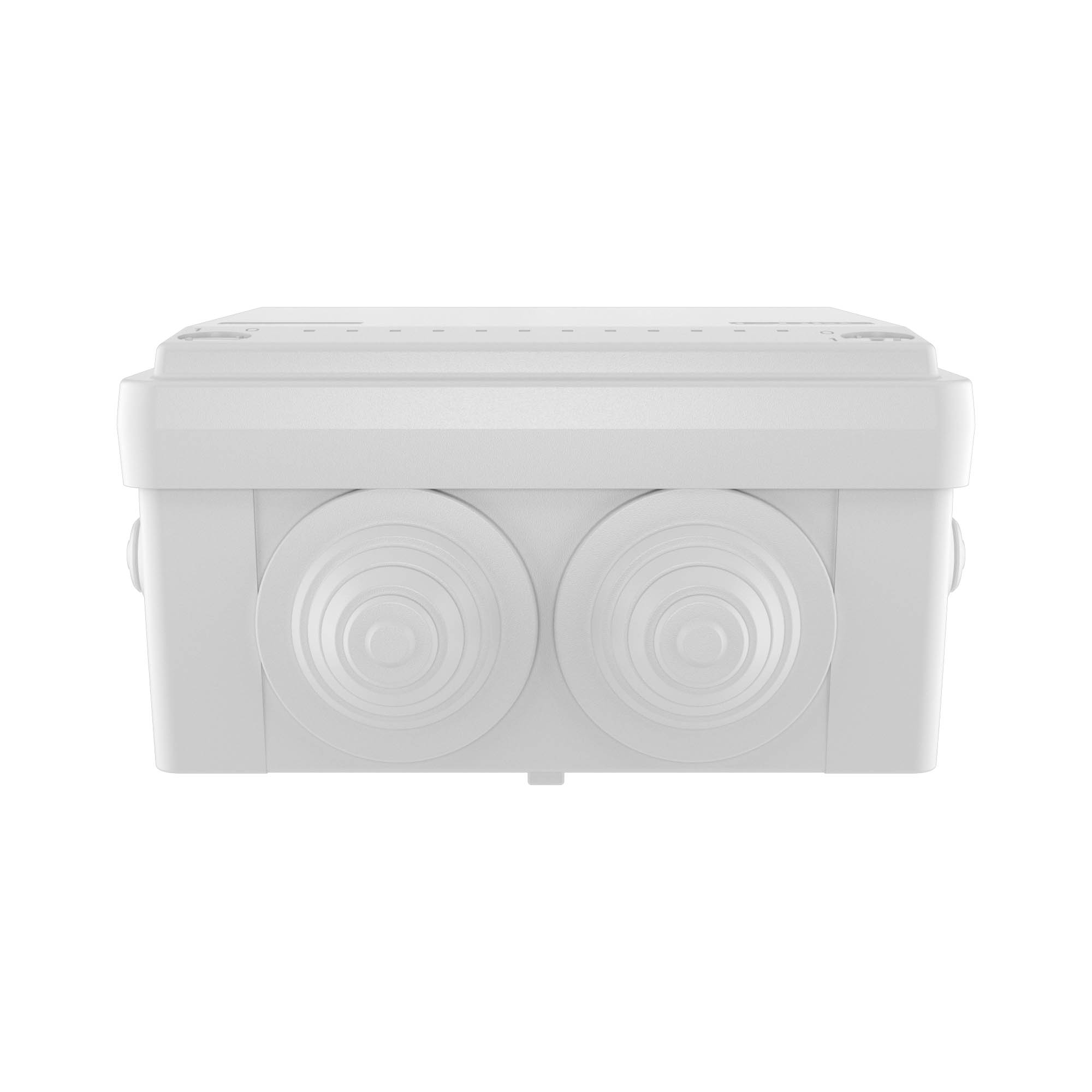

Junction box with 8+2 cable inputs Ø 25/20 mm, IP55, 100х100х50 mm

Code: 53800R

Junction box with 8+2 cable inputs Ø 25/20 mm, IP55, 100х100х50 mm

Code: 53800R
Colour Grey
Width, mm 100
Depth, mm 50
Length, mm 100
Material Plastic
Number of inlets 10
Cover attachment Snapped on
Degree of protection (IP) IP55
Shape Rectangular
For tube diameter 20/25 mm
Type of housing feed-through Seal membrane
Mounting method Wall-/ceiling mounting
Operational temperature, °C -25...60
Surface protection Untreated
Color gray

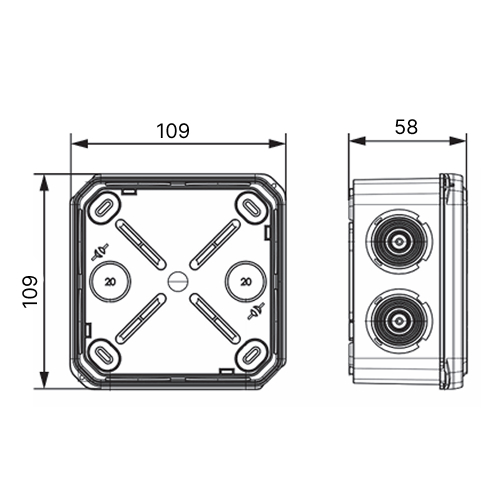

Height 114 mm
Width 114 mm
-5°С ... +60°С -5°С …+60°С
72 мм 100 mm
Degree of protection IP55
от -25°С до +60°С -25°С …+60°С
72 мм 100 mm
10 мм 50 mm
Depth 62 mm
Product type Junction box with cable inputs
ТУ 2248-012-47022248-2009 Technical specifications 3464-028-47022248-2011
3 года 3 years
Climate version У2
