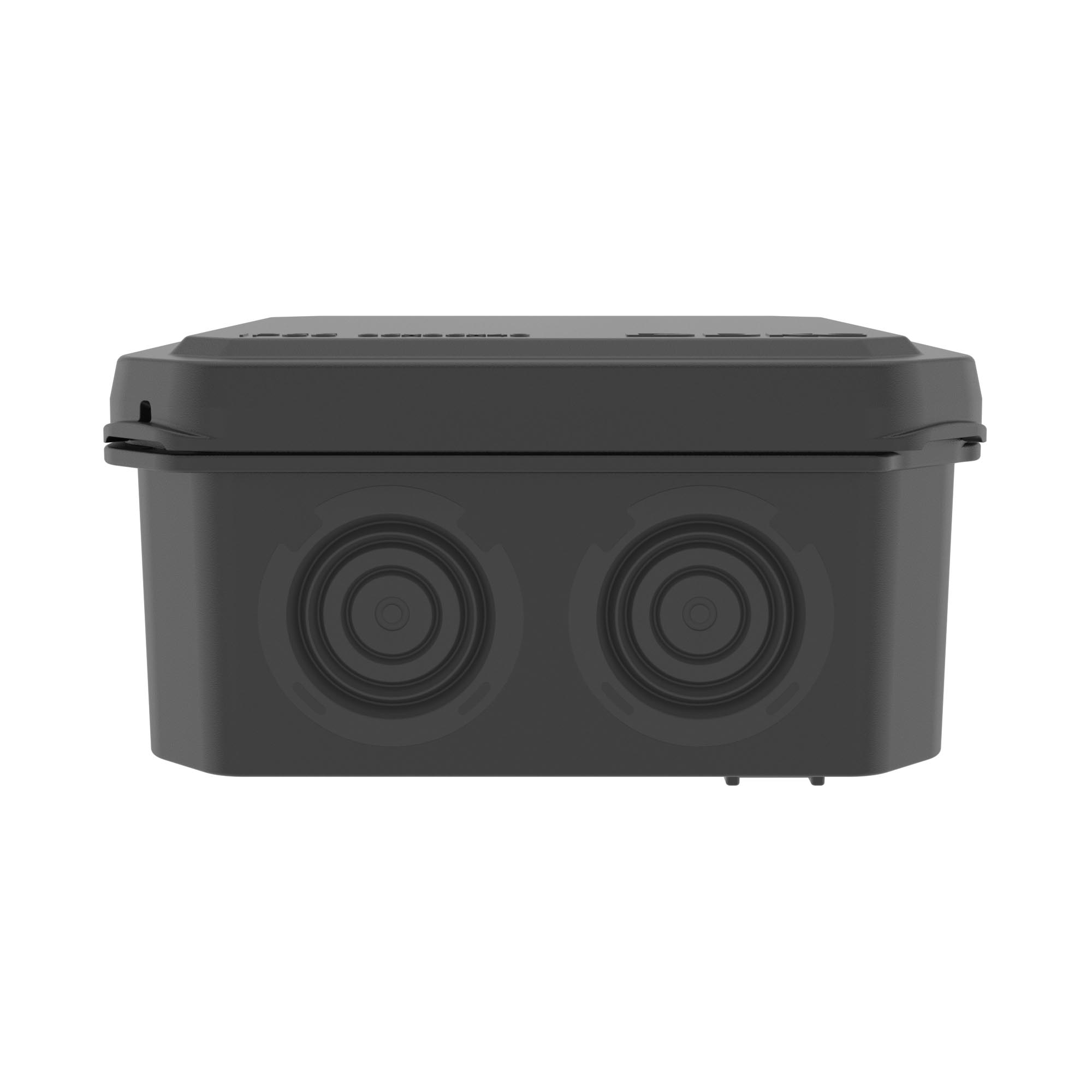

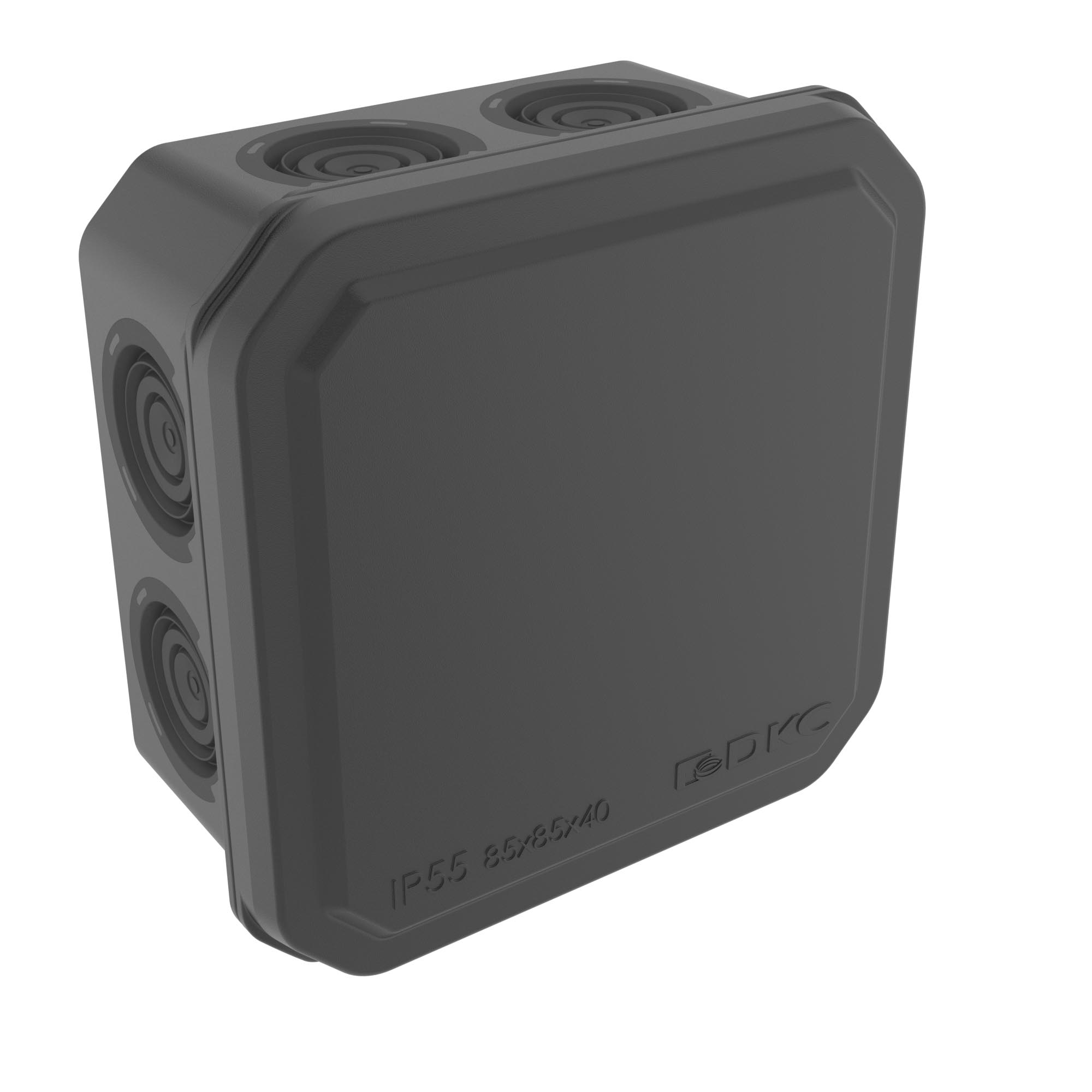

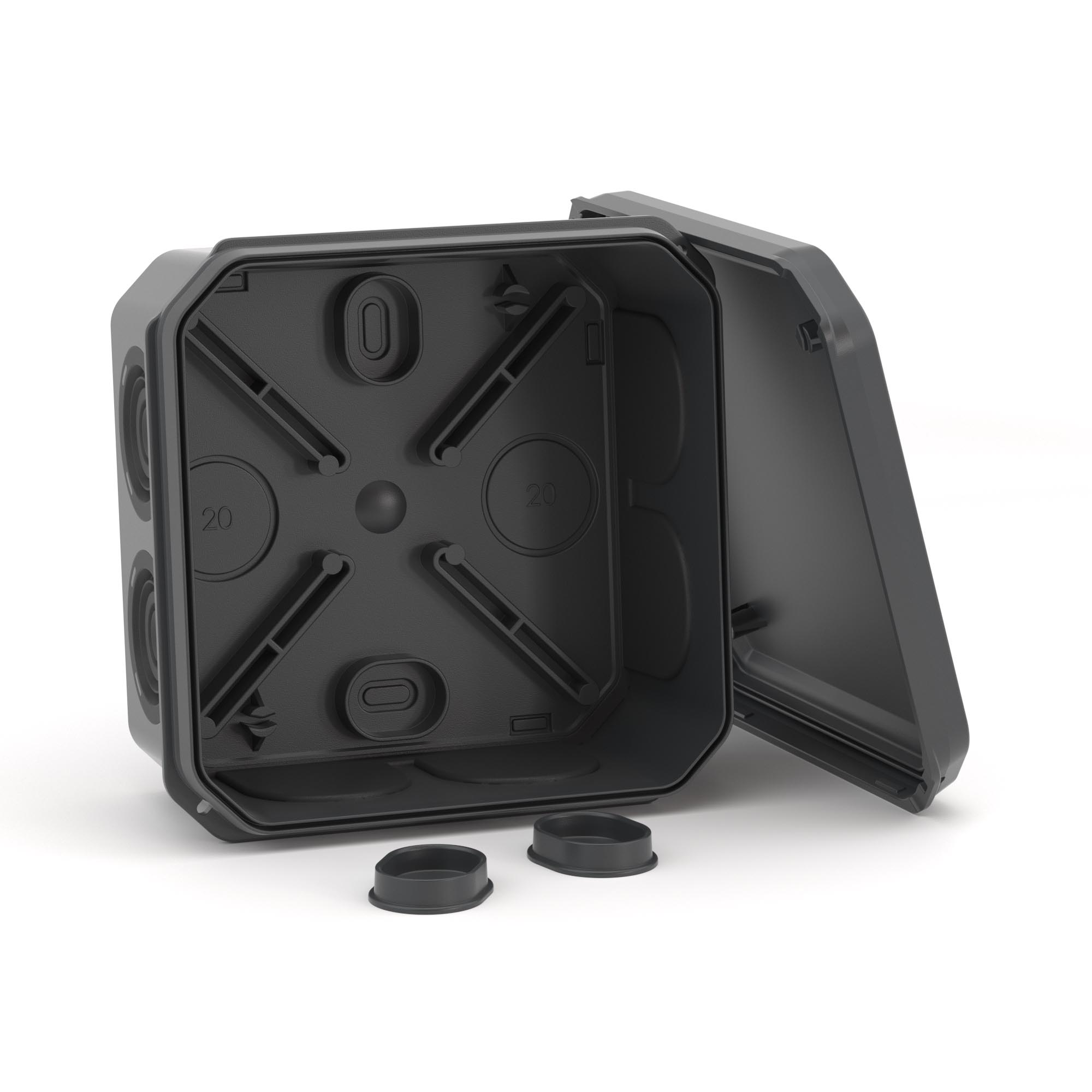

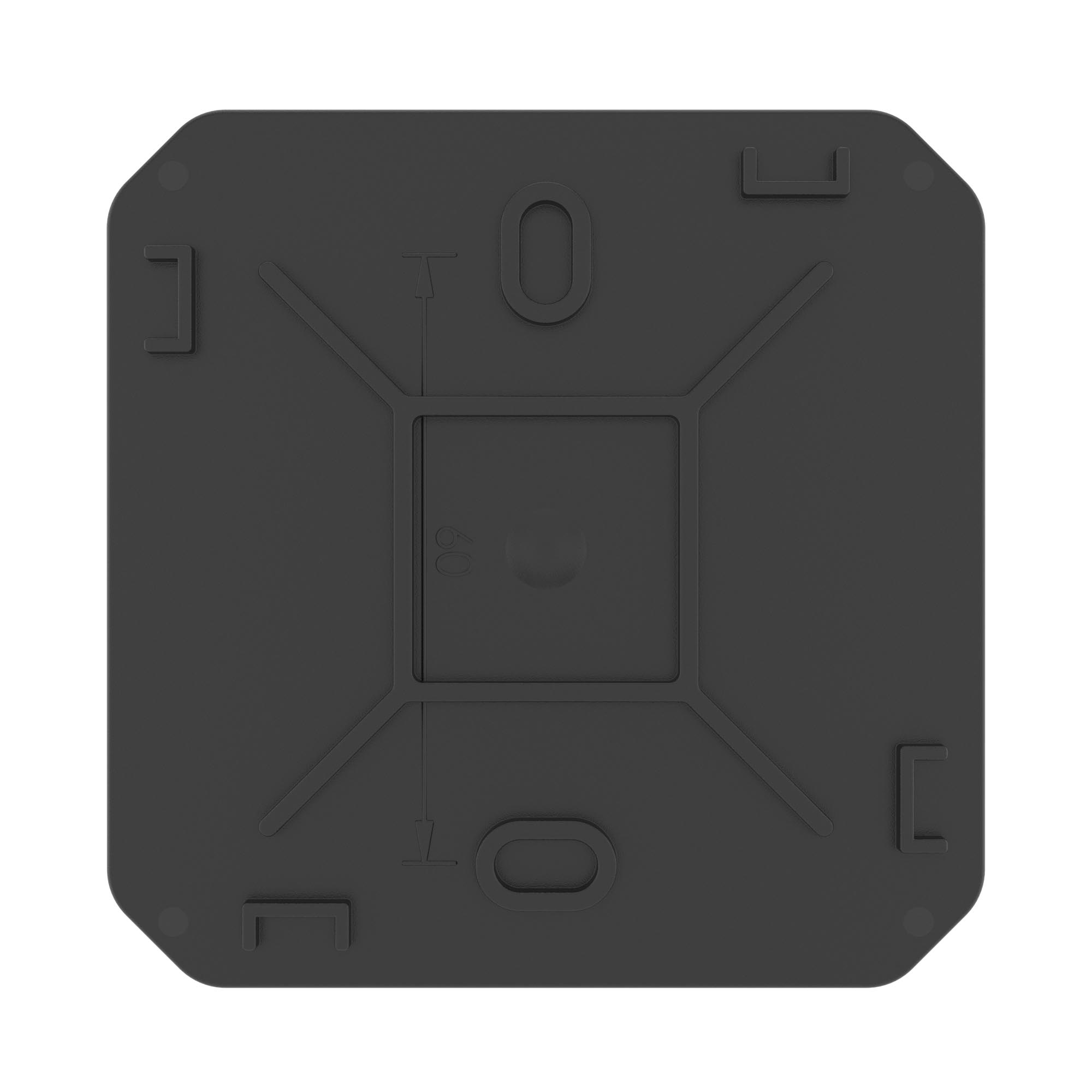

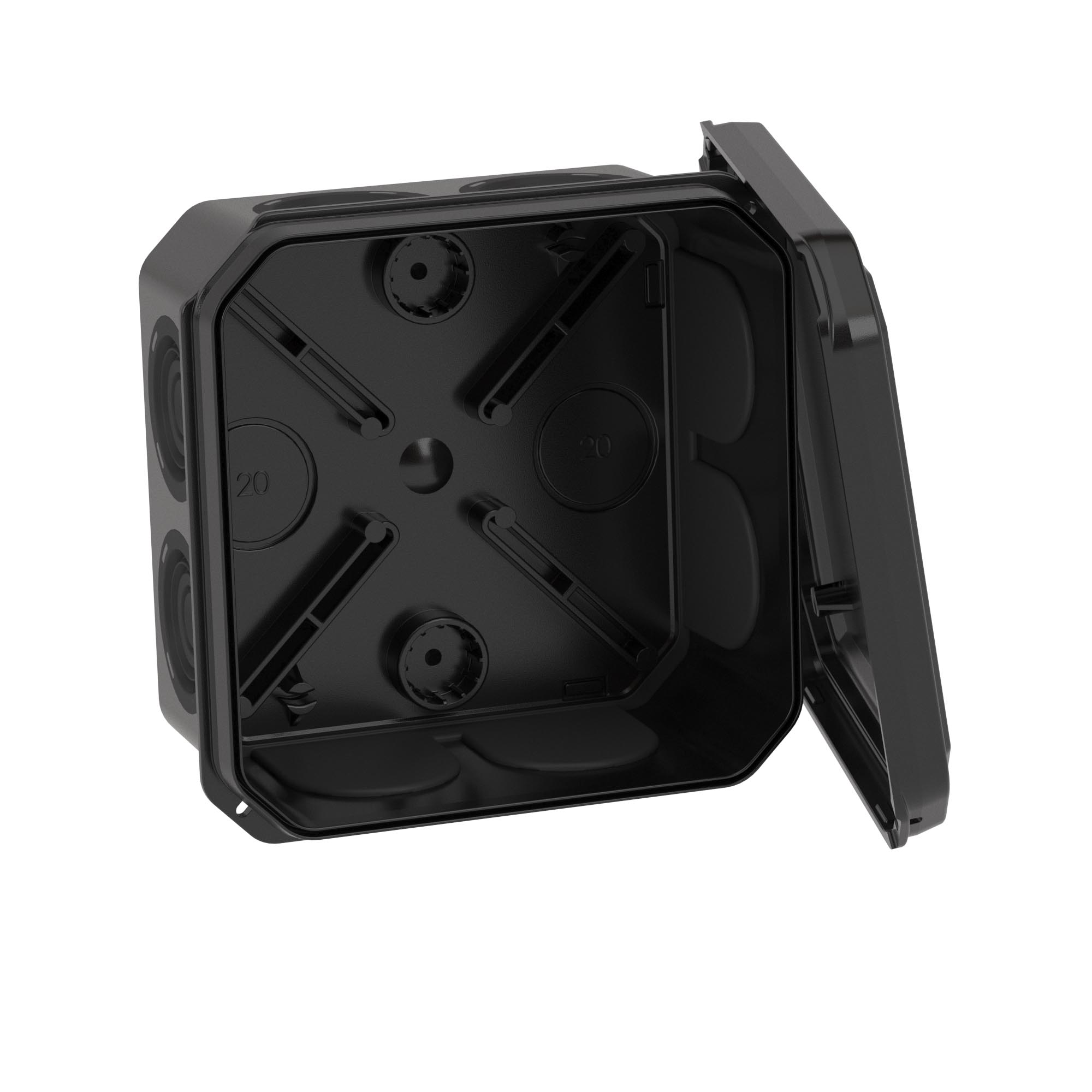

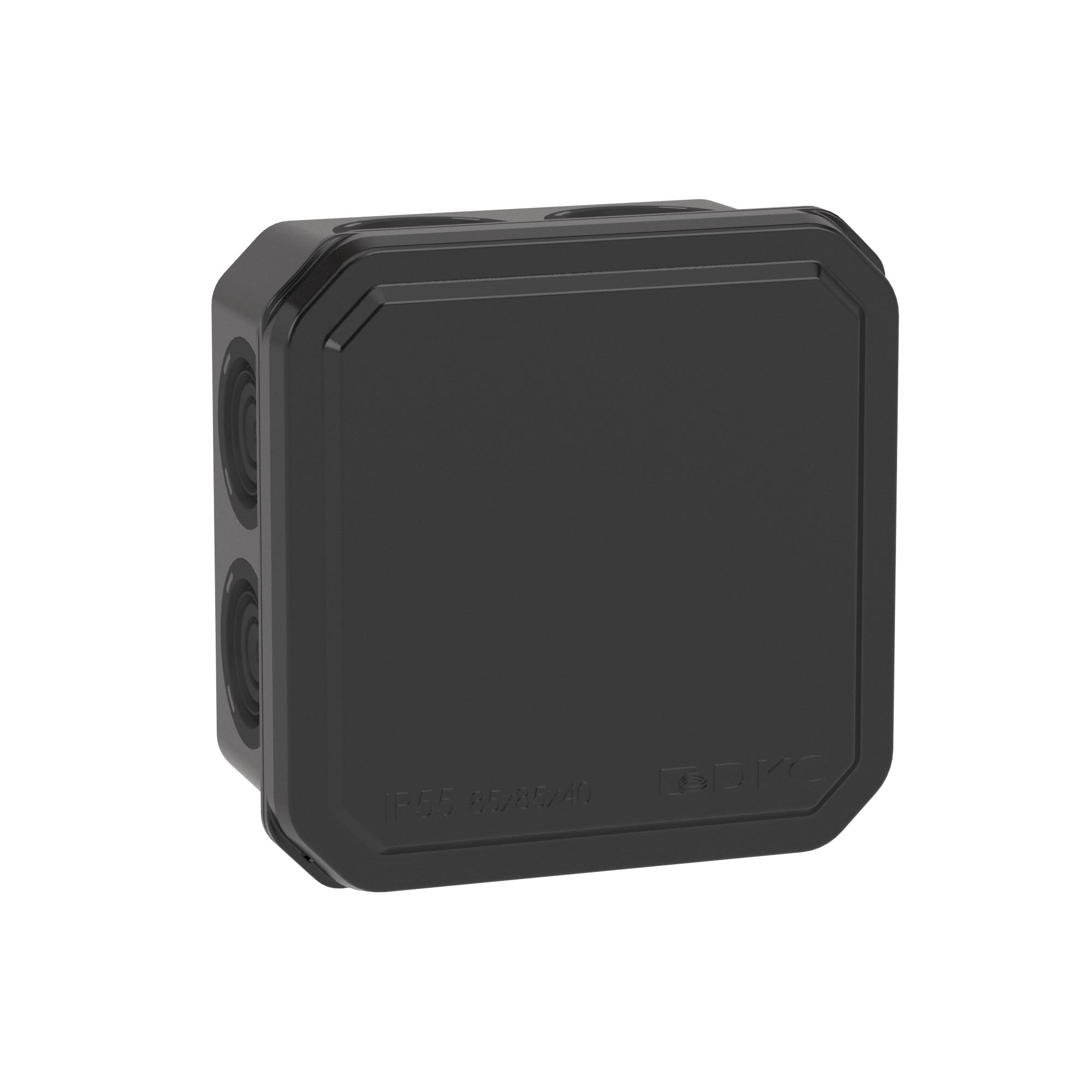

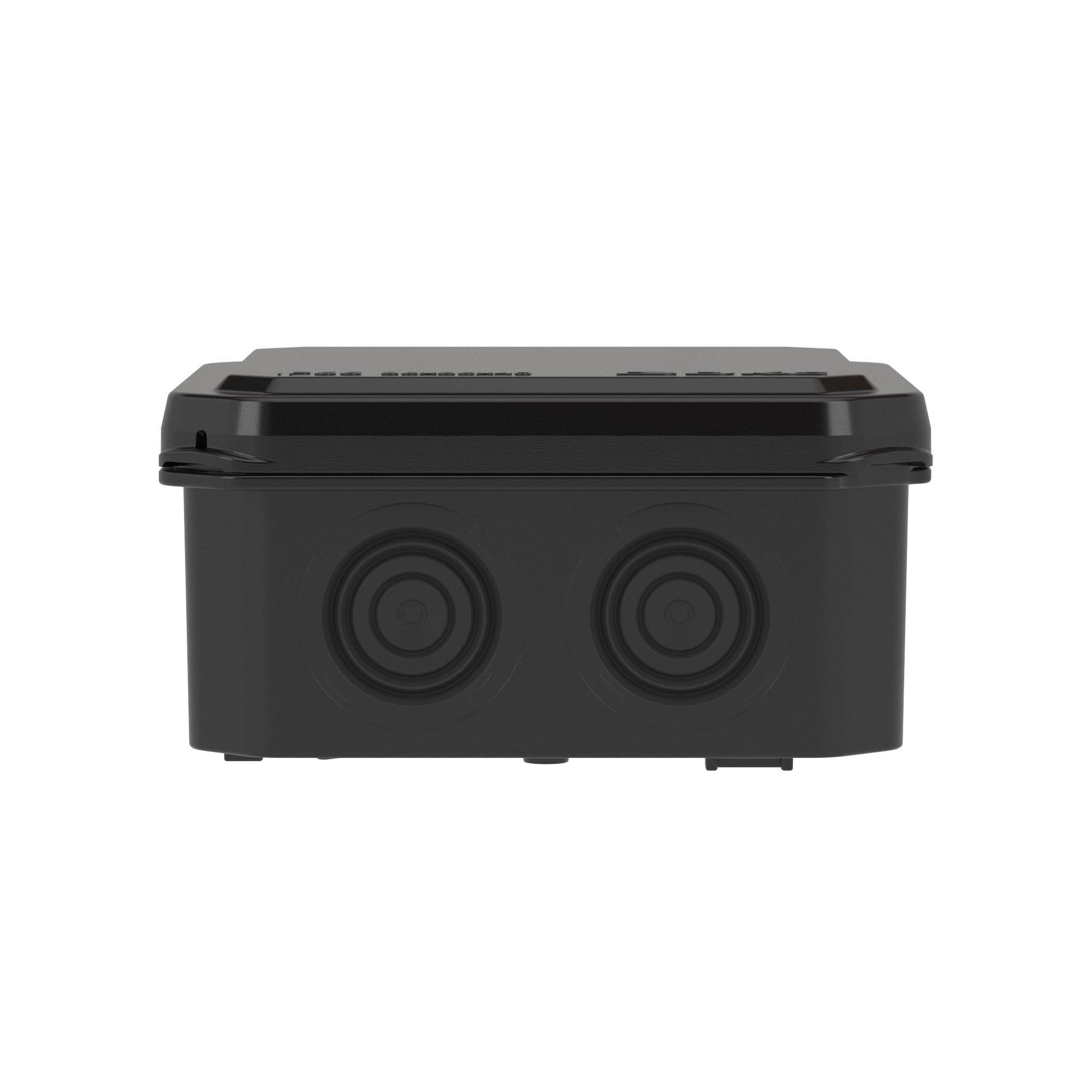

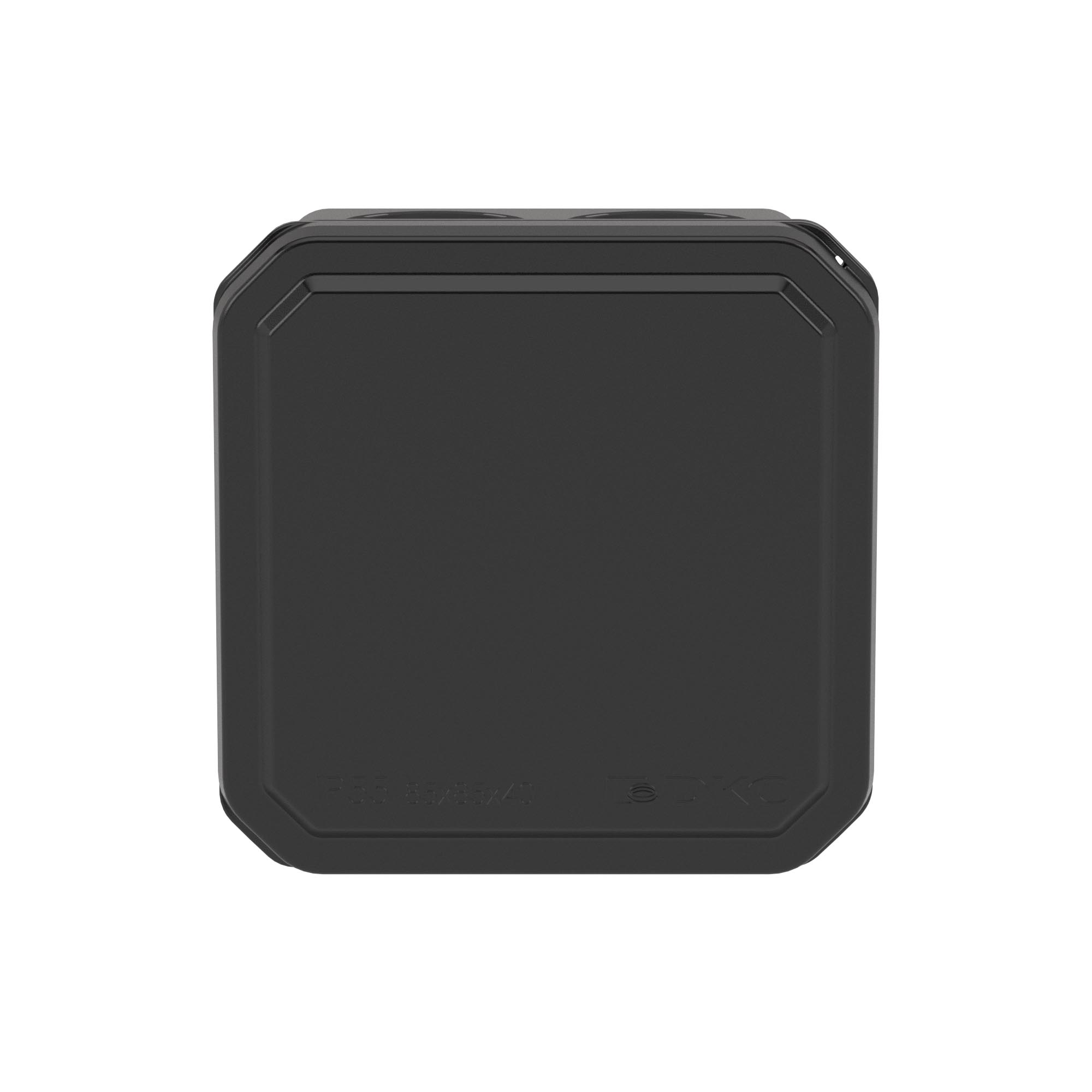

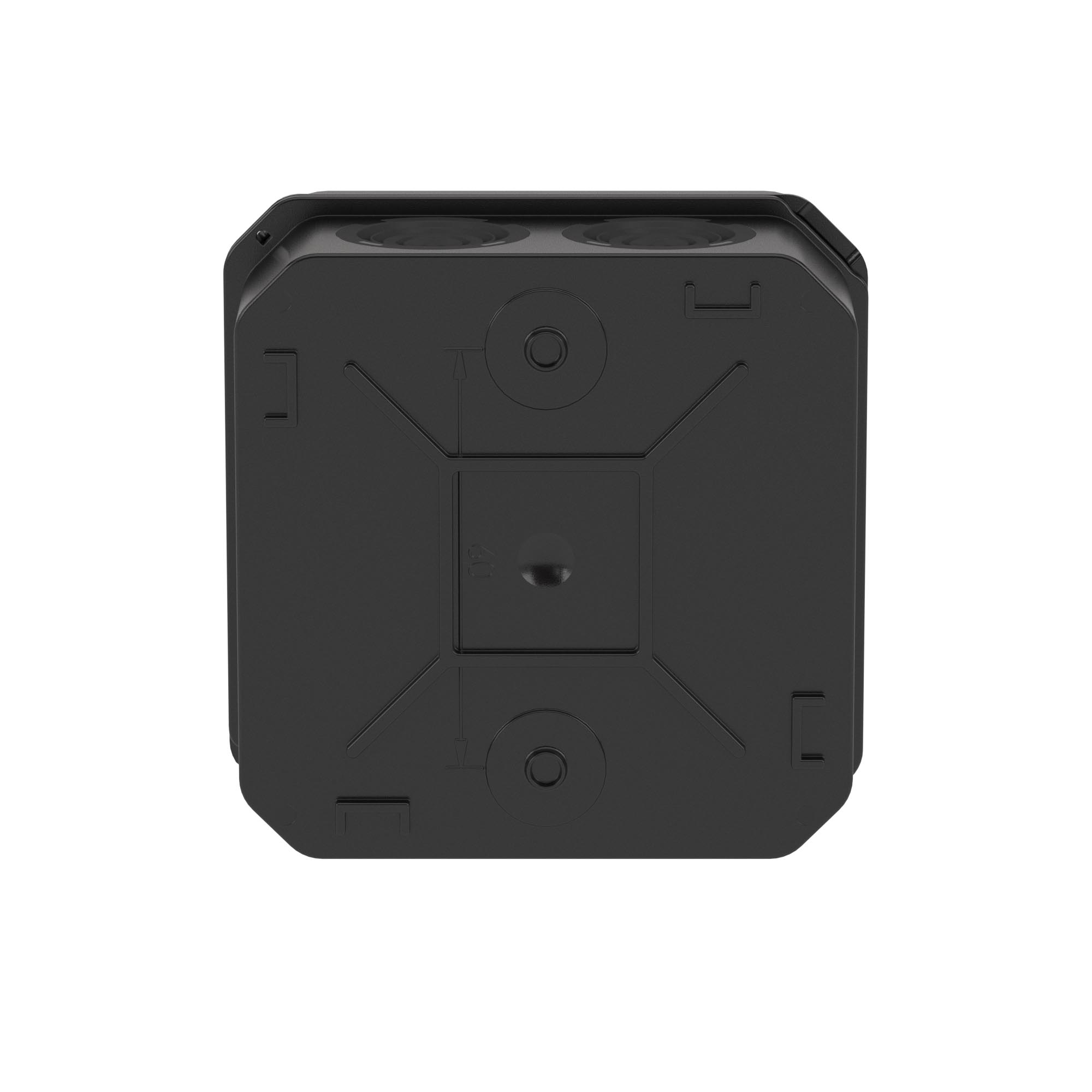

Junction box with 8+2 cable inputs Ø 20/20 mm, IP55, 85х85х40 mm, blackcolor
Code:
53785B
Code:
53785B
| Mounting method | Wall-/ceiling mounting |
| Colour | Black |
| Width, mm | 85 |
| Halogen free | Yes |
| Depth, mm | 40 |
| Shape | Square |
| Surface protection | Untreated |
| Equipped with | None |
| Length, mm | 85 |
| Sealable | No |
| Material | Plastic |
| Cover attachment | Snapped on |
| Weatherproof | Yes |
| Degree of protection (IP) | IP55 |
| Cover model | Mounting cover |
| Transparent cover | No |
| Mounting in the soil | No |
| Mounting under water | No |
| Number of inlets | 10 |
| Type of housing feed-through | Seal membrane |
| Color | Black |
| Height | 94 mm |
| Width | 94 mm |
| Depth | 48 mm |
| Temperature of mounting, °C | -5°С ... +60°С |
| Temperature of operation, °C | from -25°С to +60°С |
| Ingress Protection rating, IP | IP55 |
| 72 мм | 85 mm |
| 72 мм | 85 mm |
| 10 мм | 40 mm |
| Product type | Junction box with 8+2 cable inputs |
| ТУ 2248-012-47022248-2009 | Technical specifications 3464-028-47022248-2011 |
| 3 года | 3 years |
