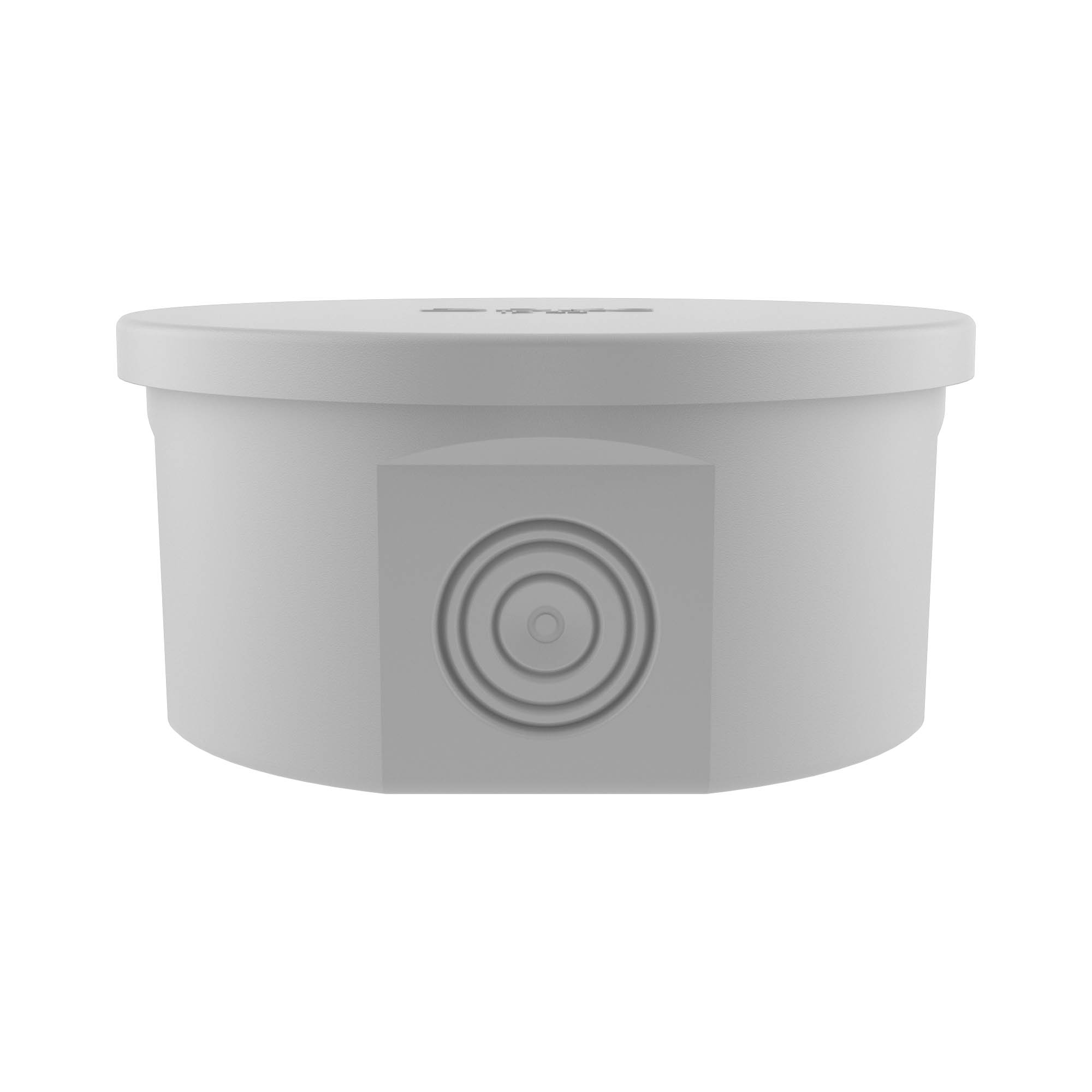

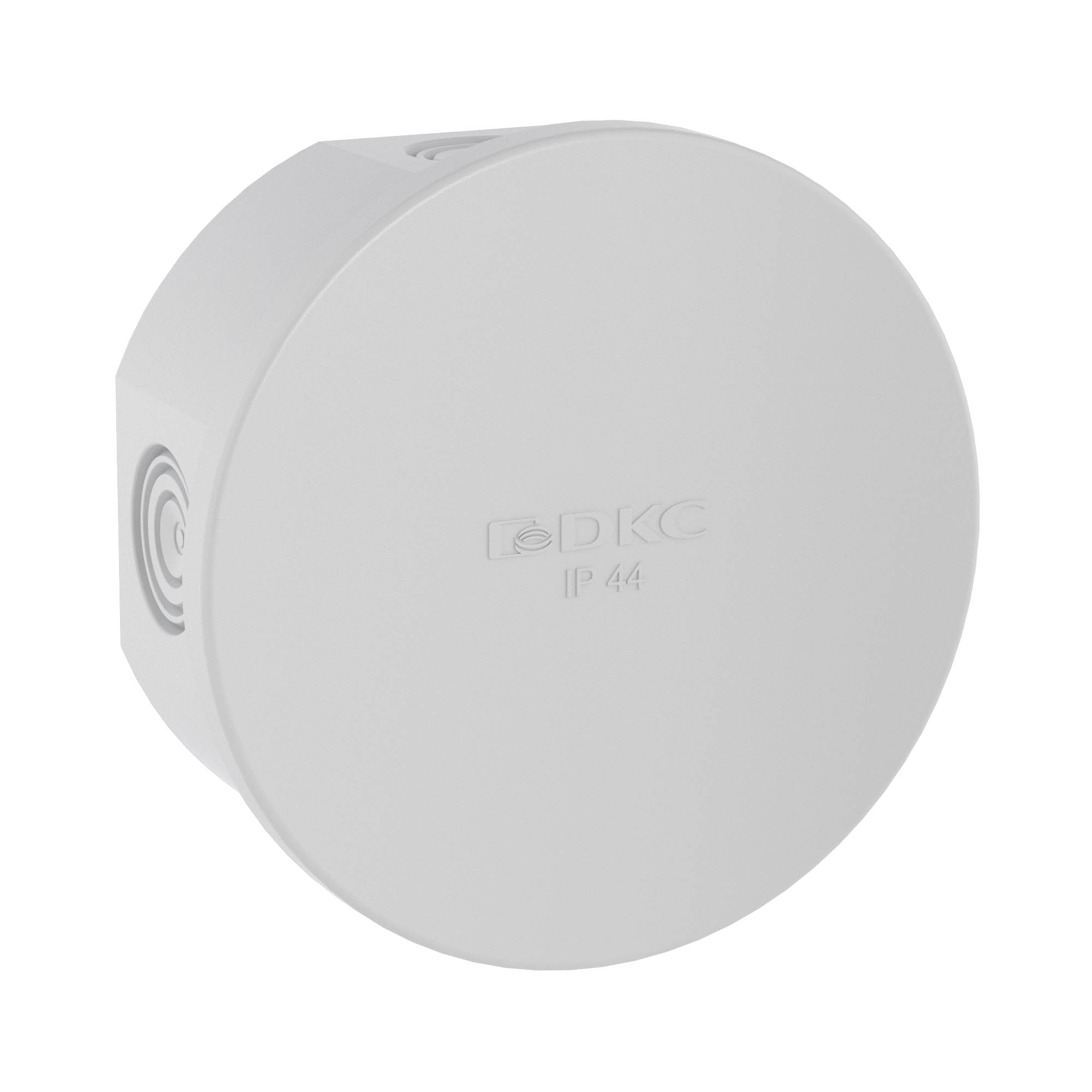

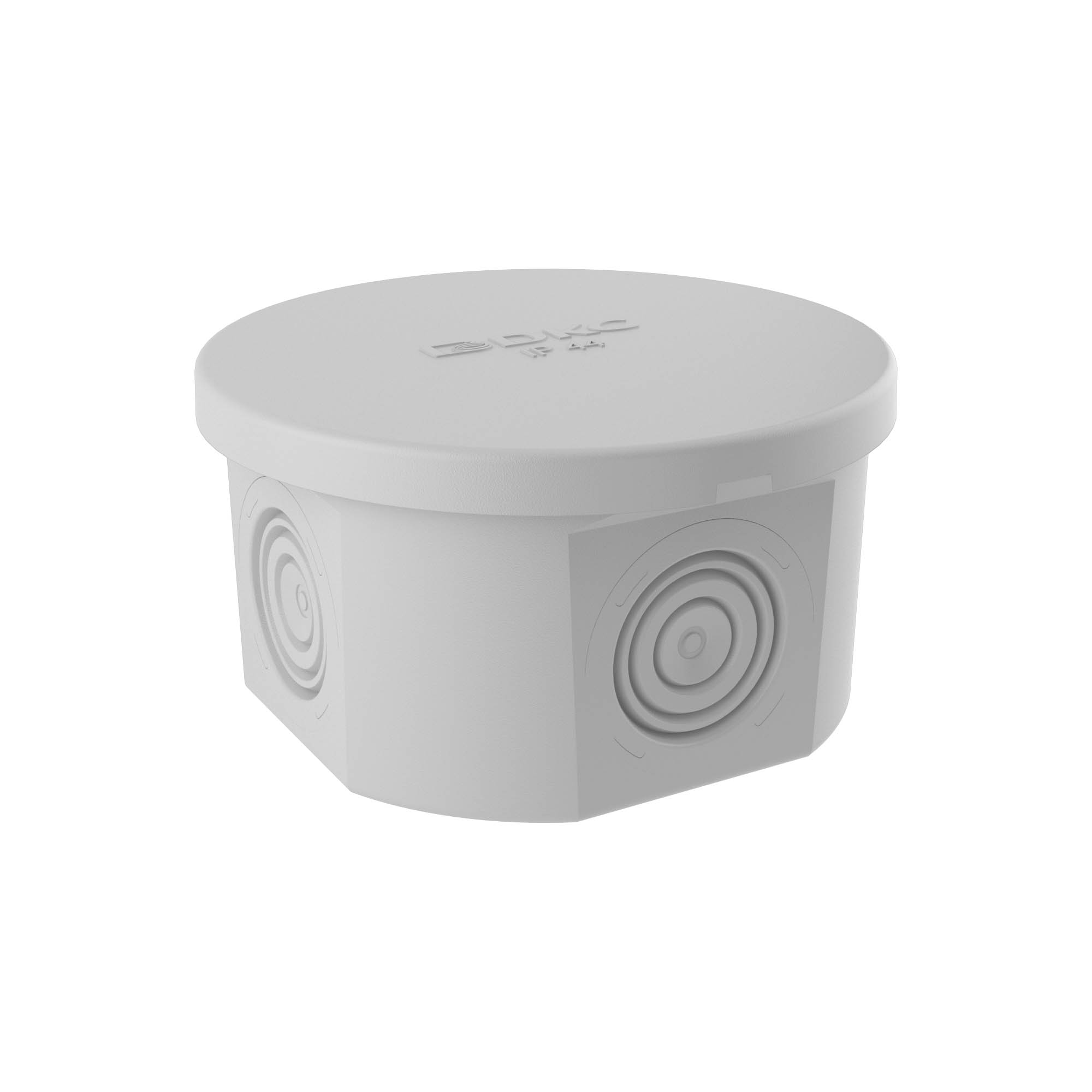

Junction box with 4 cable inputs Ø 20 mm, IP44, Ø 80х40 mm (retail packaging)
Code:
53600R
Code:
53600R
| Colour | Grey |
| Width, mm | 80 |
| Depth, mm | 43 |
| Surface protection | Untreated |
| Diameter, mm | 88 |
| Length, mm | 80 |
| Sealable | Yes |
| Circuit integrity | None |
| Material | Plastic |
| Number of inlets | 4 |
| Explosion-tested version | Yes |
| Cover attachment | Snapped on |
| With screening | Yes |
| Degree of protection (IP) | IP44 |
| Inlet from the rear | Yes |
| For Ex-zone gas | None |
| Tackable | Yes |
| For Ex-Zone dust | None |
| Shape | Round |
| For tube diameter | 20 mm |
| Type of housing feed-through | Seal membrane |
| Equipped with | None |
| Color | gray |
| -5°С ... +60°С | -5°С …+60°С |
| Degree of protection | IP44 |
| от -25°С до +60°С | -25°С …+60°С |
| 10 мм | 40 mm |
| Depth | 43 mm |
| Diameter (nominal) | 80 mm |
| Product type | Junction box with cable inputs |
| ТУ 2248-012-47022248-2009 | Technical specifications 3464-028-47022248-2011 |
| 3 года | 3 years |
| Climate version | У2 |
