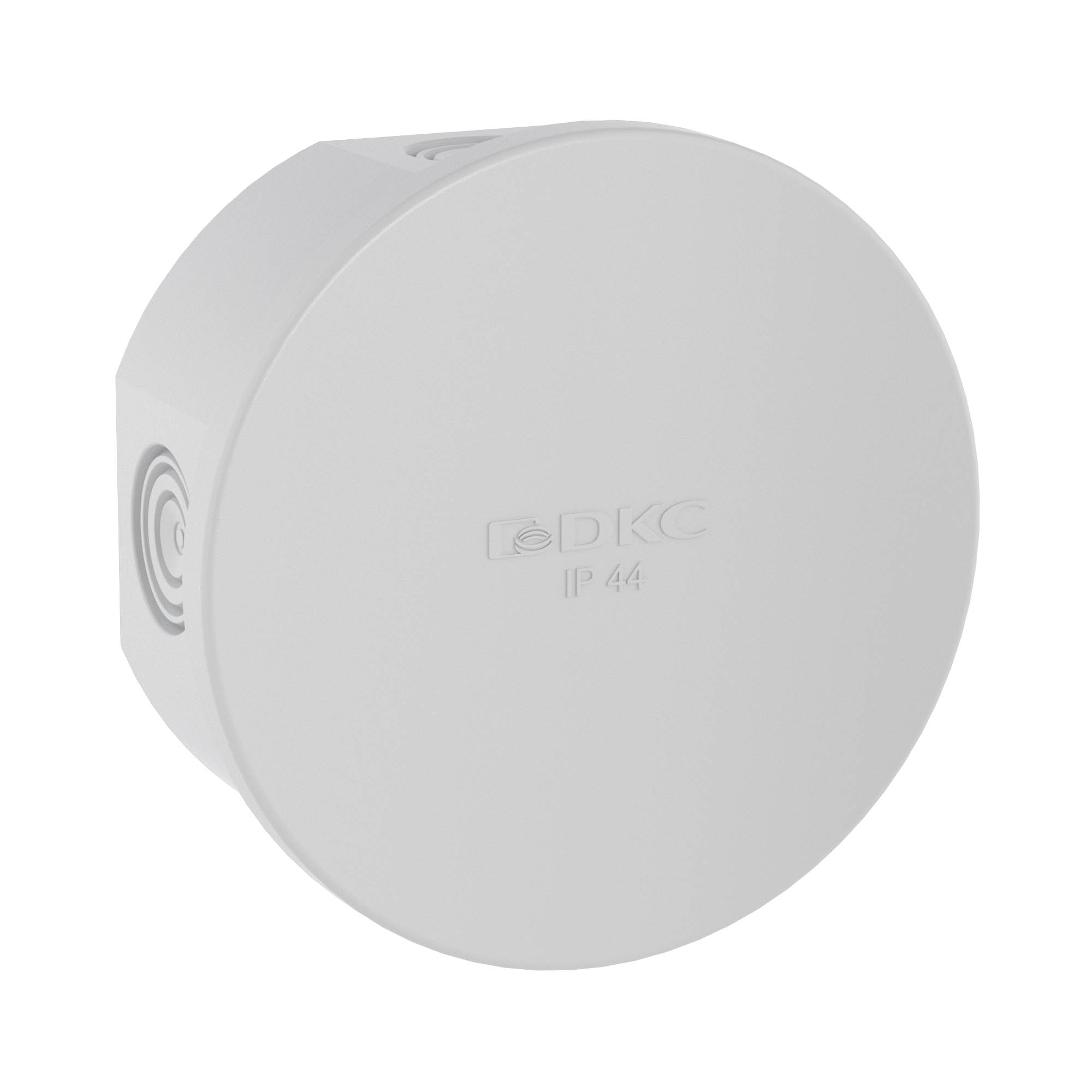

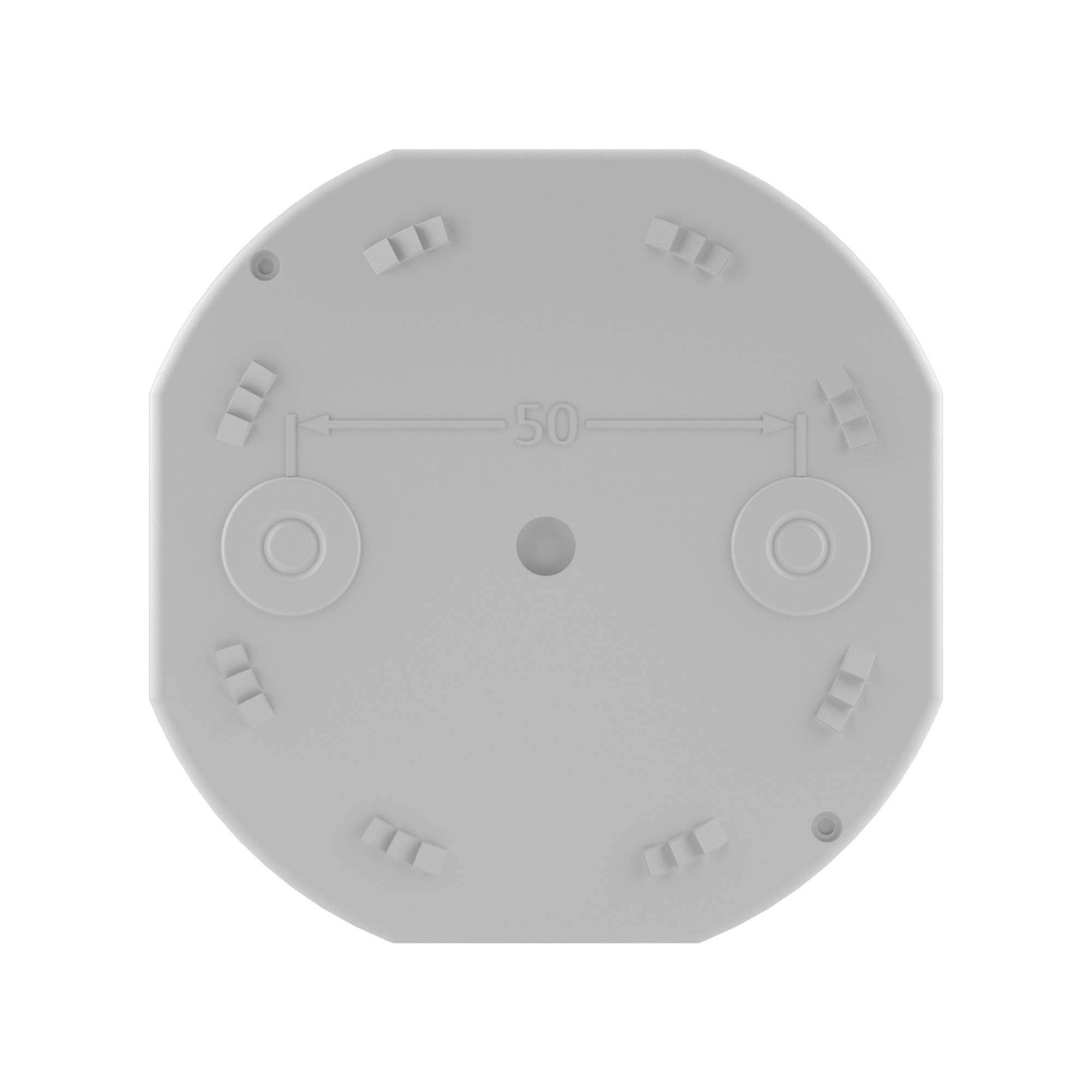

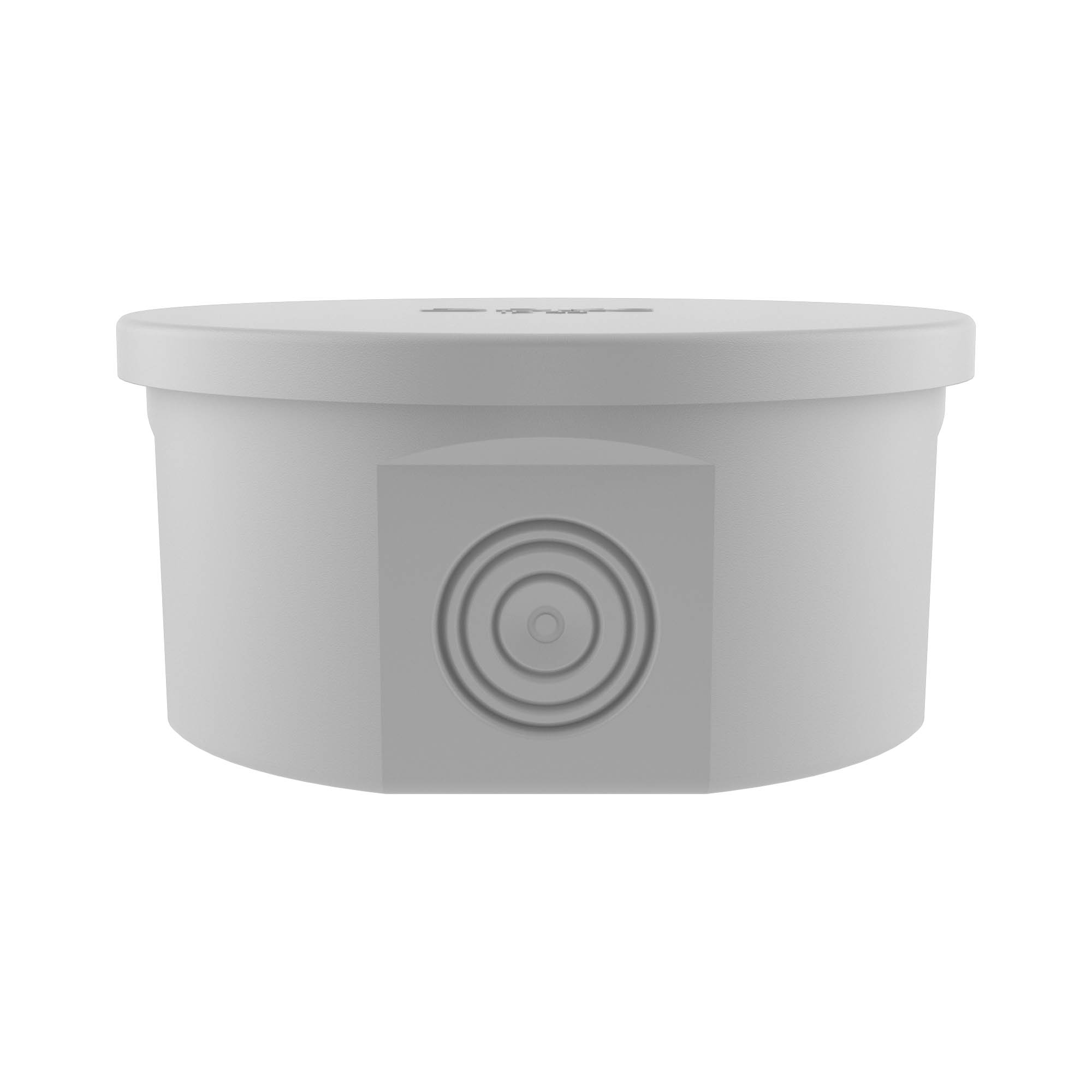

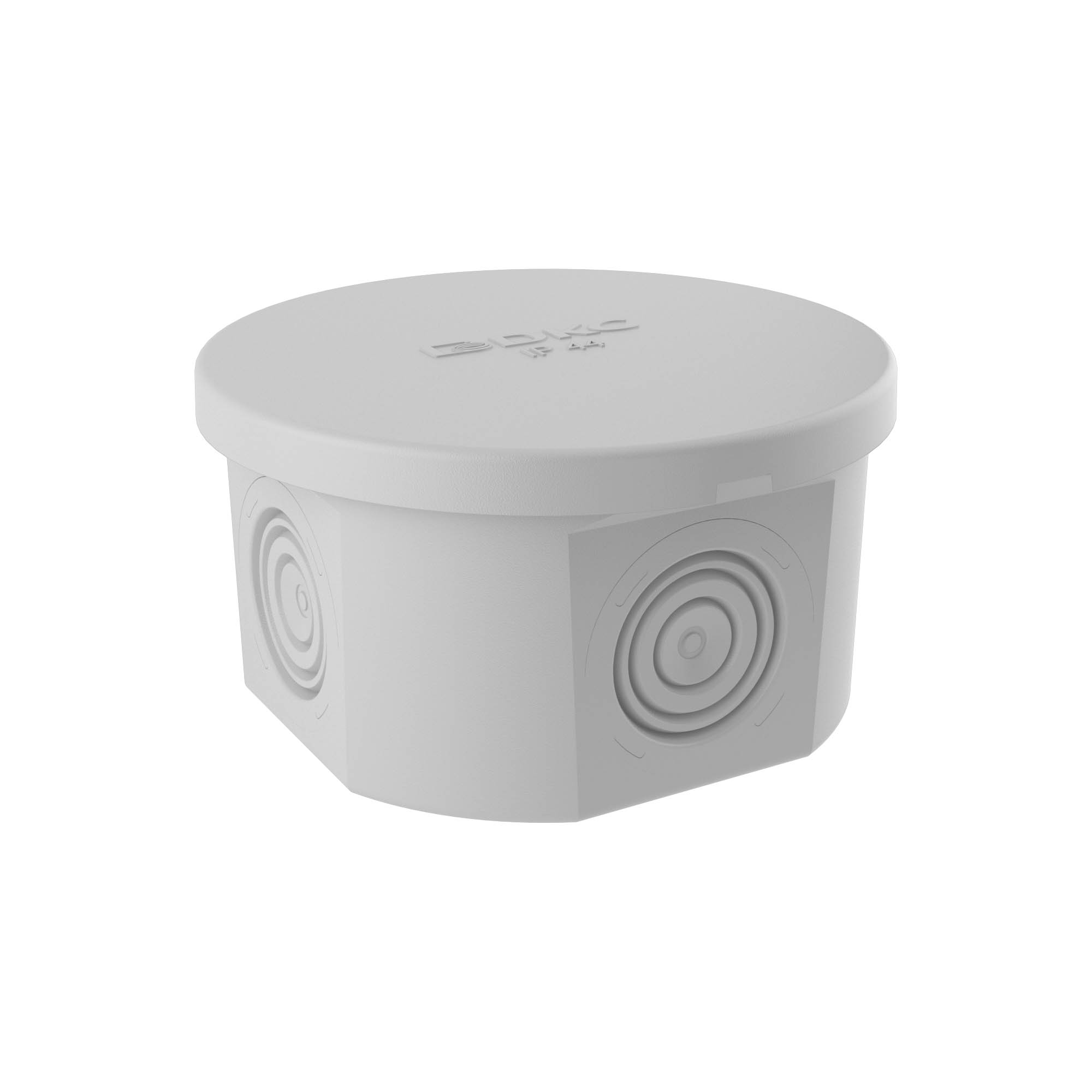

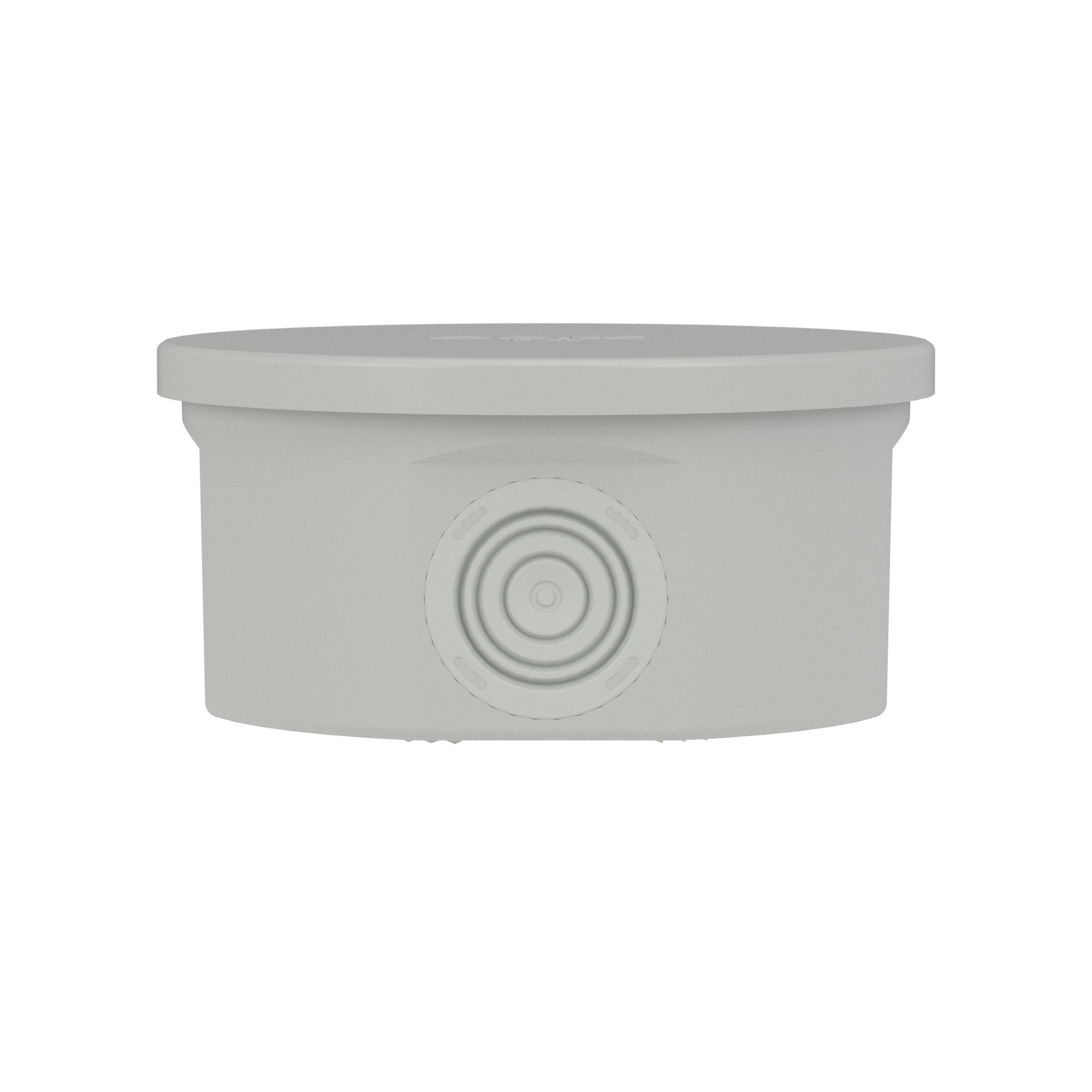

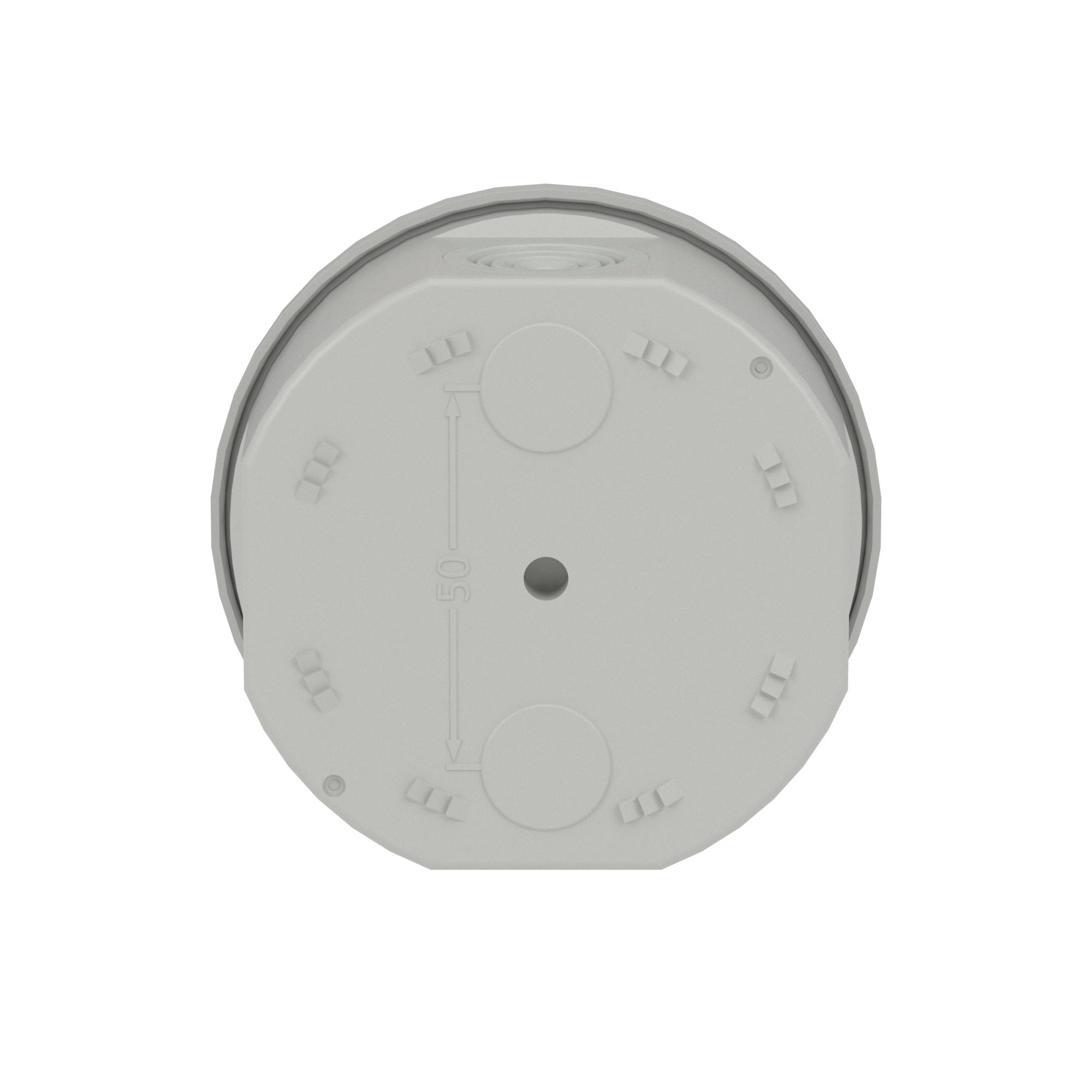

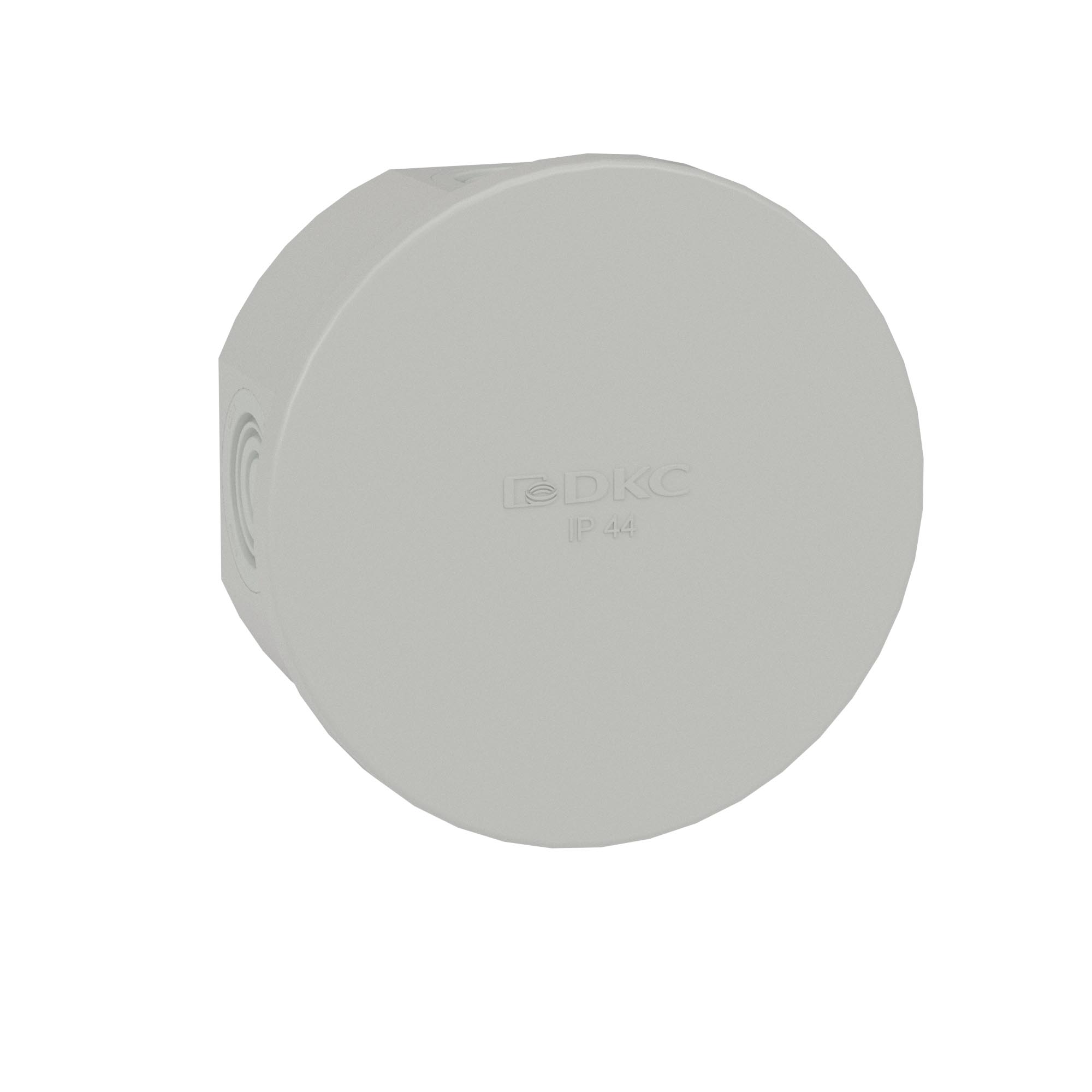

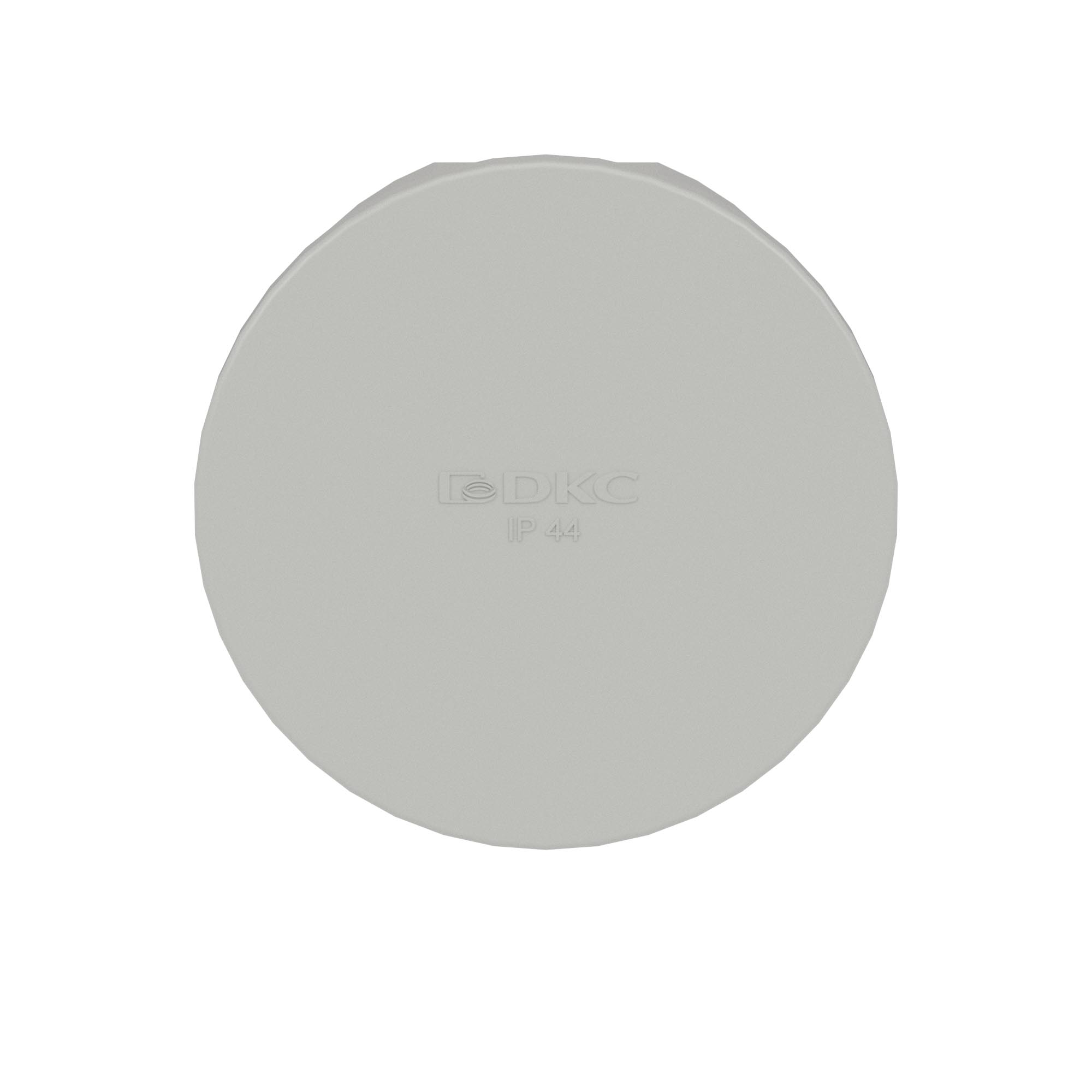

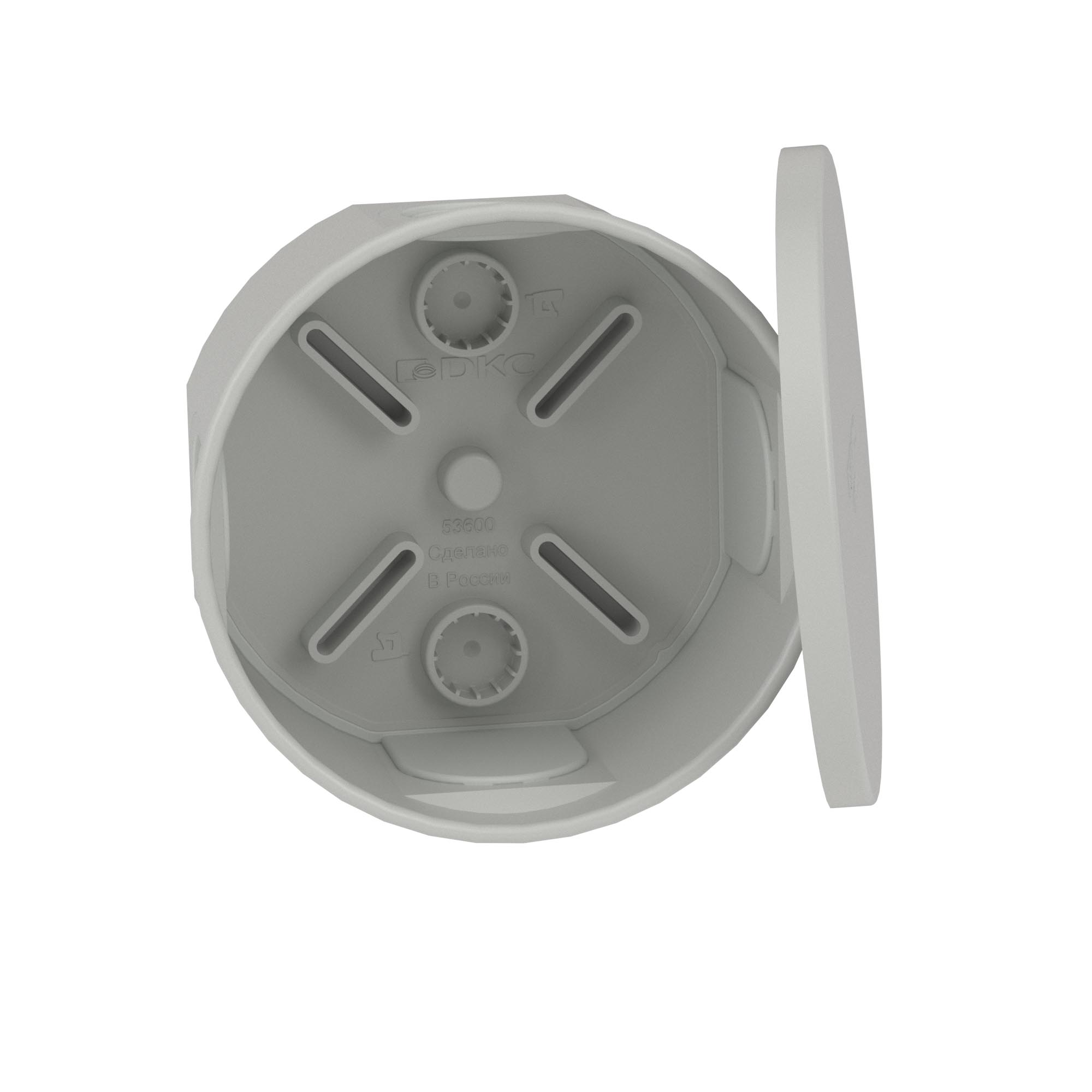

Junction box with 4 cable inputs Ø 20 mm, IP44, Ø 80х40 mm

Code: 53600

Junction box with 4 cable inputs Ø 20 mm, IP44, Ø 80х40 mm

Code: 53600
Colour Grey
Width, mm 80
Depth, mm 43
Surface protection Untreated
Diameter, mm 88
Length, mm 80
Sealable Yes
Circuit integrity None
Material Plastic
Number of inlets 4
Explosion-tested version Yes
Cover attachment Snapped on
With screening Yes
Degree of protection (IP) IP44
Inlet from the rear Yes
For Ex-zone gas None
Tackable Yes
For Ex-Zone dust None
Shape Round
For tube diameter 20 mm
Type of housing feed-through Seal membrane
Equipped with None
Color gray
-5°С ... +60°С -5°С …+60°С
Degree of protection IP44
от -25°С до +60°С -25°С …+60°С
10 мм 40 mm
Depth 43 mm
Diameter (nominal) 80 mm
Product type Junction box with cable inputs
ТУ 2248-012-47022248-2009 Technical specifications 3464-028-47022248-2011
3 года 3 years
Climate version У2
